Overview
LF DriverPAW series
Visaton

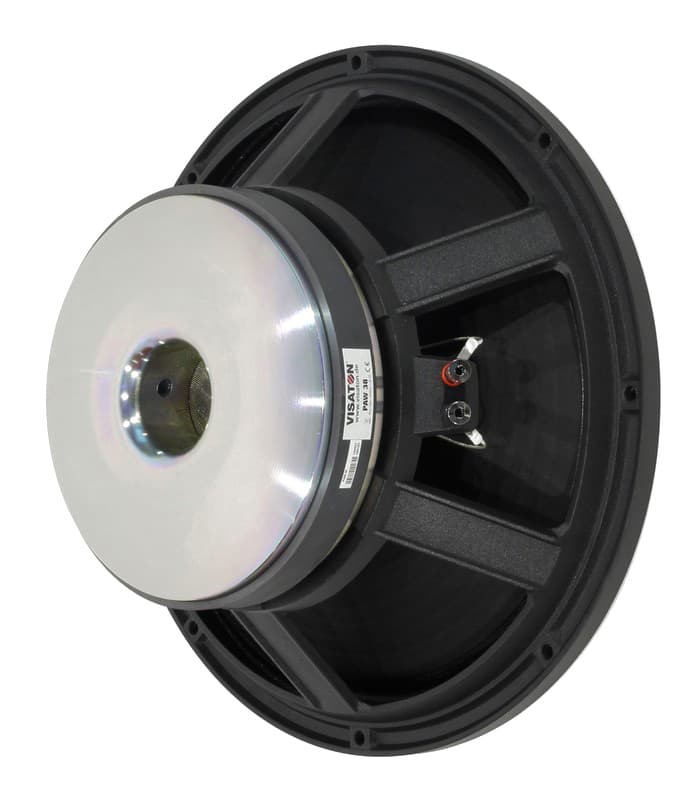

Visaton PAW 38 - 8 OHM
Visaton PAW 38 - 8 OHM is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 36Hz, Qts 0.29, Vas 195L, Xmax 12mm, sensitivity 96.7dB, plus 1078cm³ Vd and 116 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £133.80.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
96.7dB
92.0dBmanufacturer; using T/S-derived value (4.7dB delta).
EBP
116
Vented alignment
Vd
1078cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence455 selected pixels of 613
T/S Parameters
Valid
Fs36Hz
Qts0.29
Qes0.31
Qms9.0
Vas195.0L
Re7.2Ω
Le2.60mH
BL25.0Tm
Sd898cm²
Mms125g
Xmax12.0mm
SPL97dB
Power700W
Impedance8Ω
F High3700Hz
Voice Coil100mm
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
1 vendorthomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£222.00
inc VAT
In stock
Best current price
Updated 11 Sept 2026
partsexpress
£133.80
Avg £177.90£44.10 below avg (-24.8%)
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.5kg
Diameter380.0mm
Cutout Diameter358.0mm
