LF DriverFRS series
Visaton

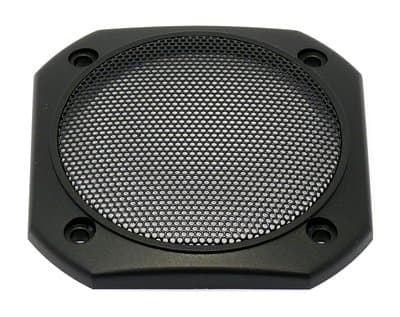

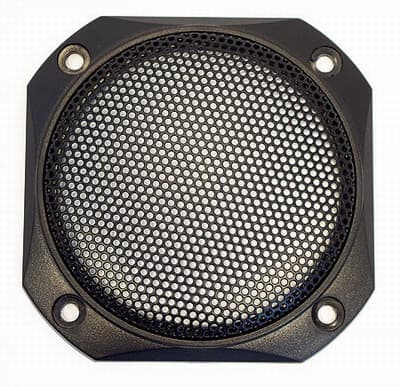

Visaton FRS 8 M - 8 Ohm
Visaton FRS 8 M - 8 Ohm is a 3.5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 125Hz, Qts 0.49, Vas 1.1L, Xmax 2.5mm, sensitivity 87.7dB, plus 7cm³ Vd and 216 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3.5"
Impedance
8Ω
RMS Power
30W
Sensitivity
87.7dB
EBP
216
Vented alignment
Vd
7cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence769 selected pixels of 1,270
T/S Parameters
Valid
Fs125Hz
Qts0.49
Qes0.58
Qms3.2
Vas1.1L
Re7.2Ω
Le0.30mH
BL4.0Tm
Sd29cm²
Mms2g
Xmax2.5mm
SPL88dB
Power30W
Impedance8Ω
F Low100Hz
F High20000Hz
Voice Coil20mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter80.0mm
Cutout Diameter75.0mm
