LF DriverSPH series
Monacor

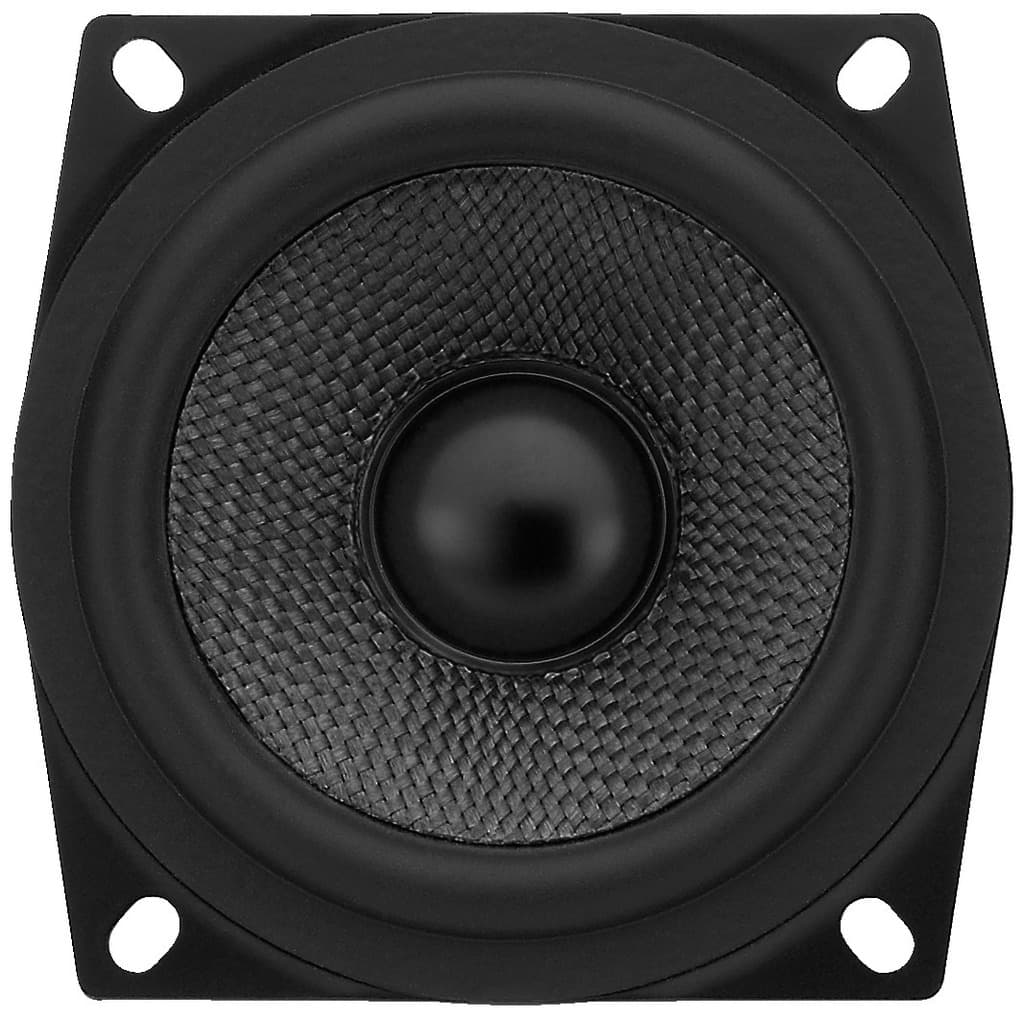

Monacor SPH-30X/4SW
Monacor SPH-30X/4SW is a 3" 4 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 105Hz, Qts 0.42, Vas 1.1L, Xmax 2mm, sensitivity 87.2dB, plus 6cm³ Vd and 269 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
4Ω
RMS Power
20W
Sensitivity
87.2dB
EBP
269
Vented alignment
Vd
6cm³
T/S Parameters
Valid
Fs105Hz
Qts0.42
Qes0.39
Qms9.3
Vas1.1L
Re3.5Ω
Le0.50mH
BL3.9Tm
Sd30cm²
Mms3g
Xmax2.0mm
SPL87dB
Power20W
Impedance4Ω
F Low3Hz
F High17000Hz
Voice Coil21mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

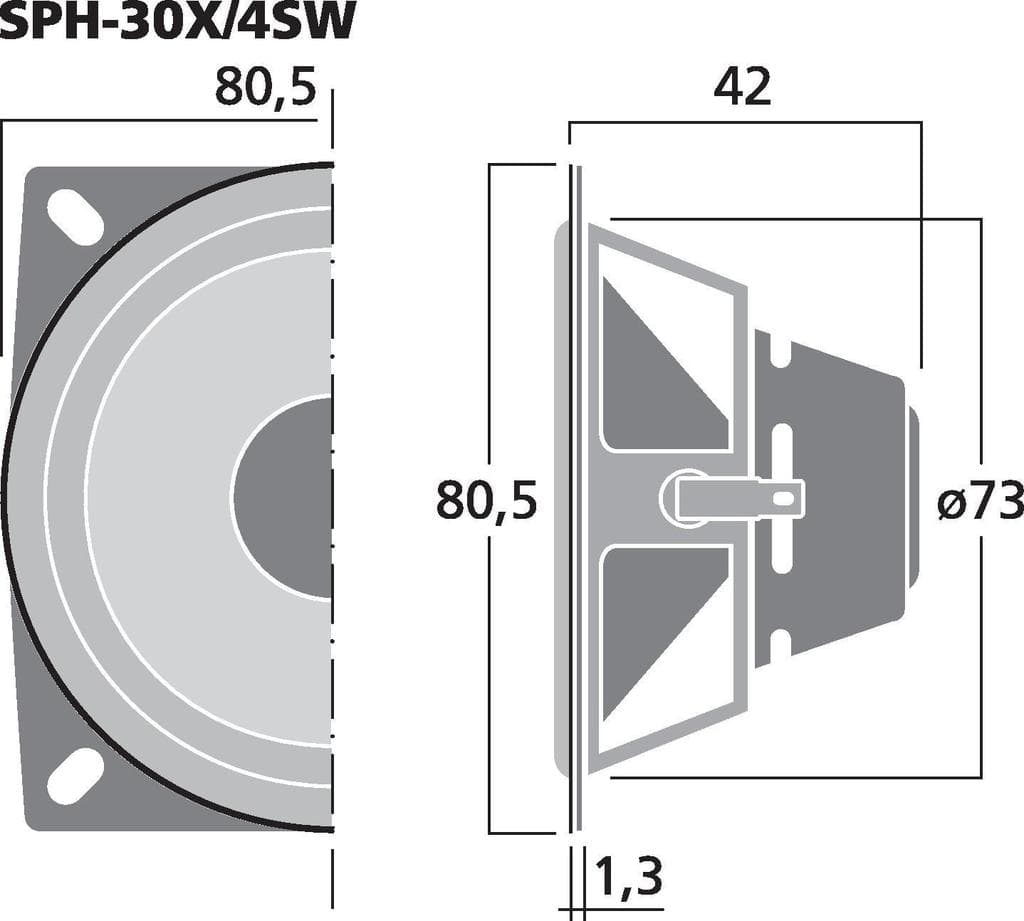

Dimensions & Physical
Weight0.1kg
Diameter80.5mm
Overall Depth42.0mm
Cutout Diameter73.0mm
