Overview
LF DriverWAF154 series
Lavoce

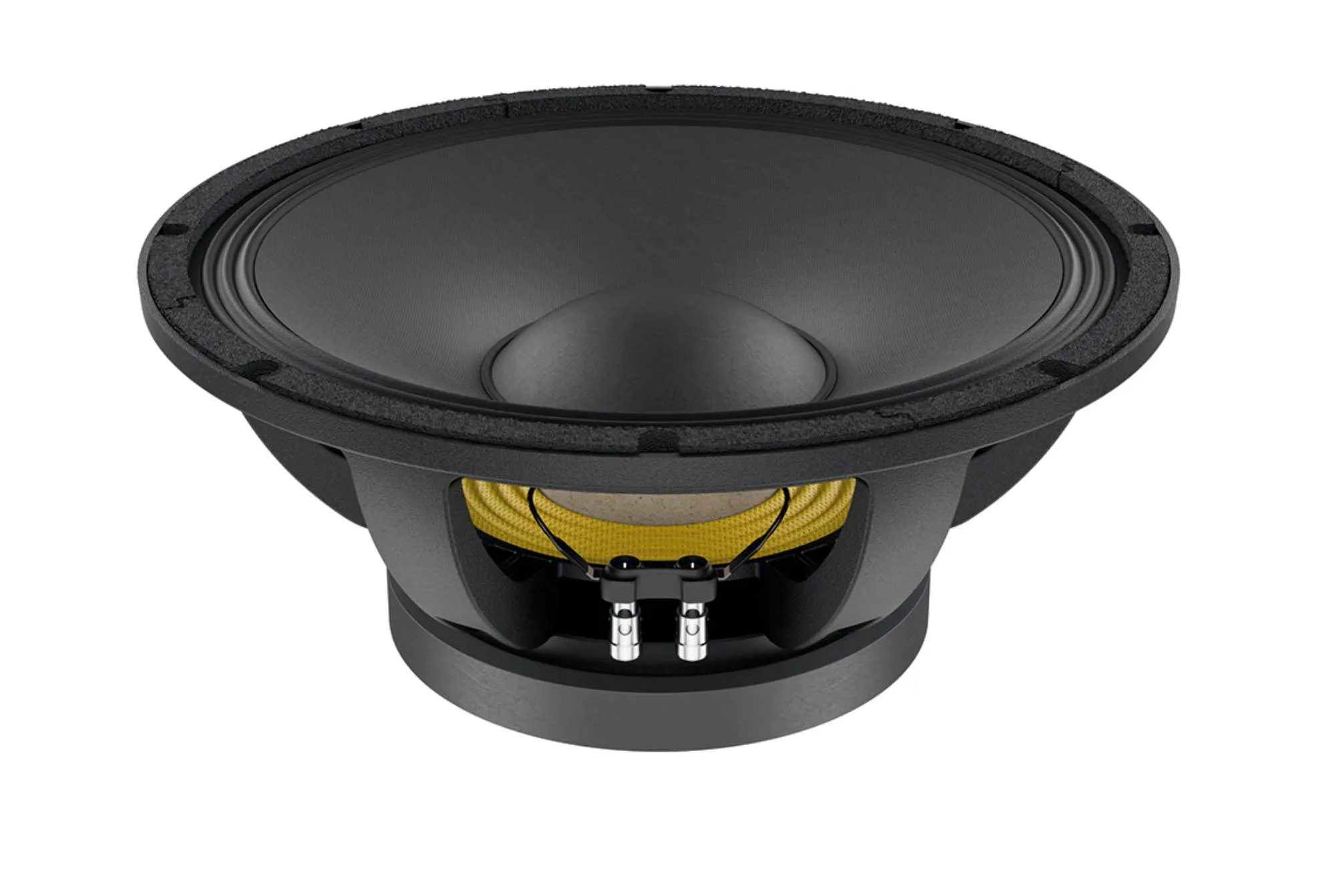

Lavoce WAF154.03
Lavoce WAF154.03 is a 15" 8 ohm LF driver rated at 850W RMS. The validated T/S data includes Fs 40Hz, Qts 0.26, Vas 166.6L, Xmax 5.2mm, sensitivity 97.8dB, plus 445cm³ Vd and 143 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £183.53.
Size
15"
Impedance
8Ω
RMS Power
850W
Sensitivity
97.8dB
99.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
143
Vented alignment
Vd
445cm³
T/S Parameters
Valid
Fs40Hz
Qts0.26
Qes0.28
Qms5.3
Vas166.6L
Re6.2Ω
Le0.17mH
BL23.5Tm
Sd855cm²
Mms98g
Xmax5.2mm
SPL98dB
Power850W
Impedance8Ω
Min Impedance7.8Ω
F Low40Hz
F High3000Hz
Voice Coil100mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 13 Sept 2026
bluearan
£183.53
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.3kg
