FaitalPRO 8FE300 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /FaitalPRO
  4. /8FE300

Media

FaitalPRO 8FE300 8 inch 16 ohm loudspeaker driver view 1
FaitalPRO 8FE300 8 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

LF DriverFE series
FaitalPRO

FaitalPRO 8FE300

FaitalPRO 8FE300 is a 8" 16 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 70Hz, Qts 0.66, Vas 14.4L, Xmax 5.5mm, sensitivity 90.5dB, plus 123cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
8"
Impedance
16Ω
RMS Power
250W
Sensitivity
90.5dB
95.0dBmanufacturer; using T/S-derived value (4.5dB delta).
EBP
100
Either alignment
Vd
123cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

3 curves
10390776451501002005001k2k5k10kHzdB0 degrees45 degrees
0 degrees170 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • 0 degrees

    Frequency response

    Trace datasheet-response-trace-poc/v2
    170 plotted pointsSource file SHA-256 6257b7888485…Medium confidence641 selected pixels of 1,115
    Manufacturer datasheet, page 1

  • 45 degrees

    Frequency response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 6257b7888485…Medium confidence1,371 selected pixels of 1,625
    Manufacturer datasheet, page 1

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 6257b7888485…Medium confidence1,393 selected pixels of 1,393
    Manufacturer datasheet, page 1

T/S Parameters

Valid
Canonical
Fs70Hz
Qts0.66
Qes0.70
Qms12.6
Vas14.4L
Re11.8Ω
Le0.82mH
BL13.6Tm
Sd223cm²
Mms25g
Xmax5.5mm
SPL91dB
Power250W
Impedance16Ω
F Low80Hz
F High5000Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight3.0kg
Diameter209.0mm
Overall Depth95.0mm
Cutout Diameter183.0mm
Bolt Circle Diameter197.5mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
FaitalPRO 8FE300 8 inch 16 ohm loudspeaker driver similar-driver reference
Reference
FaitalPRO
8FE300
8"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Tang Band W8-2282 8 inch 4 ohm loudspeaker driver similar driver
79%
Similarity
Tang Band
W8-2282
8"
Xmax5mm-9%
Qts0.660%
BL10.8Tm-21%
Vas12.9L-10%
Qes0.75+7%
FaitalPRO W8N8-150 8 inch 8 ohm loudspeaker driver similar driver
67%
Similarity
£55.00
FaitalPRO
W8N8-150
8"
Xmax5.5mm0%
Qts0.52-21%
BL9.9Tm-27%
Vas14.4L0%
Qes0.59-16%
Image unavailable
66%
Similarity
PHL Audio
2001
8"
Xmax5.5mm0%
Qts0.53-20%
BL9.5Tm-30%
Vas13.8L-4%
Qes0.61-13%
Image unavailable
66%
Similarity
PHL Audio
2001NDU
8"
Xmax5.5mm0%
Qts0.53-20%
BL9.5Tm-30%
Vas13.8L-4%
Qes0.61-13%
Beyma 8CMV2 8 inch 8 ohm loudspeaker driver similar driver
61%
Similarity
£44.94
Beyma
8CMV2
8"
Xmax5.7mm+3%
Qts0.52-21%
BL9.6Tm-29%
Vas14.6L+1%
Qes0.55-21%
Beyma 8CX300FE 8 inch 8 ohm loudspeaker driver similar driver
59%
Similarity
Beyma
8CX300FE
8"
Xmax6mm+9%
Qts0.55-17%
BL9.6Tm-29%
Vas10.8L-25%
Qes0.63-10%
SB Audience BIANCO-8MW125 8 inch 8 ohm loudspeaker driver similar driver
56%
Similarity
£37.54
SB Audience
BIANCO-8MW125
8"
Xmax6.4mm+16%
Qts0.55-17%
BL11.3Tm-17%
Vas10.1L-30%
Qes0.57-19%
B&C 8CL51 8 inch 16 ohm loudspeaker driver similar driver
53%
Similarity
B&C
8CL51
8"
Xmax6mm+9%
Qts0.51-23%
BL16.1Tm+18%
Vas9.5L-34%
Qes0.54-23%
CIARE PM203 8 inch 8 ohm loudspeaker driver similar driver
52%
Similarity
CIARE
PM203
8"
Xmax4.4mm-20%
Qts0.54-18%
BL10.1Tm-26%
Vas10L-31%
Qes0.64-9%
FaitalPRO 8FE400 8 inch 8 ohm loudspeaker driver similar driver
52%
Similarity
£44.69
FaitalPRO
8FE400
8"
Xmax4.8mm-14%
Qts0.53-20%
BL10.5Tm-23%
Vas9.4L-35%
Qes0.58-17%

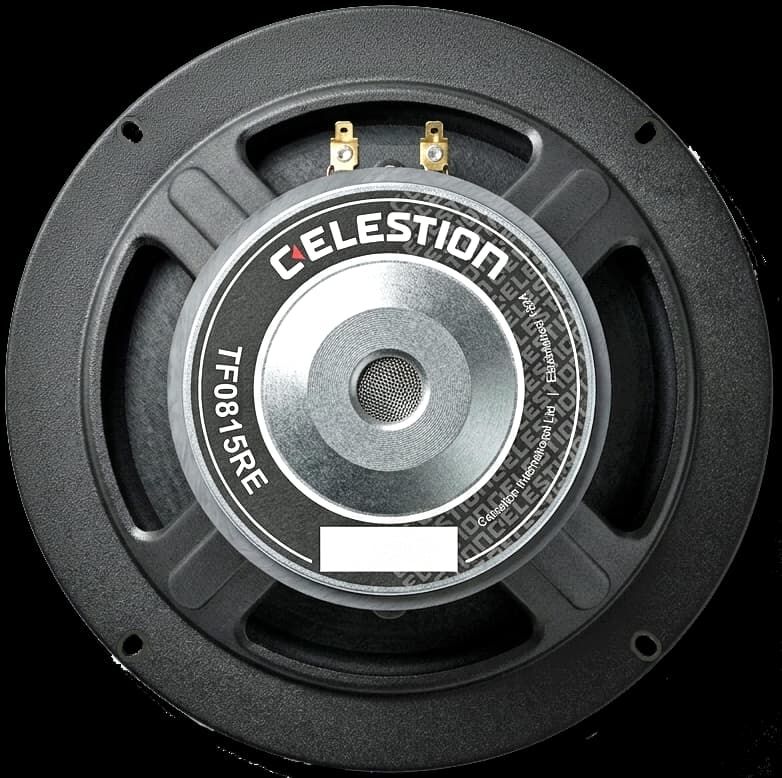

Celestion TF0815RE 8 inch 8 ohm loudspeaker driver similar driver
50%
Similarity
Celestion
TF0815RE
8"
Xmax5.3mm-5%
Qts0.53-19%
BL8.9Tm-35%
Vas22.1L+54%
Qes0.65-7%
GRS 8PT-8 8 inch 8 ohm loudspeaker driver similar driver
50%
Similarity
£24.95
GRS
8PT-8
8"
Xmax6.5mm+18%
Qts0.55-17%
BL10.2Tm-25%
Vas20.1L+40%
Qes0.59-16%
