Overview
LF DriverGA series
Eminence

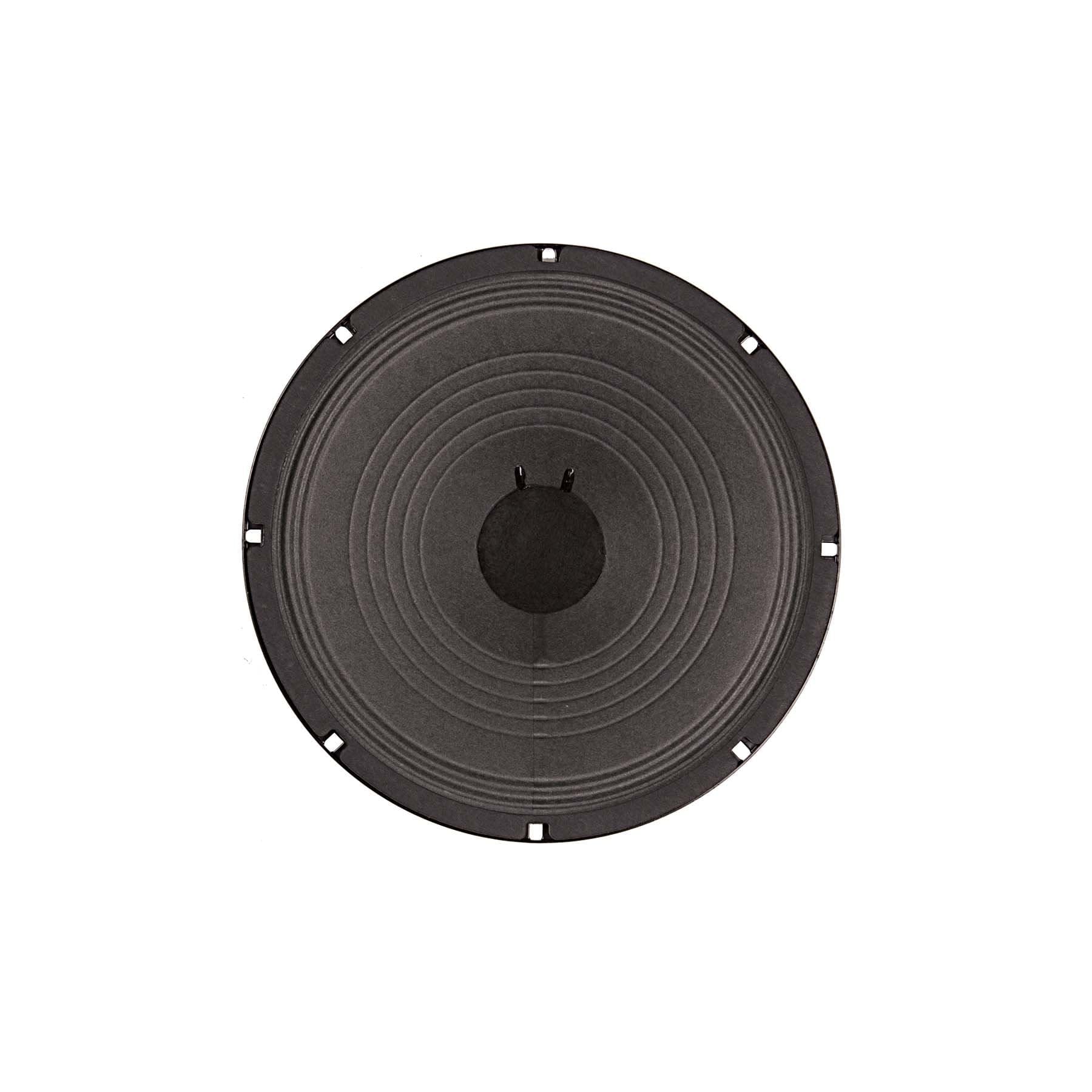

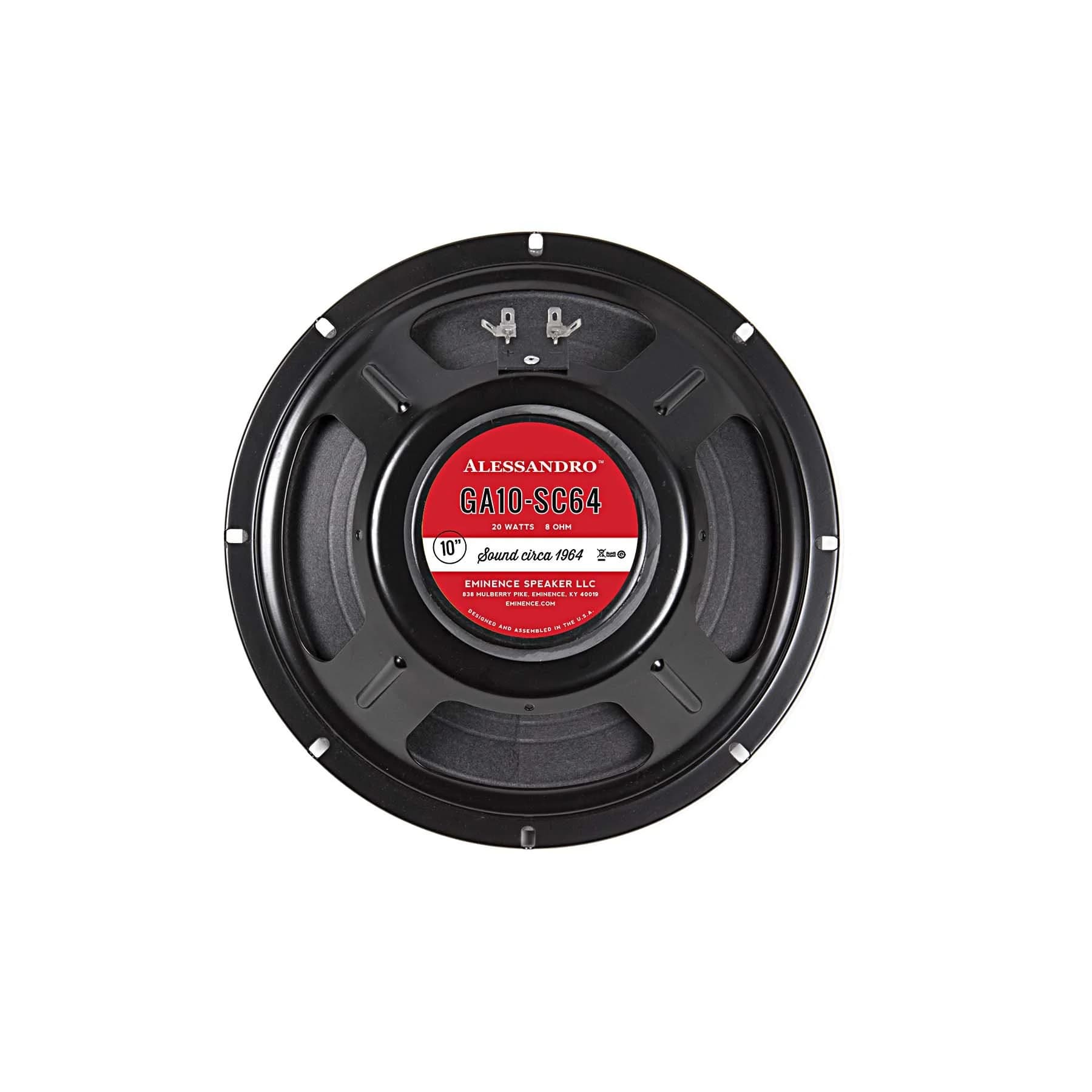

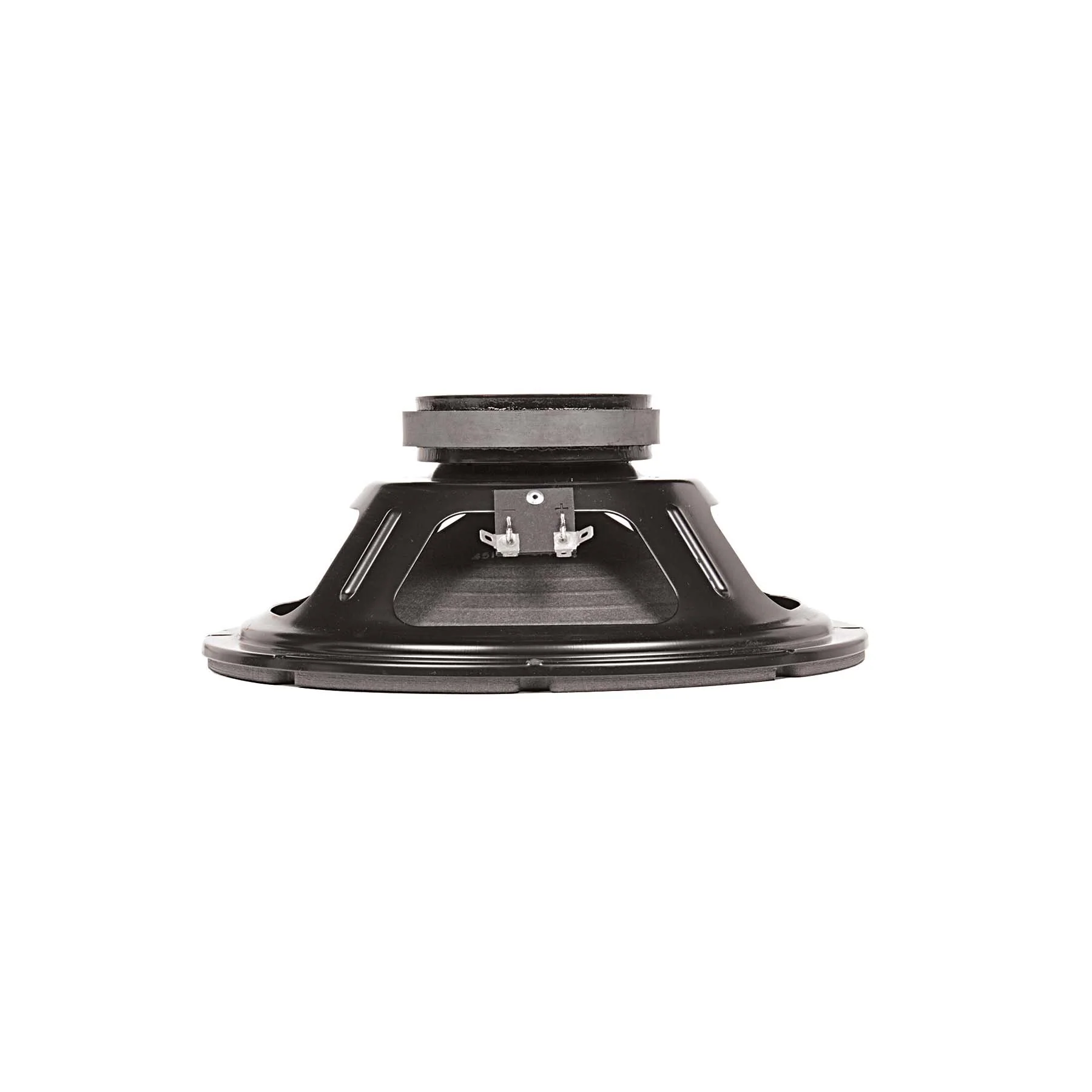

Eminence GA10-SC64
Eminence GA10-SC64 is a 10" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 100Hz, Qts 1.28, Vas 33.5L, Xmax 1.6mm, sensitivity 95.9dB, plus 58cm³ Vd and 72 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
20W
Sensitivity
95.9dB
98.2dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
72
Either alignment
Vd
58cm³
T/S Parameters
Valid
Fs100Hz
Qts1.28
Qes1.38
Qms16.9
Vas33.5L
Re7.6Ω
Le0.48mH
BL7.0Tm
Sd366cm²
Mms14g
Xmax1.6mm
SPL96dB
Power20W
Impedance8Ω
F Low100Hz
F High5500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter256.8mm
Overall Depth99.8mm
Cutout Diameter231.9mm
