Overview
LF Driver
Beyma
Beyma 608CMV28
Beyma 608CMV28 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 75Hz, Qts 0.52, Vas 14.6L, Xmax 5.7mm, sensitivity 92.5dB, plus 125cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
92.5dB
94.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
136
Vented alignment
Vd
125cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence5,188 selected pixels of 6,057 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,206 selected pixels of 3,206
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs75Hz
Qts0.52
Qes0.55
Qms7.7
Vas14.6L
Re5.1Ω
Le0.60mH
BL9.6Tm
Sd220cm²
Mms21g
Xmax5.7mm
SPL93dB
Power250W
Impedance8Ω
F Low80Hz
F High8000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
608CMV28
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
£55.00
FaitalPRO
W8N8-150
8"
Xmax5.5mm-3%
Qts0.520%
BL9.9Tm+3%
Vas14.4L-1%
Qes0.59+7%
80%
Similarity
FaitalPRO
8PR150
8"
Xmax5mm-12%
Qts0.48-8%
BL10.4Tm+8%
Vas16.2L+11%
Qes0.54-2%
80%
Similarity
Beyma
108CX3FE8
8"
Xmax6mm+5%
Qts0.55+6%
BL9.6Tm0%
Vas10.8L-26%
Qes0.63+15%
73%
Similarity
£44.69
FaitalPRO
8FE400
8"
Xmax4.8mm-16%
Qts0.53+2%
BL10.5Tm+9%
Vas9.4L-36%
Qes0.58+5%
71%
Similarity
Dayton Audio
PCS8-4
8"
Xmax5mm-12%
Qts0.49-6%
BL8.4Tm-12%
Vas20.5L+40%
Qes0.56+2%
71%
Similarity
£37.43
Dayton Audio
MB820-8
8"
Xmax4mm-30%
Qts0.46-12%
BL9.6Tm0%
Vas15.8L+8%
Qes0.52-5%
71%
Similarity
£43.52
FaitalPRO
8FE300
8"
Xmax5.5mm-3%
Qts0.44-15%
BL11.3Tm+18%
Vas15.7L+8%
Qes0.46-16%
71%
Similarity
£37.54
SB Audience
BIANCO-8MW125
8"
Xmax6.4mm+13%
Qts0.55+6%
BL11.3Tm+18%
Vas10.1L-31%
Qes0.57+4%
69%
Similarity
Oberton
8NCX
8"
Xmax5.3mm-8%
Qts0.4-23%
BL10.1Tm+5%
Vas14.9L+2%
Qes0.44-20%
69%
Similarity

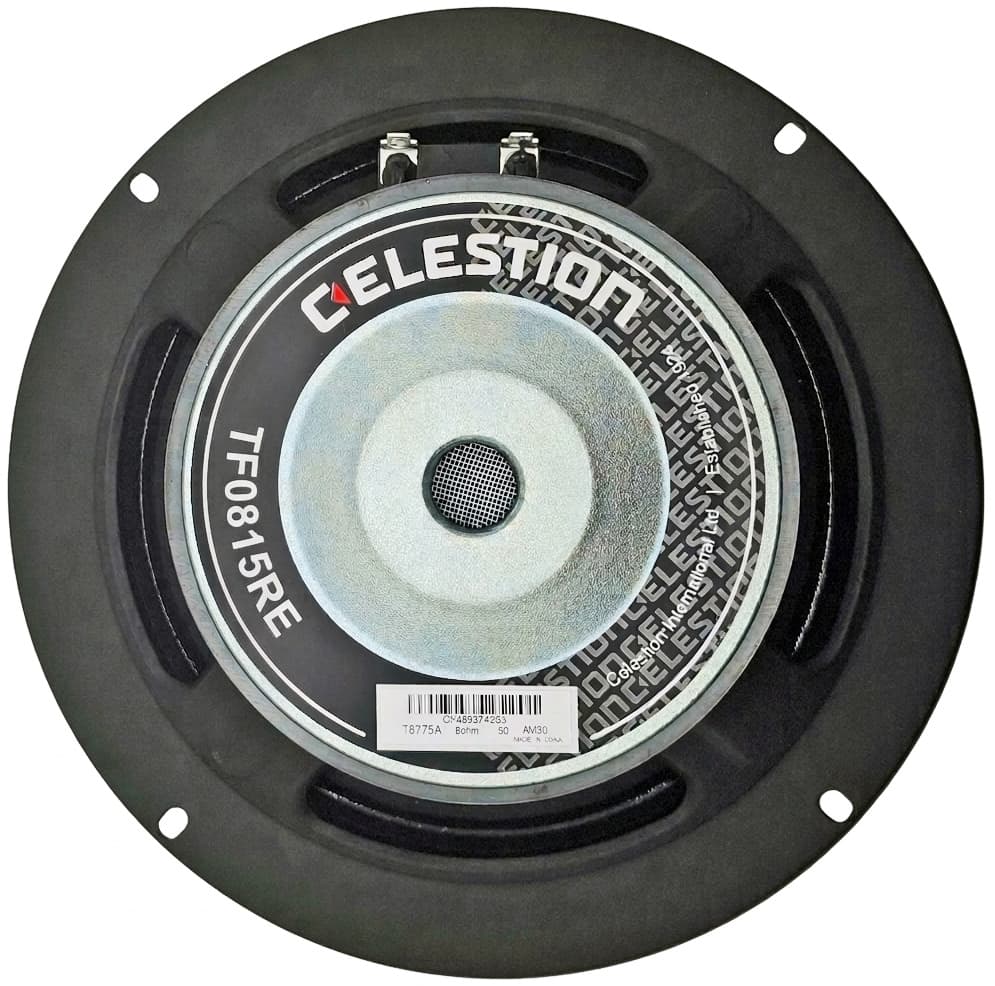

Celestion
