Overview
LF Driver
Beyma
Beyma 108CX3FE8
Beyma 108CX3FE8 is a 8" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 89Hz, Qts 0.55, Vas 10.8L, Xmax 6mm, sensitivity 92.9dB, plus 132cm³ Vd and 141 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
300W
Sensitivity
92.9dB
95.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
141
Vented alignment
Vd
132cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,535 selected pixels of 5,251
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs89Hz
Qts0.55
Qes0.63
Qms4.2
Vas10.8L
Re5.2Ω
Le0.20mH
BL9.6Tm
Sd220cm²
Mms20g
Xmax6.0mm
SPL93dB
Power300W
Impedance8Ω
F Low90Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
108CX3FE8
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
£37.54
SB Audience

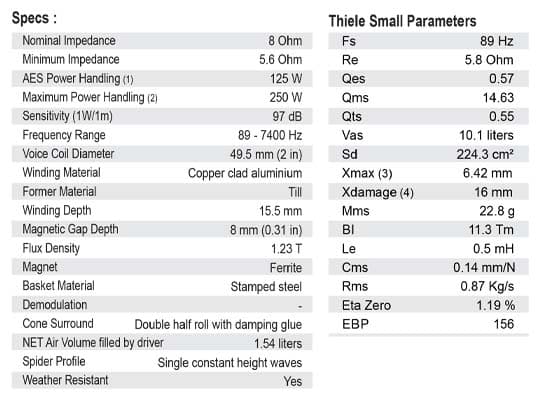

BIANCO-8MW125
8"
Xmax6.4mm+7%
Qts0.550%
BL11.3Tm+18%
Vas10.1L-6%
Qes0.57-10%
79%
Similarity
CIARE

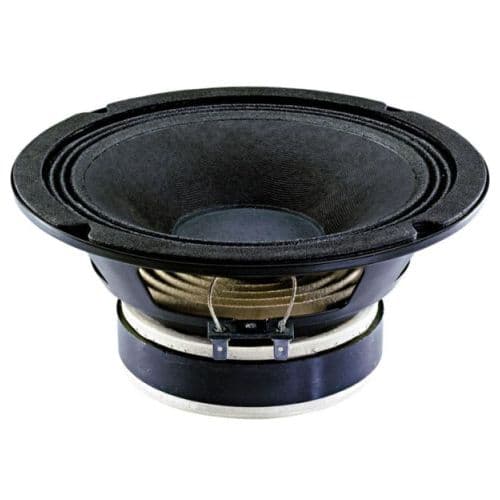

PM203
8"
Xmax4.4mm-27%
Qts0.54-2%
BL10.1Tm+5%
Vas10L-7%
Qes0.64+2%
79%
Similarity
£55.00
FaitalPRO
W8N8-150
8"
Xmax5.5mm-8%
Qts0.52-5%
BL9.9Tm+3%
Vas14.4L+33%
Qes0.59-6%
79%
Similarity
Beyma
608CMV28
8"
Xmax5.7mm-5%
Qts0.52-5%
BL9.6Tm0%
Vas14.6L+35%
Qes0.55-13%
75%
Similarity
£44.69
FaitalPRO
8FE400
8"
Xmax4.8mm-21%
Qts0.53-4%
BL10.5Tm+9%
Vas9.4L-13%
Qes0.58-8%
75%
Similarity
£104.00
B&C

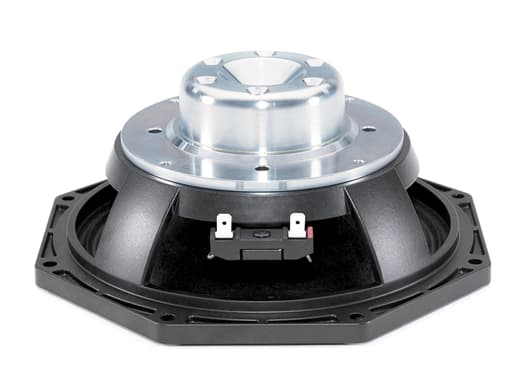

8NDL51
8"
Xmax7mm+17%
Qts0.57+4%
BL7.3Tm-24%
Vas10.1L-6%
Qes0.64+2%
67%
Similarity
£125.00
Celestion

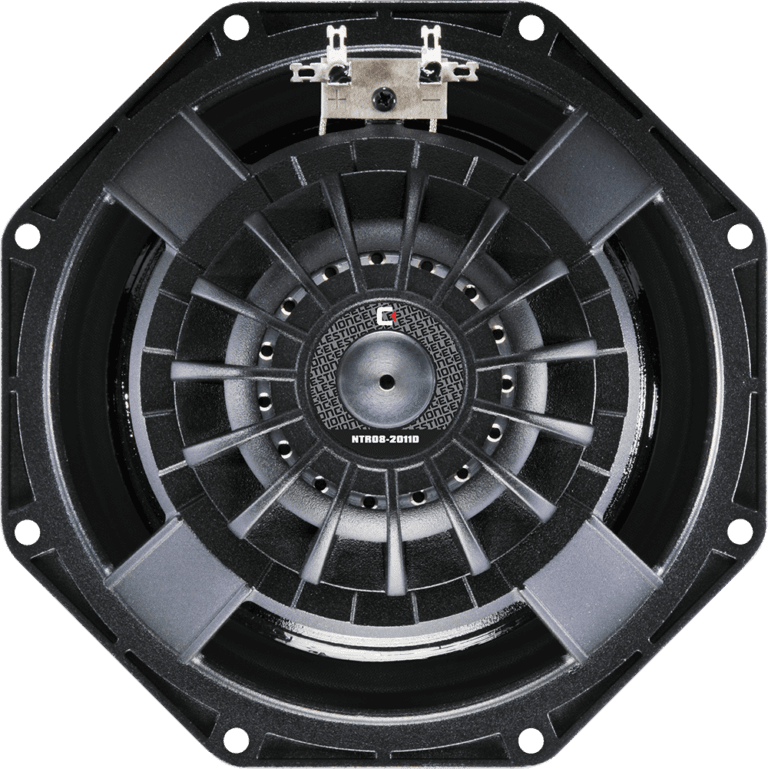

NTR08-2011D
8"
Xmax6mm0%
Qts0.44-21%
BL12Tm+25%
Vas10.3L-5%
Qes0.54-15%
60%
Similarity
FaitalPRO
8HX210
8"
Xmax6.5mm+9%
Qts0.44-20%
BL11.9Tm+24%
Vas10.1L-6%
Qes0.5-21%
59%
Similarity
FaitalPRO
8PR150
8"
Xmax5mm-17%
Qts0.48-13%
BL10.4Tm+8%
Vas16.2L+50%
Qes0.54-14%
58%
Similarity
Tang Band

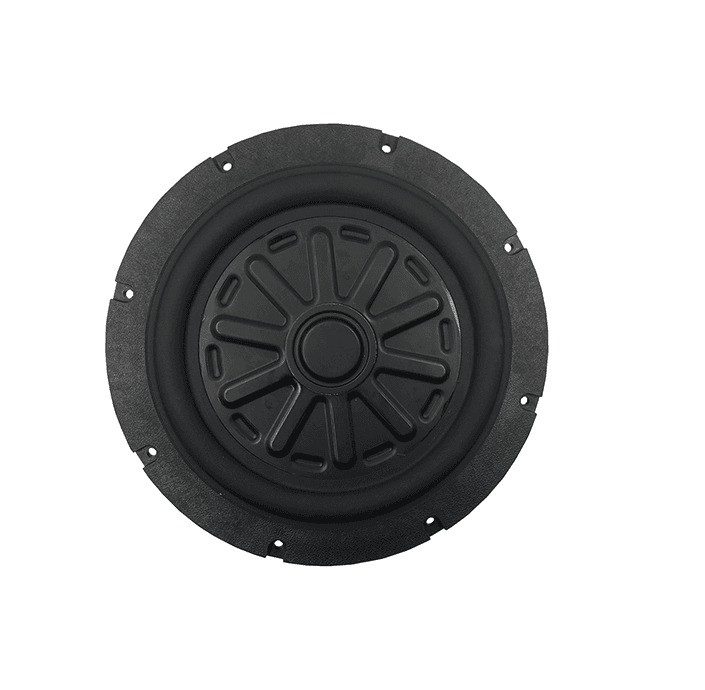

W8-2282
8"
Xmax5mm-17%
Qts0.66+20%
BL10.8Tm+12%
Vas12.9L+20%
Qes0.75+19%
56%
Similarity
£99.00
Celestion

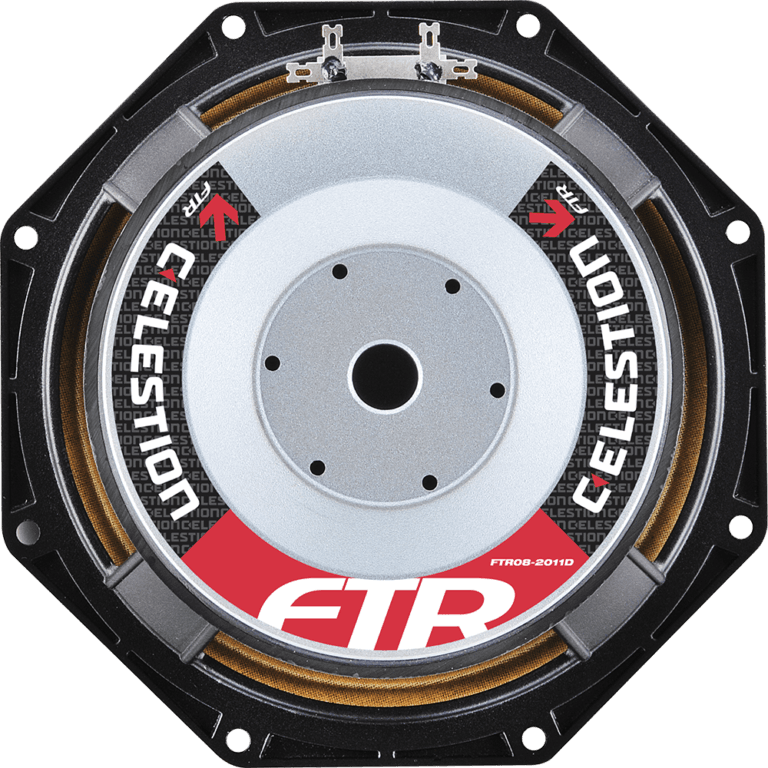

FTR08-2011D
