Overview
LF Driver
Beyma
Beyma 206B30P8
Beyma 206B30P8 is a 6.5" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 56Hz, Qts 0.50, Vas 15.6L, Xmax 5.5mm, sensitivity 88.6dB, plus 77cm³ Vd and 93 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
50W
Sensitivity
88.6dB
90.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
93
Either alignment
Vd
77cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,382 selected pixels of 3,382 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,883 selected pixels of 2,883
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs56Hz
Qts0.50
Qes0.60
Qms3.0
Vas15.6L
Re5.5Ω
Le0.30mH
BL6.8Tm
Sd140cm²
Mms14g
Xmax5.5mm
SPL89dB
Power50W
Impedance8Ω
F Low55Hz
F High8000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
206B30P8
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
HiVi
S6.5RMKII
6.5"
Xmax5.8mm+5%
Qts0.48-4%
BL6.4Tm-6%
Vas15.7L+1%
Qes0.55-8%
85%
Similarity

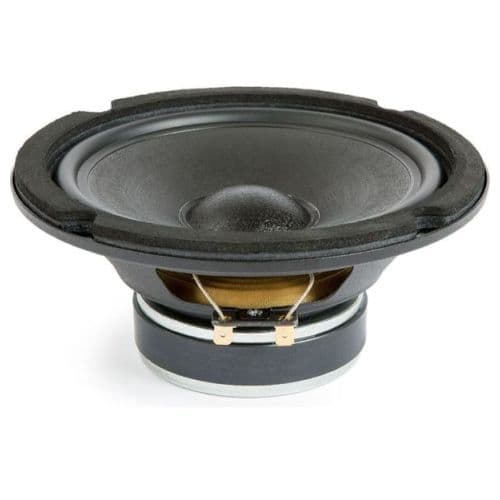

CIARE
HW159
6.5"
Xmax5.8mm+5%
Qts0.49-2%
BL6.3Tm-7%
Vas19.4L+24%
Qes0.61+2%
84%
Similarity
£30.95
Peerless
SDS-P830657
6.5"
Xmax5.5mm-1%
Qts0.47-6%
BL6.9Tm+2%
Vas20.1L+29%
Qes0.56-6%
82%
Similarity
£27.18
FaitalPRO
6FE100
6"
Xmax5.3mm-5%
Qts0.55+10%
BL6.8Tm0%
Vas15.1L-3%
Qes0.60%
82%
Similarity
£26.87
FaitalPRO
6FE125
6"
Xmax5.3mm-5%
Qts0.55+10%
BL6.8Tm0%
Vas15.1L-3%
Qes0.60%
73%
Similarity
Accuton
C168-6-890
6.5"
Xmax5mm-9%
Qts0.44-12%
BL7.5Tm+10%
Vas15L-4%
Qes0.49-18%
71%
Similarity
£110.95
Fountek
FW168K
6.5"
Xmax5mm-9%
Qts0.43-15%
BL7.9Tm+16%
Vas15.1L-3%
Qes0.52-13%
71%
Similarity
GRS
6SMP-8
6.5"
Xmax5mm-9%
Qts0.45-10%
BL8.4Tm+23%
Vas14.5L-7%
Qes0.54-10%
69%
Similarity
HiVi
S6.5
6.5"
Xmax5.8mm+5%
Qts0.42-16%
BL6.4Tm-6%
Vas18.4L+18%
Qes0.47-22%
69%
Similarity
£157.04

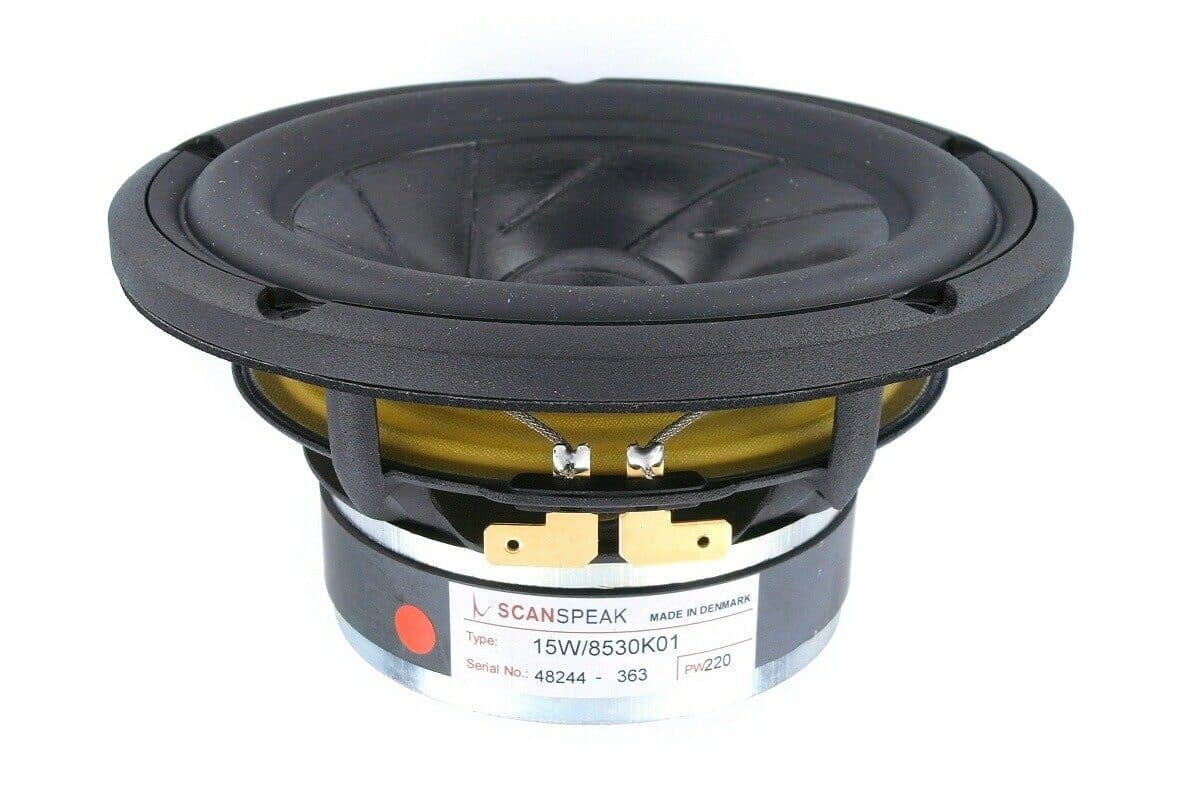

Scanspeak
