Overview
LF Driver
Beyma
Beyma 205MP6N8
Beyma 205MP6N8 is a 5" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 63Hz, Qts 0.46, Vas 5.8L, Xmax 5.5mm, sensitivity 86dB, plus 47cm³ Vd and 109 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
50W
Sensitivity
86.0dB
88.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
109
Vented alignment
Vd
47cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,960 selected pixels of 3,960 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,389 selected pixels of 3,389
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs63Hz
Qts0.46
Qes0.58
Qms2.3
Vas5.8L
Re5.3Ω
Le0.20mH
BL6.4Tm
Sd85cm²
Mms11g
Xmax5.5mm
SPL86dB
Power50W
Impedance8Ω
F Low65Hz
F High12000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
205MP6N8
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
£21.52
FaitalPRO
5FE100
5"
Xmax5.3mm-5%
Qts0.45-2%
BL6.9Tm+8%
Vas5.7L-2%
Qes0.48-17%
85%
Similarity
£21.90
FaitalPRO
5FE105
5"
Xmax5.3mm-5%
Qts0.45-2%
BL6.9Tm+8%
Vas5.7L-2%
Qes0.48-17%
84%
Similarity
£24.49
FaitalPRO
5FE120
5"
Xmax5.3mm-5%
Qts0.48+4%
BL6.9Tm+8%
Vas5.4L-7%
Qes0.51-12%
84%
Similarity
£43.27
FaitalPRO
5FE125
5"
Xmax5.3mm-5%
Qts0.48+4%
BL6.9Tm+8%
Vas5.4L-7%
Qes0.51-12%
80%
Similarity
£55.66
Eminence
ALPHA 5-8
5"
Xmax5.9mm+8%
Qts0.54+17%
BL6.2Tm-3%
Vas6.1L+6%
Qes0.56-3%
74%
Similarity
£142.74
Visaton
AL 130 M
5"
Xmax5.5mm0%
Qts0.460%
BL5.6Tm-13%
Vas9.1L+57%
Qes0.52-10%
74%
Similarity
Visaton
AL 130 M - 8 OHM
5"
Xmax5.5mm0%
Qts0.460%
BL5.6Tm-13%
Vas9.1L+57%
Qes0.52-10%
70%
Similarity
£126.11
Beyma
5CX200FE
5"
Xmax5.7mm+4%
Qts0.41-11%
BL7.4Tm+16%
Vas5.3L-9%
Qes0.43-26%
Image unavailable
69%
Similarity
Wavecor
SW146WA01
5.75"
Xmax6mm+9%
Qts0.48+4%
BL5.9Tm-8%
Vas5.5L-5%
Qes0.5-14%

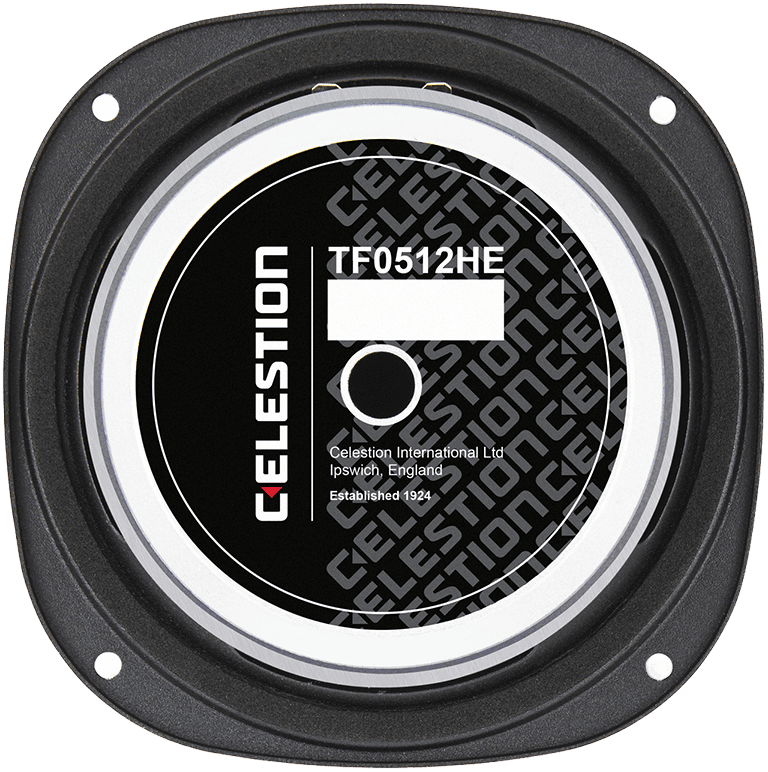

68%
Similarity
Celestion
TF0512HE
5"
Xmax4.8mm-14%
Qts0.54+17%
BL6.7Tm+5%
Vas3.5L-40%
Qes0.57-2%

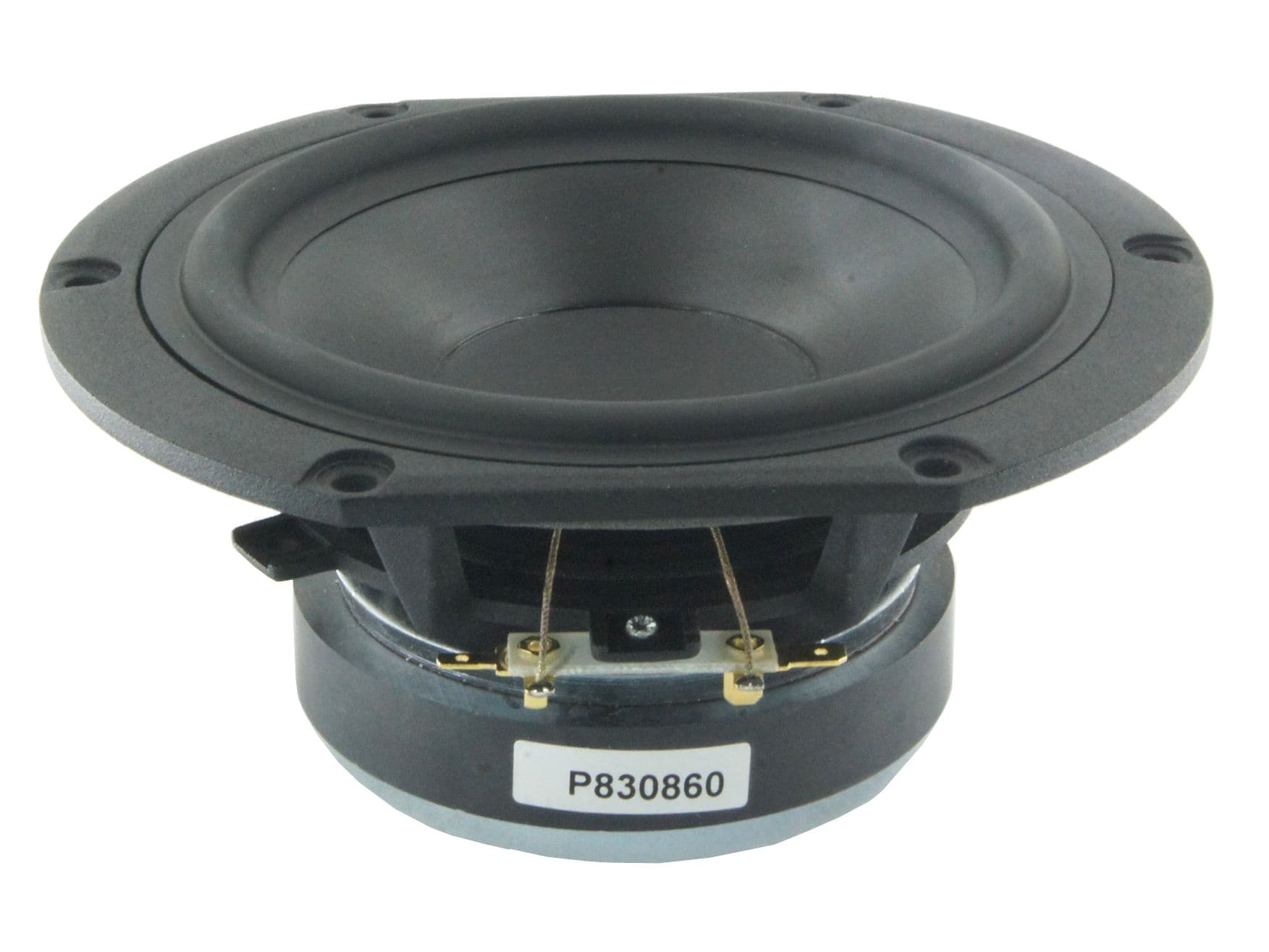

68%
