Overview
LF DriverAL series
Visaton
Visaton AL 130 M - 8 OHM
Visaton AL 130 M - 8 OHM is a 5" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 57Hz, Qts 0.46, Vas 9.1L, Xmax 5.5mm, sensitivity 87.1dB, plus 43cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
60W
Sensitivity
87.1dB
90.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
110
Vented alignment
Vd
43cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response185 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
185 plotted pointsMedium confidence365 selected pixels of 431
T/S Parameters
Valid
Fs57Hz
Qts0.46
Qes0.52
Qms4.4
Vas9.1L
Re5.4Ω
Le0.80mH
BL5.6Tm
Sd79cm²
Mms7g
Xmax5.5mm
SPL87dB
Power60W
Impedance8Ω
F High8000Hz
Xover500Hz
Voice Coil25mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter130.0mm
Cutout Diameter115.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
AL 130 M - 8 OHM
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£142.74
Visaton
AL 130 M
5"
Xmax5.5mm0%
Qts0.460%
BL5.6Tm0%
Vas9.1L0%
Qes0.520%
79%
Similarity
Beyma
205MP6N8
5"
Xmax5.5mm0%
Qts0.460%
BL6.4Tm+14%
Vas5.8L-36%
Qes0.58+12%
76%
Similarity
Tang Band
W5-1685
5"
Xmax6mm+9%
Qts0.460%
BL4.7Tm-16%
Vas12.8L+40%
Qes0.53+2%
72%
Similarity
£24.49
FaitalPRO
5FE120
5"
Xmax5.3mm-5%
Qts0.48+4%
BL6.9Tm+23%
Vas5.4L-41%
Qes0.51-2%
72%
Similarity
£43.27
FaitalPRO
5FE125
5"
Xmax5.3mm-5%
Qts0.48+4%
BL6.9Tm+23%
Vas5.4L-41%
Qes0.51-2%
72%
Similarity
£21.52
FaitalPRO
5FE100
5"
Xmax5.3mm-5%
Qts0.45-2%
BL6.9Tm+23%
Vas5.7L-37%
Qes0.48-8%
72%
Similarity
£21.90
FaitalPRO
5FE105
5"
Xmax5.3mm-5%
Qts0.45-2%
BL6.9Tm+23%
Vas5.7L-37%
Qes0.48-8%
69%
Similarity
£29.57
Dayton Audio
DSA135-8
5"
Xmax4.9mm-11%
Qts0.38-17%
BL6.2Tm+11%
Vas7.9L-13%
Qes0.47-10%
69%
Similarity
£29.57
Dayton Audio
DS135-8
5"
Xmax4.8mm-12%
Qts0.39-15%
BL6.2Tm+11%
Vas7.3L-20%
Qes0.48-8%
68%
Similarity
CIARE
HWL130
5"
Xmax4mm-27%
Qts0.43-7%
BL5.8Tm+4%
Vas11.2L+23%
Qes0.46-12%
67%
Similarity
£55.66

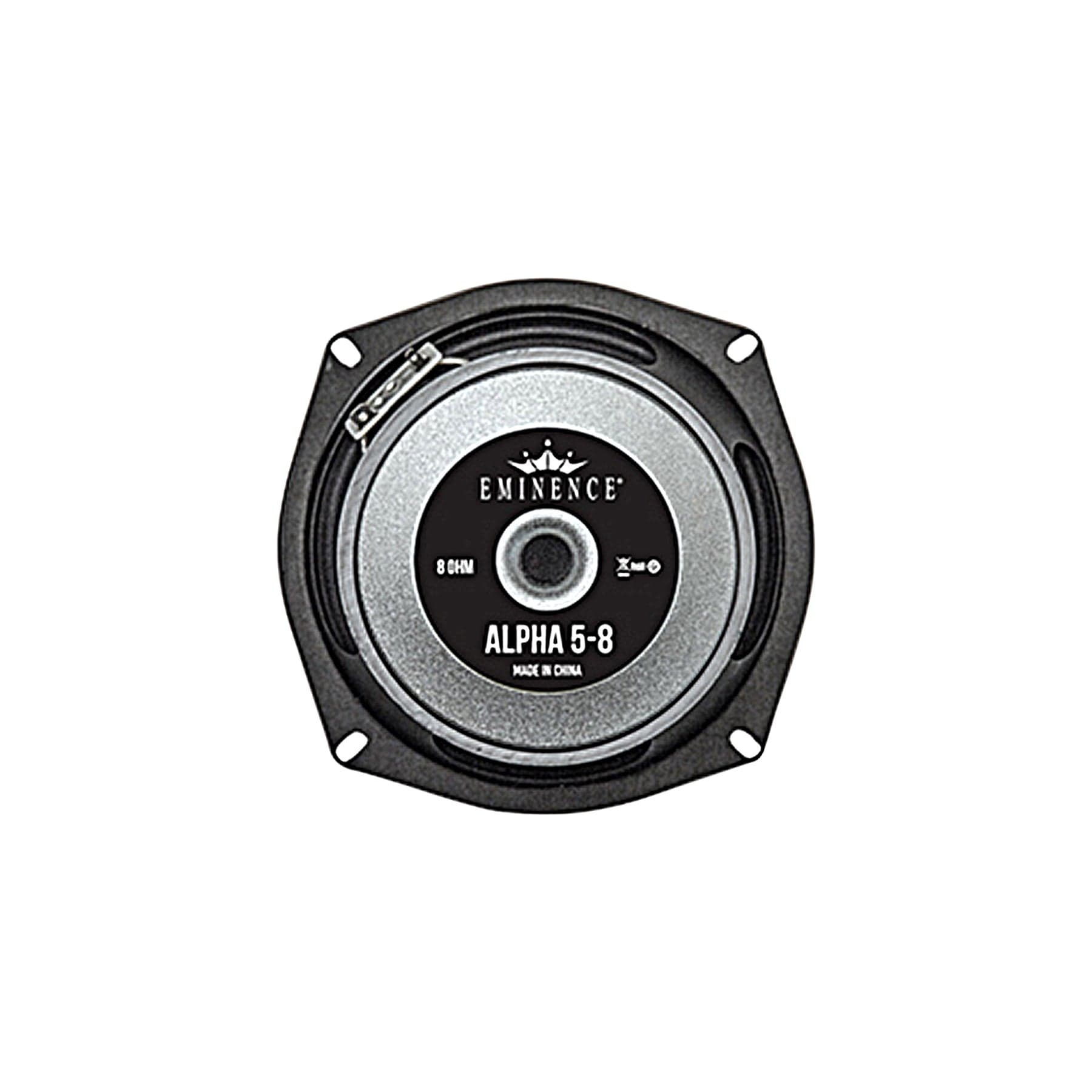

Eminence
ALPHA 5-8
5"
Xmax5.9mm+8%
Qts0.54+17%
BL6.2Tm+11%
Vas6.1L-33%
Qes0.56+8%
Image unavailable
65%
Similarity
Wavecor
SW146WA01
5.75"
Xmax6mm+9%
Qts0.48+4%
BL5.9Tm+5%
Vas5.5L-40%
Qes0.5-4%
