Overview
LF Driver
Beyma
Beyma 115LX60V28
Beyma 115LX60V28 is a 15" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 42Hz, Qts 0.44, Vas 105.5L, Xmax 8mm, sensitivity 94.4dB, plus 728cm³ Vd and 93 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
700W
Sensitivity
94.4dB
98.0dBmanufacturer; using T/S-derived value (3.6dB delta).
EBP
93
Either alignment
Vd
728cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,723 selected pixels of 4,448 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,877 selected pixels of 3,877
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs42Hz
Qts0.44
Qes0.45
Qms21.2
Vas105.5L
Re5.1Ω
Le2.10mH
BL21.1Tm
Sd910cm²
Mms147g
Xmax8.0mm
SPL94dB
Power700W
Impedance8Ω
F Low30Hz
F High1500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115LX60V28
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
96%
Similarity
£189.00
B&C
15PS100
15"
Xmax8mm0%
Qts0.43-2%
BL21.2Tm0%
Vas103L-2%
Qes0.47+4%
94%
Similarity
£181.46

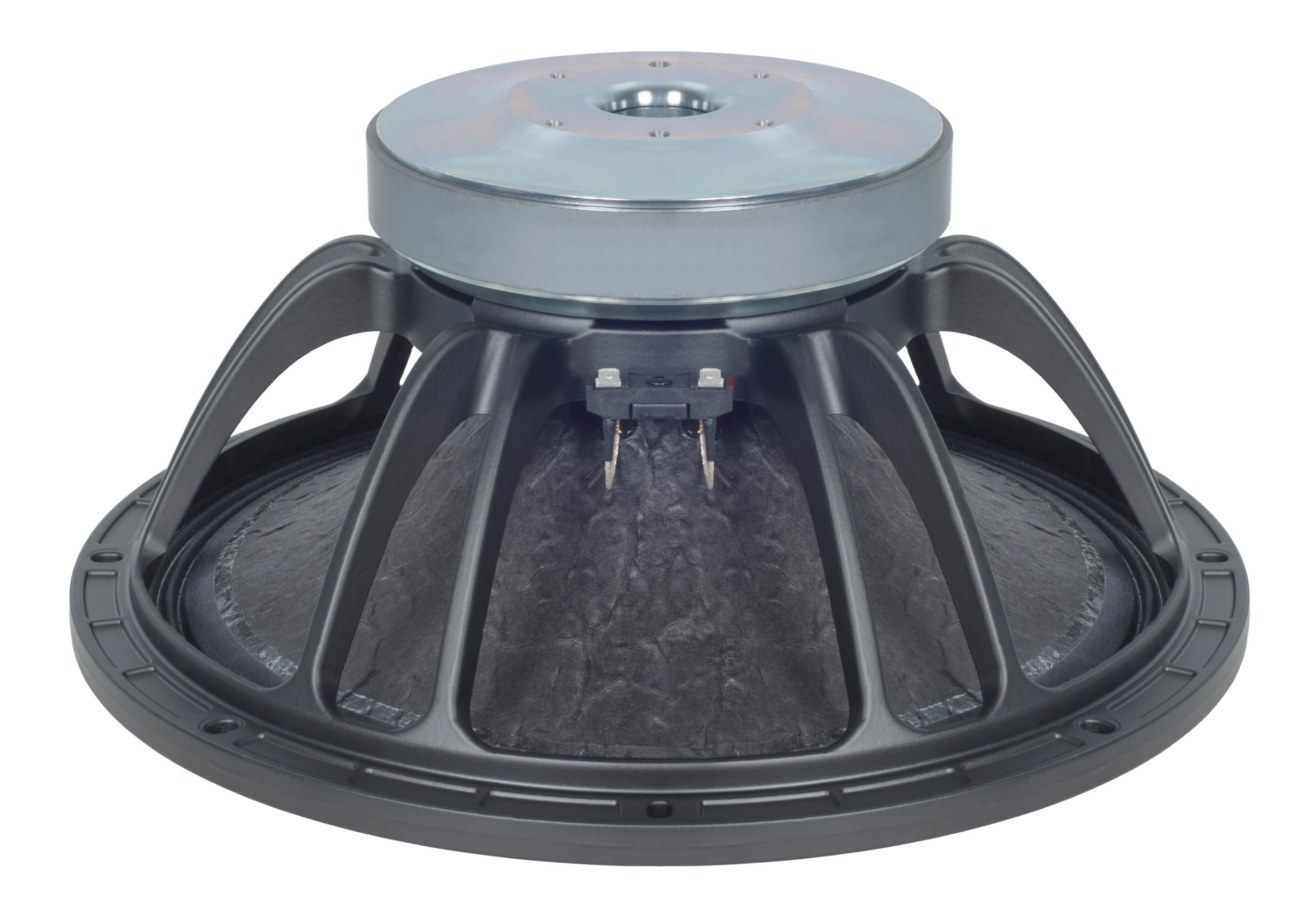

B&C
15FW88
15"
Xmax8mm0%
Qts0.43-2%
BL19.3Tm-9%
Vas103.7L-2%
Qes0.450%
88%
Similarity

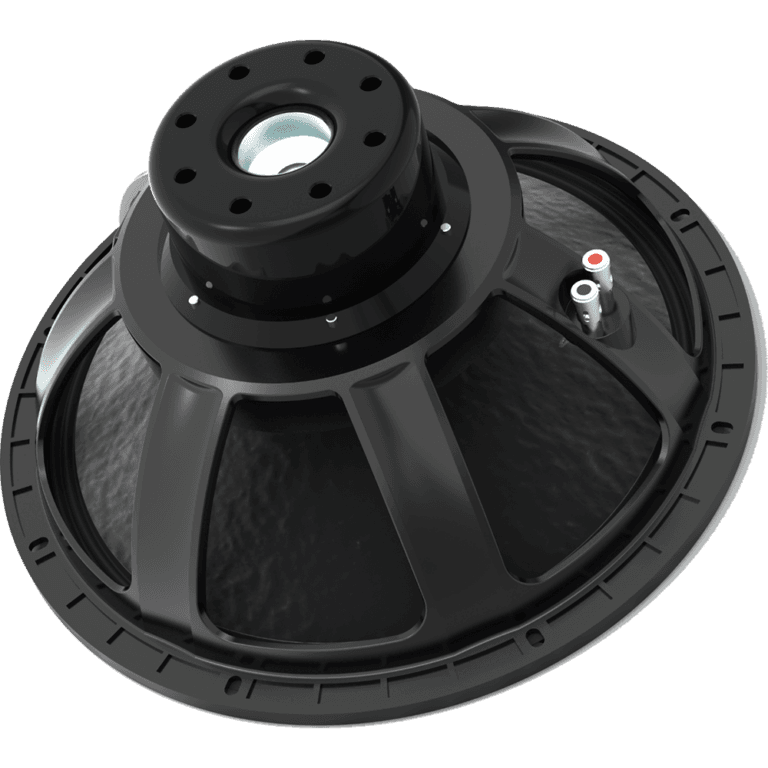

Celestion
TSQ1535
15"
Xmax8mm0%
Qts0.4-10%
BL20.6Tm-2%
Vas94L-11%
Qes0.43-4%
88%
Similarity
P.Audio
15NT-100SW
15"
Xmax9mm+13%
Qts0.43-2%
BL21.2Tm0%
Vas115.7L+10%
Qes0.46+2%
83%
Similarity
£171.72
Beyma
15MC500
15"
Xmax8mm0%
Qts0.45+2%
BL18.3Tm-13%
Vas134L+27%
Qes0.47+4%
82%
Similarity
BMS
15N630
15"
Xmax8mm0%
Qts0.42-5%
BL19.8Tm-6%
Vas152L+44%
Qes0.450%
81%
Similarity
£199.70
Eminence
OMEGA PRO-15-2KW-8
15"
Xmax7.4mm-7%
Qts0.440%
BL19.1Tm-10%
Vas142.5L+35%
Qes0.46+2%
80%
Similarity
£152.08
RCF
L15P540
15"
Xmax7mm-12%
Qts0.39-11%
BL21.4Tm+1%
Vas100L-5%
Qes0.41-9%
79%
Similarity
£202.74
BishopSound
BWP15/4/V2
15"
Xmax10.3mm+29%
Qts0.42-5%
BL21.3Tm+1%
Vas102.3L-3%
Qes0.44-2%
79%
Similarity
£202.74
BishopSound
BWP15/8/V2
15"
Xmax10.3mm+29%
Qts0.42-5%
BL21.3Tm+1%
Vas102.3L-3%
Qes0.44-2%
79%
Similarity
PRV Audio
15W1800
15"
Xmax9.5mm+19%
Qts0.42-5%
BL23.2Tm+10%
Vas100.4L-5%
Qes0.43-4%
79%
Similarity
£133.07
PRV Audio
15W1600
15"
Xmax7mm-12%
Qts0.42-5%
BL24.1Tm+14%
Vas91.2L-14%
Qes0.44-2%
