Overview
LF Driver
Beyma
Beyma 112XA30ND8
Beyma 112XA30ND8 is a 12" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 35Hz, Qts 0.21, Vas 172L, Xmax 4mm, sensitivity 97.3dB, plus 212cm³ Vd and 159 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
350W
Sensitivity
97.3dB
EBP
159
Vented alignment
Vd
212cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,192 selected pixels of 8,142
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs35Hz
Qts0.21
Qes0.22
Qms8.0
Vas172.0L
Re6.8Ω
Le1.30mH
BL15.3Tm
Sd530cm²
Mms47g
Xmax4.0mm
SPL97dB
Power350W
Impedance8Ω
F Low35Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112XA30ND8
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
72%
Similarity
Supravox
285-2000 MK2
11.25"
Xmax3.5mm-12%
Qts0.210%
BL13.3Tm-13%
Vas159L-8%
Qes0.220%
64%
Similarity
£181.89

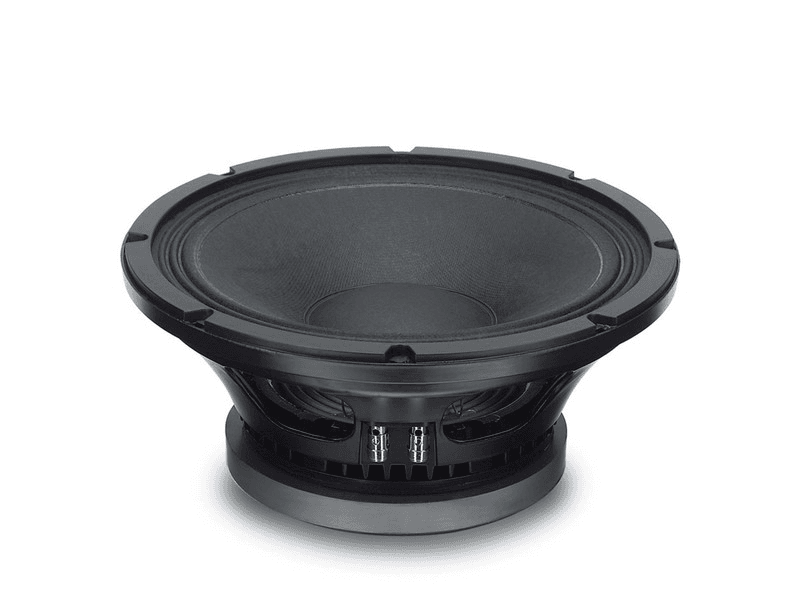

Eighteen Sound
12MB700
12"
Xmax4.5mm+13%
Qts0.19-10%
BL17.8Tm+16%
Vas101L-41%
Qes0.2-9%
64%
Similarity

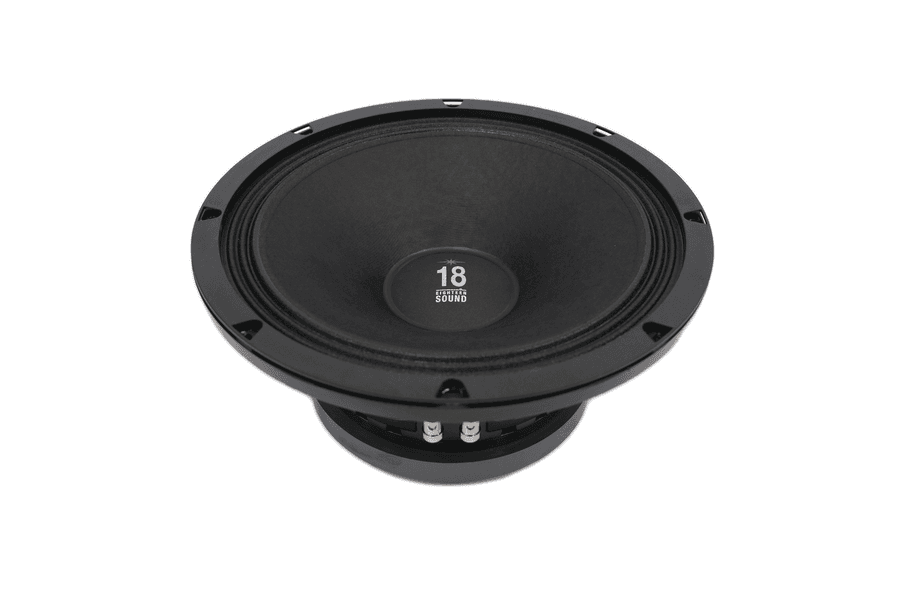

Eighteen Sound
12MB777
12"
Xmax4.5mm+13%
Qts0.19-10%
BL17.8Tm+16%
Vas101L-41%
Qes0.2-9%
60%
Similarity
£149.00

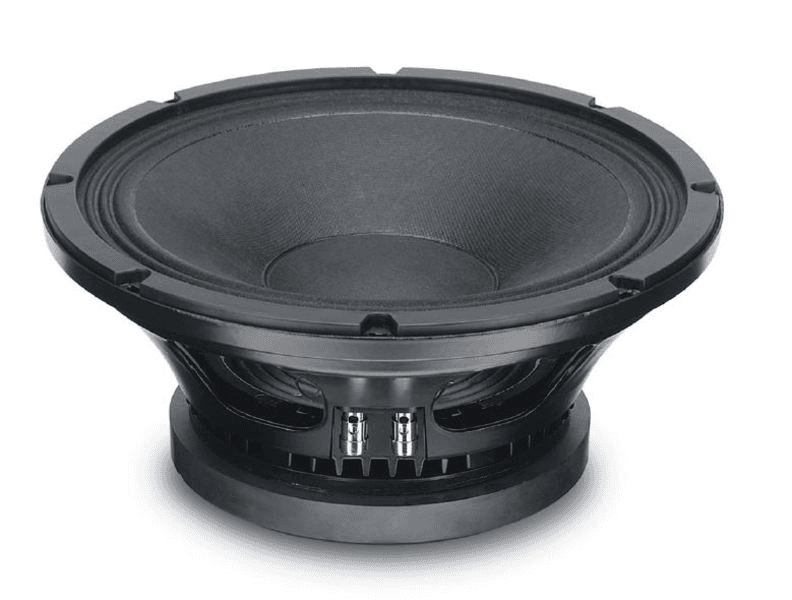

Eighteen Sound
12MB600
12"
Xmax4.5mm+13%
Qts0.18-14%
BL18Tm+18%
Vas115L-33%
Qes0.19-14%
59%
Similarity

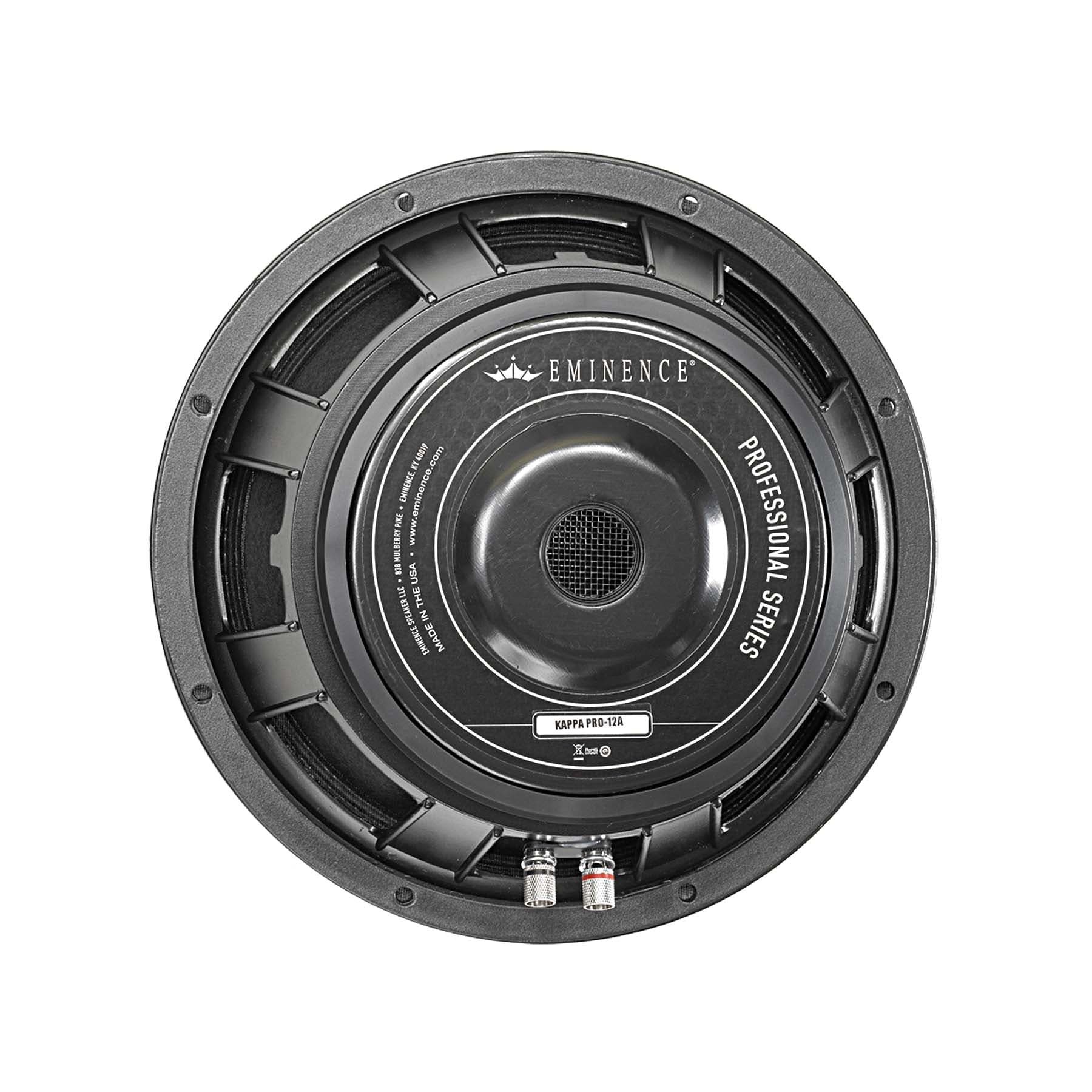

Eminence
KAPPA PRO-12A
12"
Xmax4.8mm+20%
Qts0.24+14%
BL17.3Tm+13%
Vas121L-30%
Qes0.25+14%
58%
Similarity
£248.59

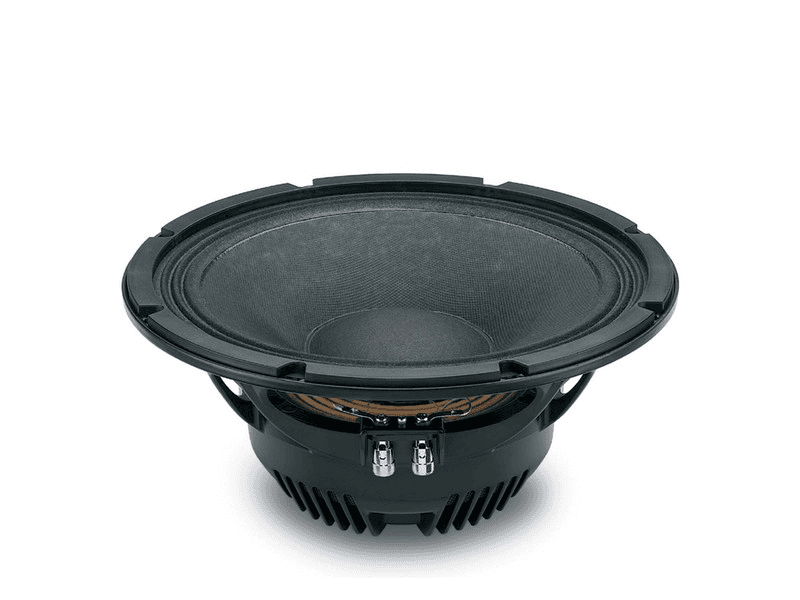

Eighteen Sound
12ND710
12"
Xmax5mm+25%
Qts0.2-5%
BL18Tm+18%
Vas92L-47%
Qes0.2-9%
50%
Similarity
£151.02
B&C
12PLB76
12"
Xmax5mm+25%
Qts0.23+10%
BL18.6Tm+22%
Vas75L-56%
Qes0.24+9%
48%
Similarity

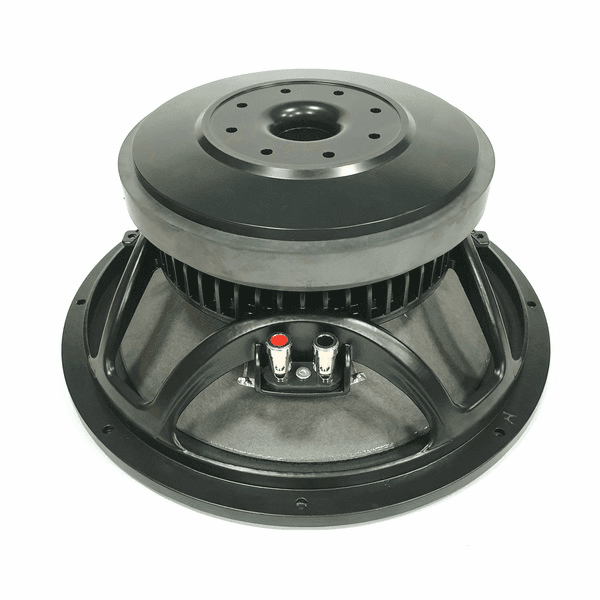

Eighteen Sound
12MB710
12"
Xmax5mm+25%
Qts0.2-5%
BL20.5Tm+34%
Vas81L-53%
Qes0.2-9%
48%
Similarity

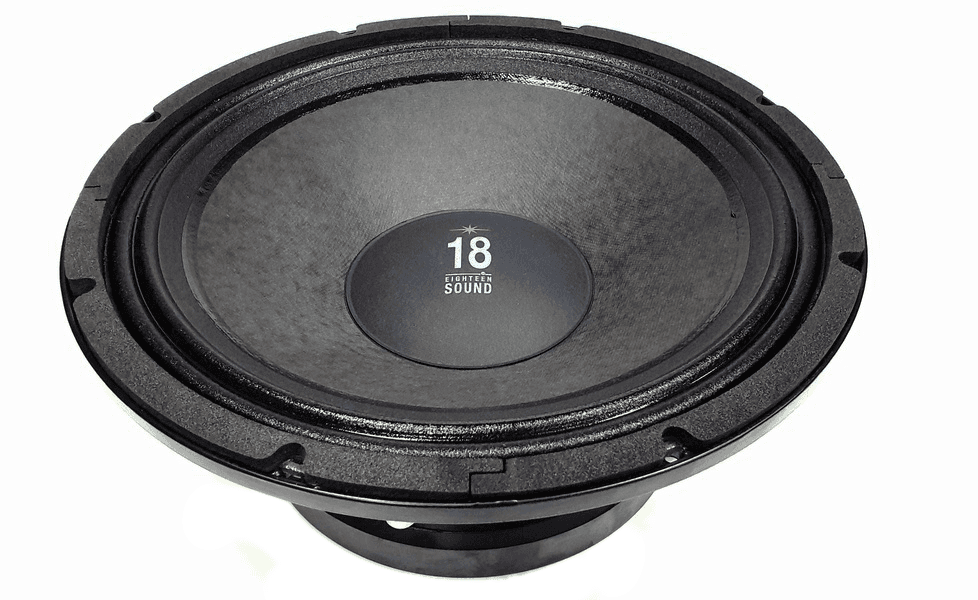

Eighteen Sound
12MB720
12"
Xmax5mm+25%
Qts0.2-5%
BL20.5Tm+34%
Vas81L-53%
Qes0.2-9%
48%
Similarity
Eighteen Sound
12MB810
12"
Xmax5mm+25%
Qts0.2-5%
BL20.5Tm+34%
Vas81L-53%
Qes0.2-9%
48%
Similarity
Oberton
12L300
12"
Xmax3.3mm-19%
Qts0.25+21%
BL16.8Tm+10%
Vas79.6L-54%
Qes0.26+19%
42%
Similarity

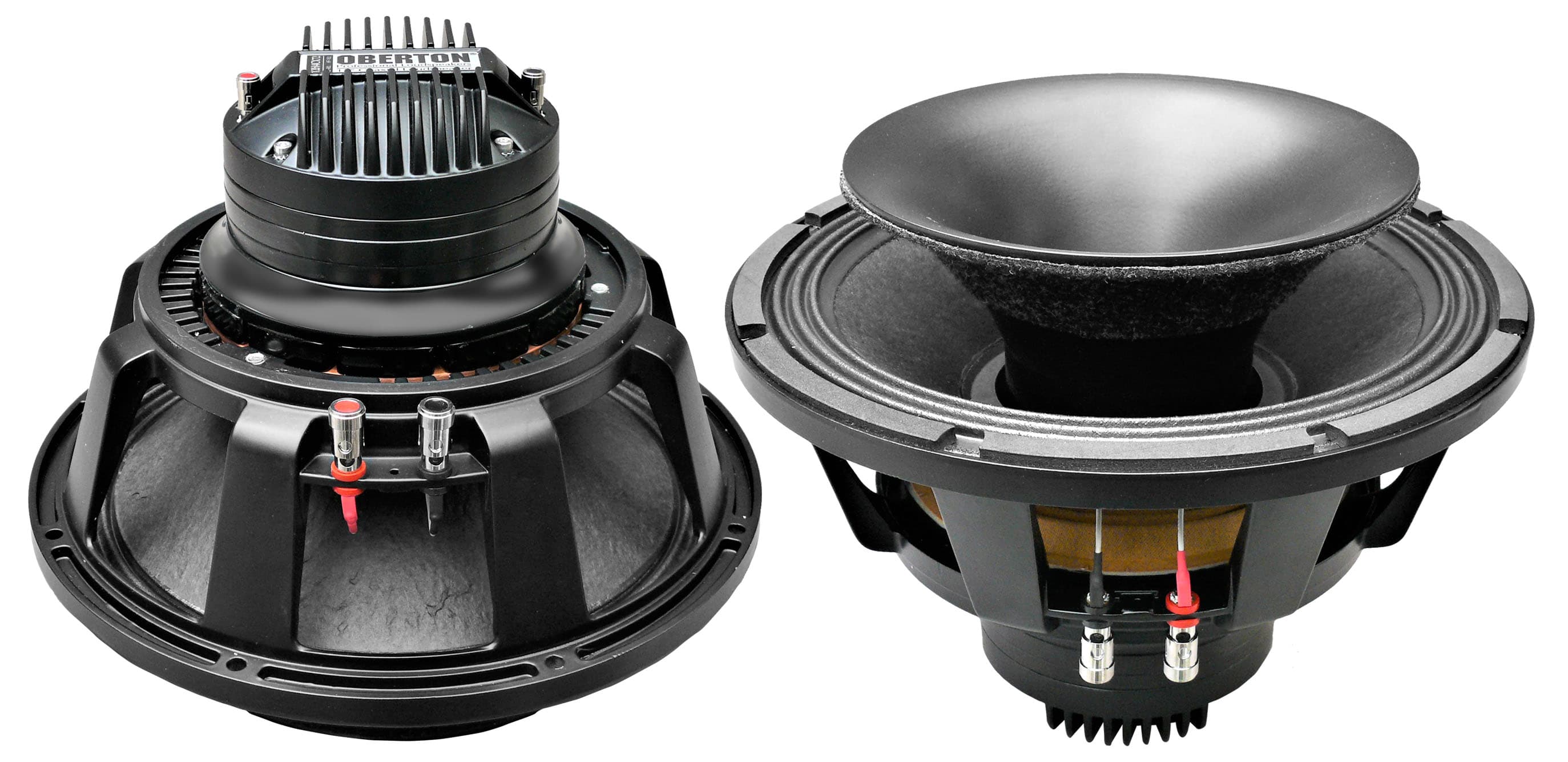

Oberton
