Overview
LF Driver
Beyma
Beyma 112MI108
Beyma 112MI108 is a 12" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 58Hz, Qts 0.22, Vas 64L, Xmax 3mm, sensitivity 99.4dB, plus 159cm³ Vd and 252 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
450W
Sensitivity
99.4dB
EBP
252
Vented alignment
Vd
159cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,277 selected pixels of 4,285 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,742 selected pixels of 3,742
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs58Hz
Qts0.22
Qes0.23
Qms5.5
Vas64.0L
Re6.3Ω
Le1.00mH
BL21.6Tm
Sd530cm²
Mms47g
Xmax3.0mm
SPL99dB
Power450W
Impedance8Ω
F Low60Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112MI108
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
90%
Similarity

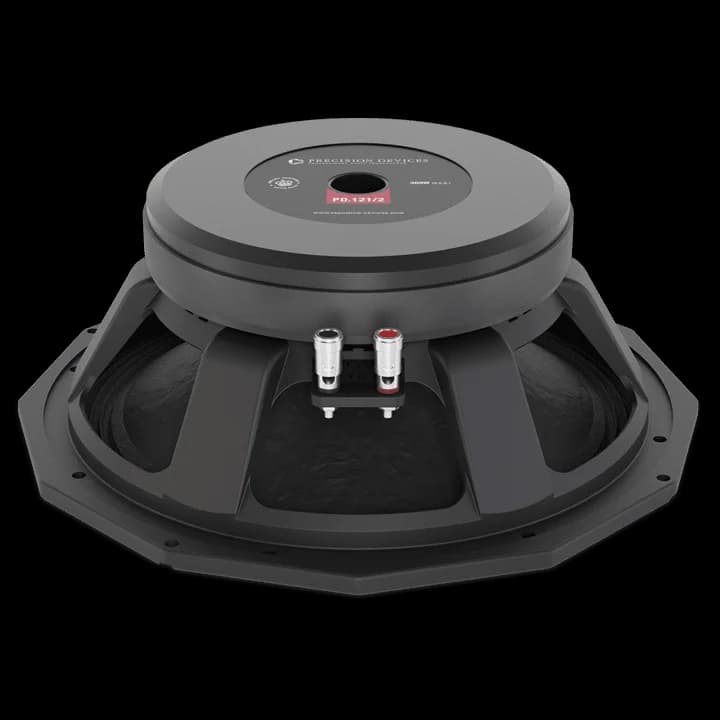

Precision Devices
PD.121/2
12"
Xmax2.7mm-10%
Qts0.23+5%
BL21.5Tm-1%
Vas66.6L+4%
Qes0.230%
78%
Similarity
£210.18
BMS
12N610
12"
Xmax3.5mm+17%
Qts0.24+9%
BL21Tm-3%
Vas70L+9%
Qes0.25+9%
72%
Similarity
BMS
12S310
12"
Xmax2.5mm-17%
Qts0.2-9%
BL24.2Tm+12%
Vas66.9L+5%
Qes0.2-13%
66%
Similarity
£206.15

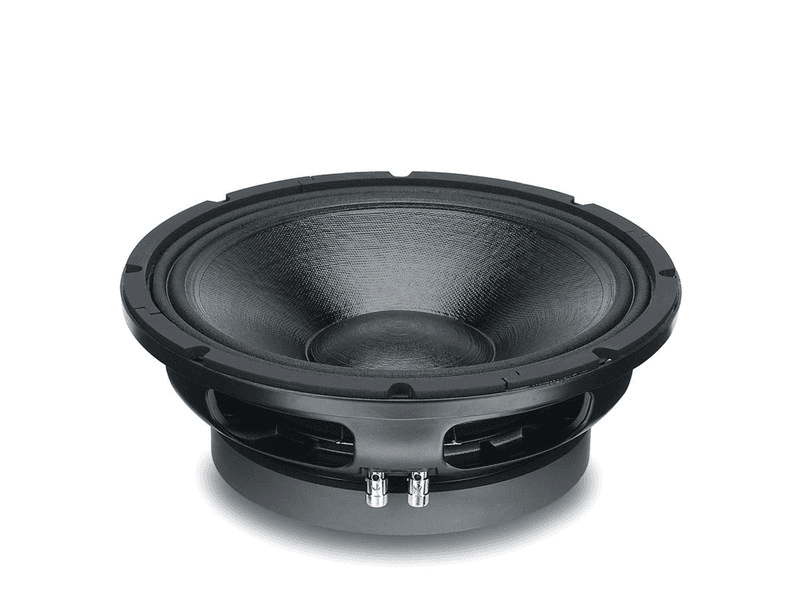

Eighteen Sound
12MB1000
12"
Xmax2.5mm-17%
Qts0.18-18%
BL23.5Tm+9%
Vas60L-6%
Qes0.2-13%
65%
Similarity
£252.00

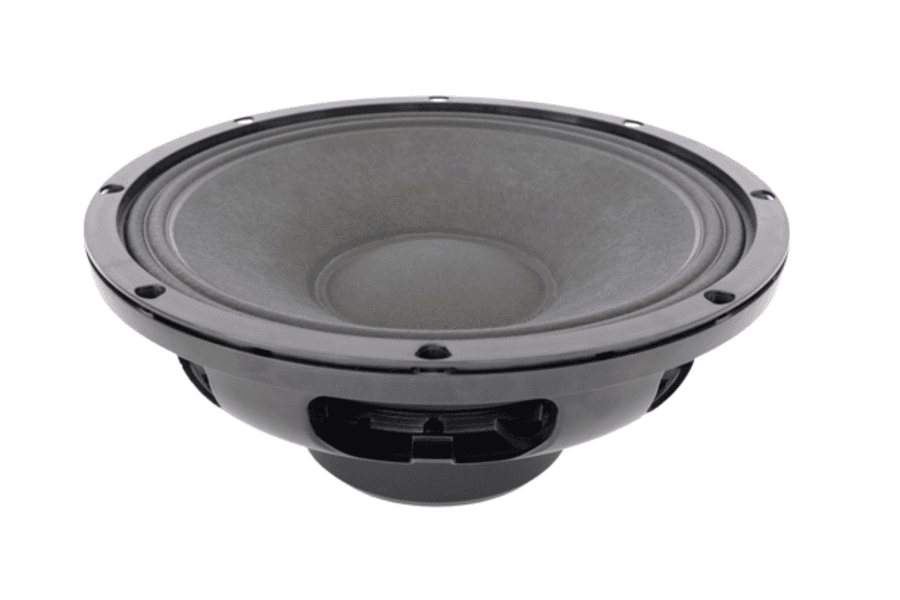

Eighteen Sound
12NMB1000
12"
Xmax3.5mm+17%
Qts0.19-14%
BL24.4Tm+13%
Vas58L-9%
Qes0.19-17%
63%
Similarity

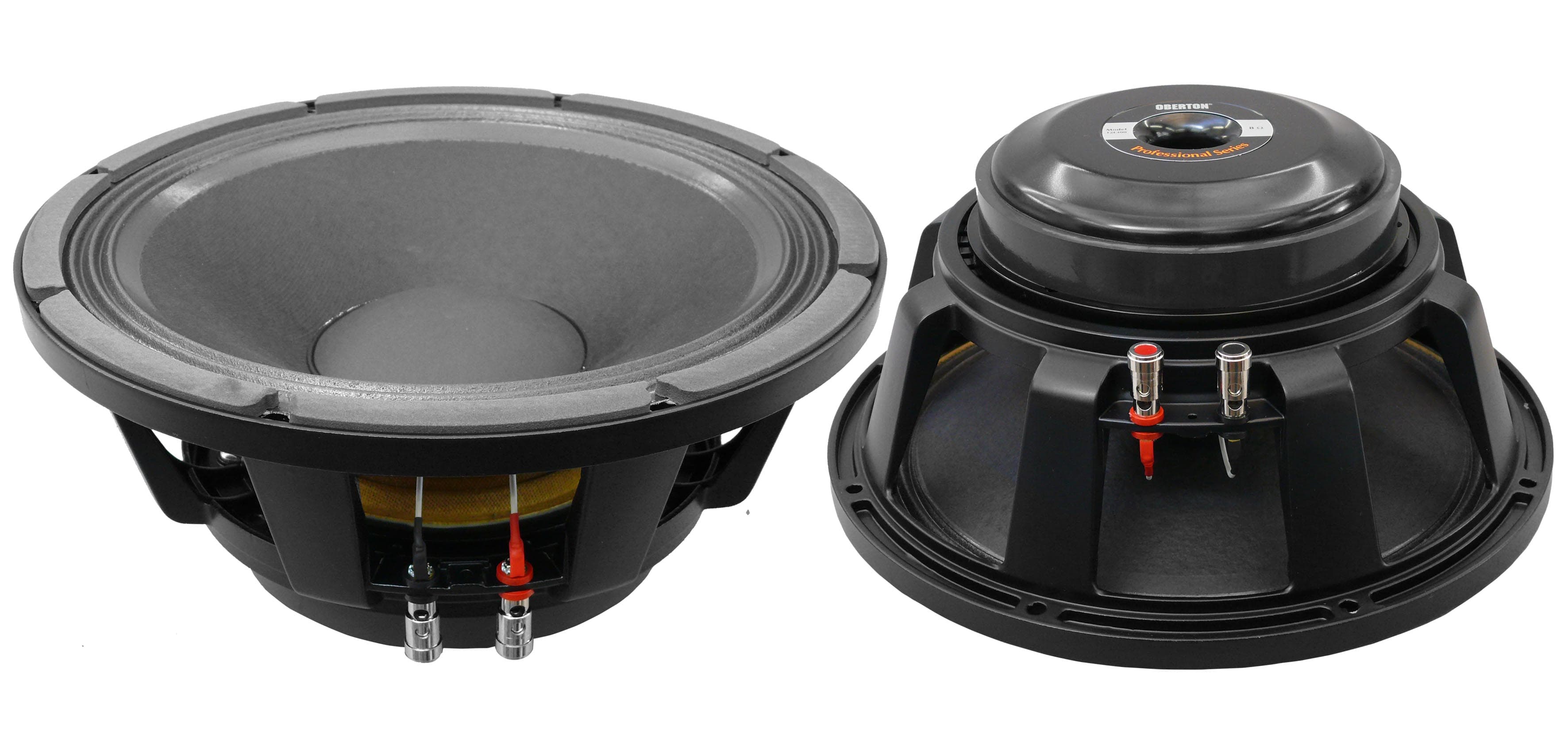

Oberton
12L300
12"
Xmax3.3mm+8%
Qts0.25+15%
BL16.8Tm-22%
Vas79.6L+24%
Qes0.26+13%
54%
Similarity
£137.69

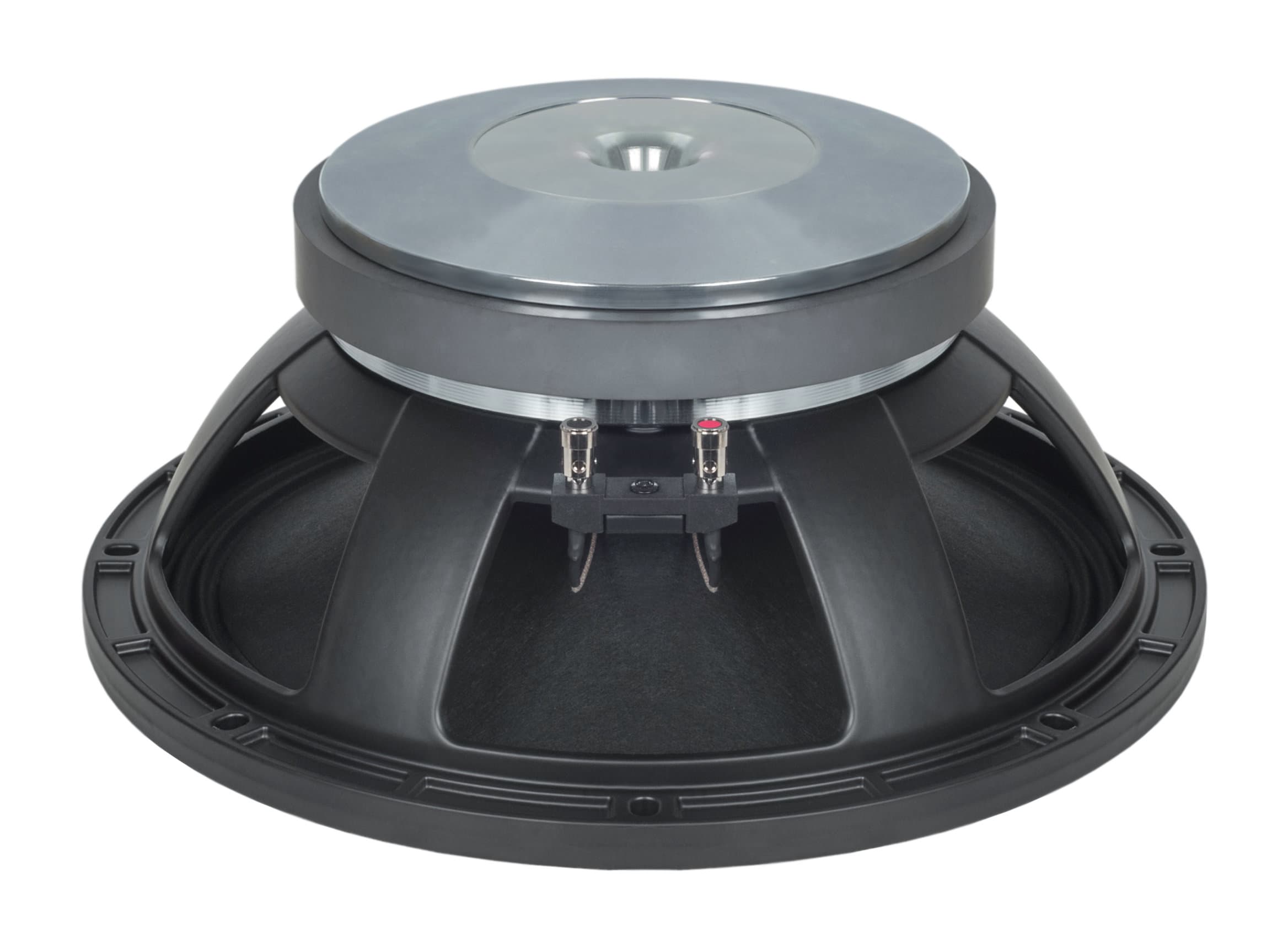

B&C
12PE32
12"
Xmax2.8mm-7%
Qts0.18-18%
BL19.1Tm-12%
Vas101L+58%
Qes0.19-17%
