Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBMS 12S310 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
BMS
BMS 12S310
BMS 12S310 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 45Hz, Qts 0.20, Vas 66.9L, Xmax 2.5mm, sensitivity 97dB, plus 133cm³ Vd and 226 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.0dB
99.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
226
Vented alignment
Vd
133cm³
T/S Parameters
Valid
Fs45Hz
Qts0.20
Qes0.20
Qms5.8
Vas66.9L
Re5.7Ω
Le1.47mH
BL24.2Tm
Sd531cm²
Mms73g
Xmax2.5mm
SPL97dB
Power400W
Impedance8Ω
F Low55Hz
F High2500Hz
Voice Coil76mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

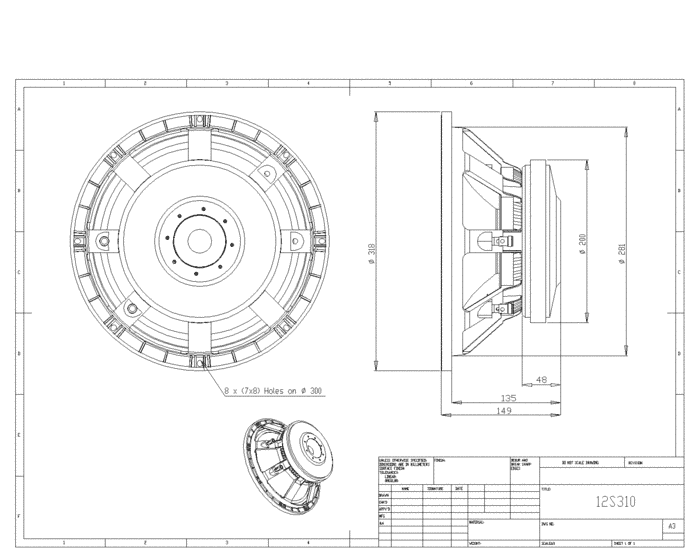

Dimensions & Physical
Weight8.1kg
Diameter318.0mm
Overall Depth149.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter300.0mm
