Overview
LF Driver
BMS
BMS 12N610
BMS 12N610 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 47Hz, Qts 0.24, Vas 70L, Xmax 3.5mm, sensitivity 96.7dB, plus 186cm³ Vd and 188 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £210.18.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.7dB
99.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
188
Vented alignment
Vd
186cm³
T/S Parameters
Valid
Fs47Hz
Qts0.24
Qes0.25
Qms4.1
Vas70.0L
Re5.7Ω
Le0.60mH
BL21.0Tm
Sd531cm²
Mms65g
Xmax3.5mm
SPL97dB
Power400W
Impedance8Ω
F Low60Hz
F High2500Hz
Voice Coil76mm
Pricing & availability
Price definitionsPrice movement
Best current price
£210.18
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

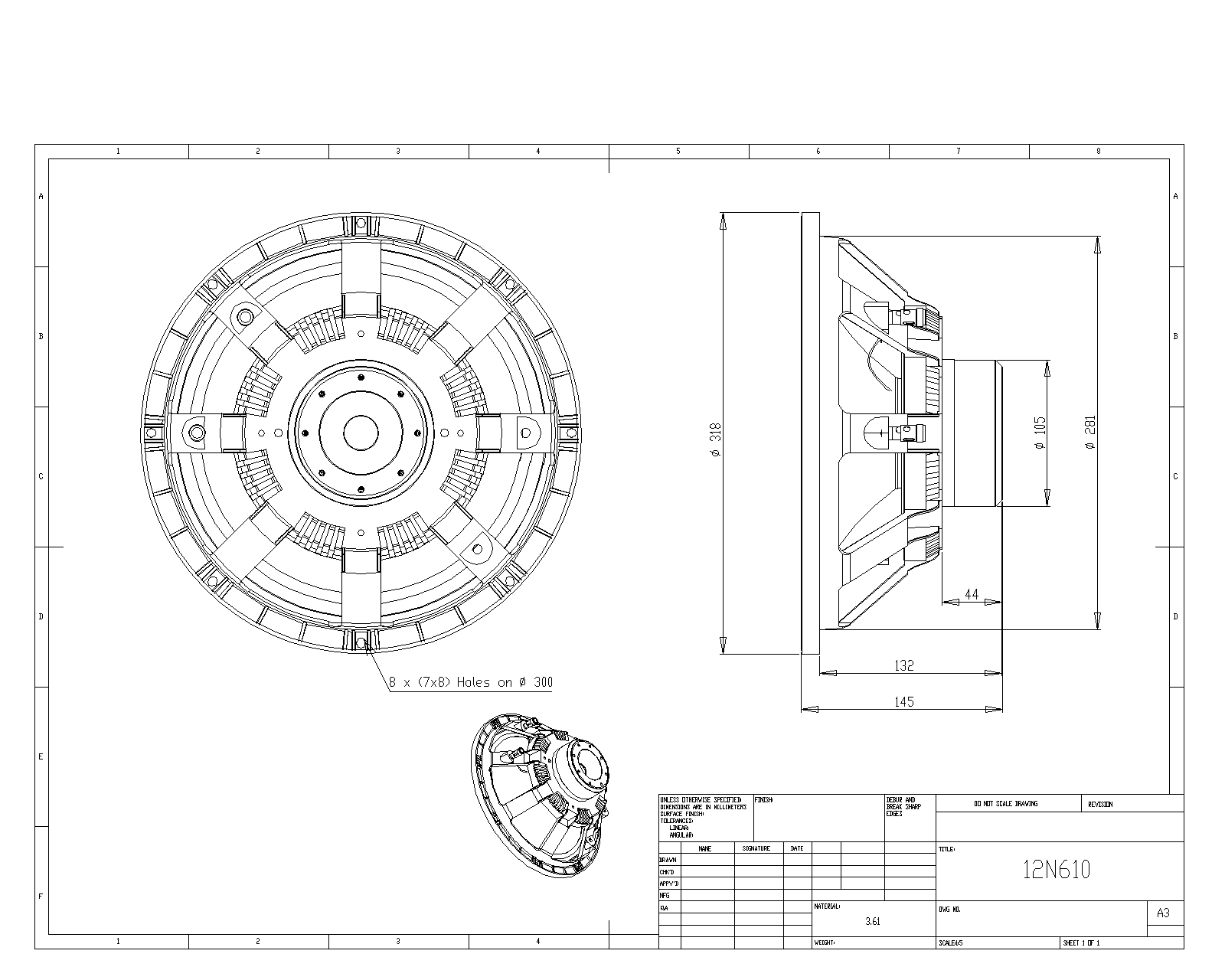

Dimensions & Physical
Weight3.2kg
Diameter318.0mm
Overall Depth145.0mm
Cutout Diameter284.0mm
Bolt Circle Diameter300.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
BMS
12N610
12"
Best current price
£210.18
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
45%
Similarity
63% cheaper£78.54
B&C
12CL64
12"
Lower price
Xmax4.5mm+29%
Qts0.3+25%
BL17.5Tm-17%
Vas64L-9%
Qes0.32+28%
46%
Similarity
34% cheaper£137.69
B&C
12PE32
12"
Lower price
Xmax2.8mm-20%
Qts0.18-25%
BL19.1Tm-9%
Vas101L+44%
Qes0.19-24%
65%
Similarity
29% cheaper£149.72
PRV Audio
12MR1200X
12"
Lower price
Xmax4.5mm+29%
Qts0.21-12%
BL22Tm+5%
Vas71.8L+3%
Qes0.21-16%
42%
Similarity
13% cheaper£181.89
Eighteen Sound
12MB700
12"
Lower price
Xmax4.5mm+29%
Qts0.19-21%
BL17.8Tm-15%
Vas101L+44%
Qes0.2-20%
53%
Similarity
12% cheaper£185.00
Celestion
NTR12-3018D
12"
Lower price
Xmax4mm+14%
Qts0.3+23%
BL19.9Tm-5%
Vas50.4L-28%
Qes0.33+30%
42%
Similarity
11% cheaper£187.96
Eighteen Sound
12NMB420
12"
Lower price
Xmax4mm+14%
Qts0.28+17%
BL13.9Tm-34%
Vas105L+50%
Qes0.3+20%
60%
Similarity
2% cheaper£204.98
BMS
12S320
12"
Lower price
Xmax4.5mm+29%
Qts0.2-17%
BL23.3Tm+11%
Vas69.5L-1%
Qes0.21-16%
50%
Similarity
2% cheaper£206.15
Eighteen Sound
12MB1000
12"
Lower price
Xmax2.5mm-29%
Qts0.18-25%
BL23.5Tm+12%
Vas60L-14%
Qes0.2-20%
47%
Similarity
10% more£230.40
Eighteen Sound
12NDA520
12"
Higher price
Xmax4mm+14%
Qts0.27+13%
BL14.4Tm-31%
Vas111L+59%
Qes0.28+12%
64%
Similarity
20% more£252.00
Eighteen Sound
12NMB1000
12"
Higher price
Xmax3.5mm0%
Qts0.19-21%
BL24.4Tm+16%
Vas58L-17%
Qes0.19-24%
79%
Similarity
29% more£271.01
BMS
12N802
12"
Higher price
Xmax4.5mm+29%
Qts0.240%
BL22.3Tm+6%
Vas65L-7%
Qes0.250%
80%
Similarity
Beyma
112MI108
12"
Xmax3mm-14%
Qts0.22-8%
BL21.6Tm+3%
Vas64L-9%
Qes0.23-8%
