Overview
LF Driver
Beyma
Beyma 112MC508
Beyma 112MC508 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 57Hz, Qts 0.34, Vas 57L, Xmax 8mm, sensitivity 96.8dB, plus 440cm³ Vd and 163 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.8dB
98.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
163
Vented alignment
Vd
440cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,484 selected pixels of 4,540 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,523 selected pixels of 3,523
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs57Hz
Qts0.34
Qes0.35
Qms7.8
Vas57.0L
Re5.6Ω
Le0.70mH
BL18.3Tm
Sd550cm²
Mms59g
Xmax8.0mm
SPL97dB
Power500W
Impedance8Ω
F Low65Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112MC508
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£133.44
Beyma
12MCS500
12"
Xmax8mm0%
Qts0.36+6%
BL17.6Tm-4%
Vas57L0%
Qes0.38+9%
90%
Similarity

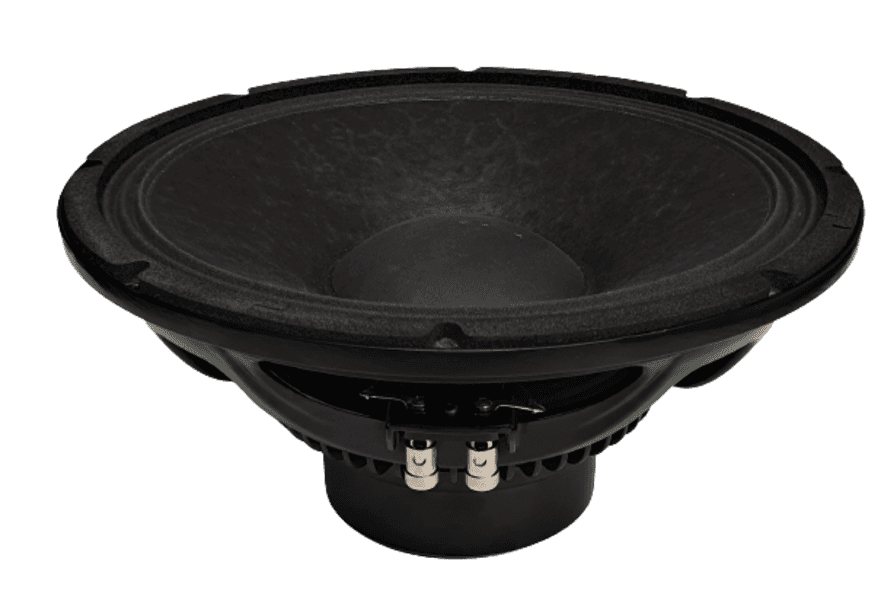

Eighteen Sound
12NW350
12"
Xmax8.3mm+4%
Qts0.340%
BL19.2Tm+5%
Vas46L-19%
Qes0.350%
89%
Similarity
£163.69

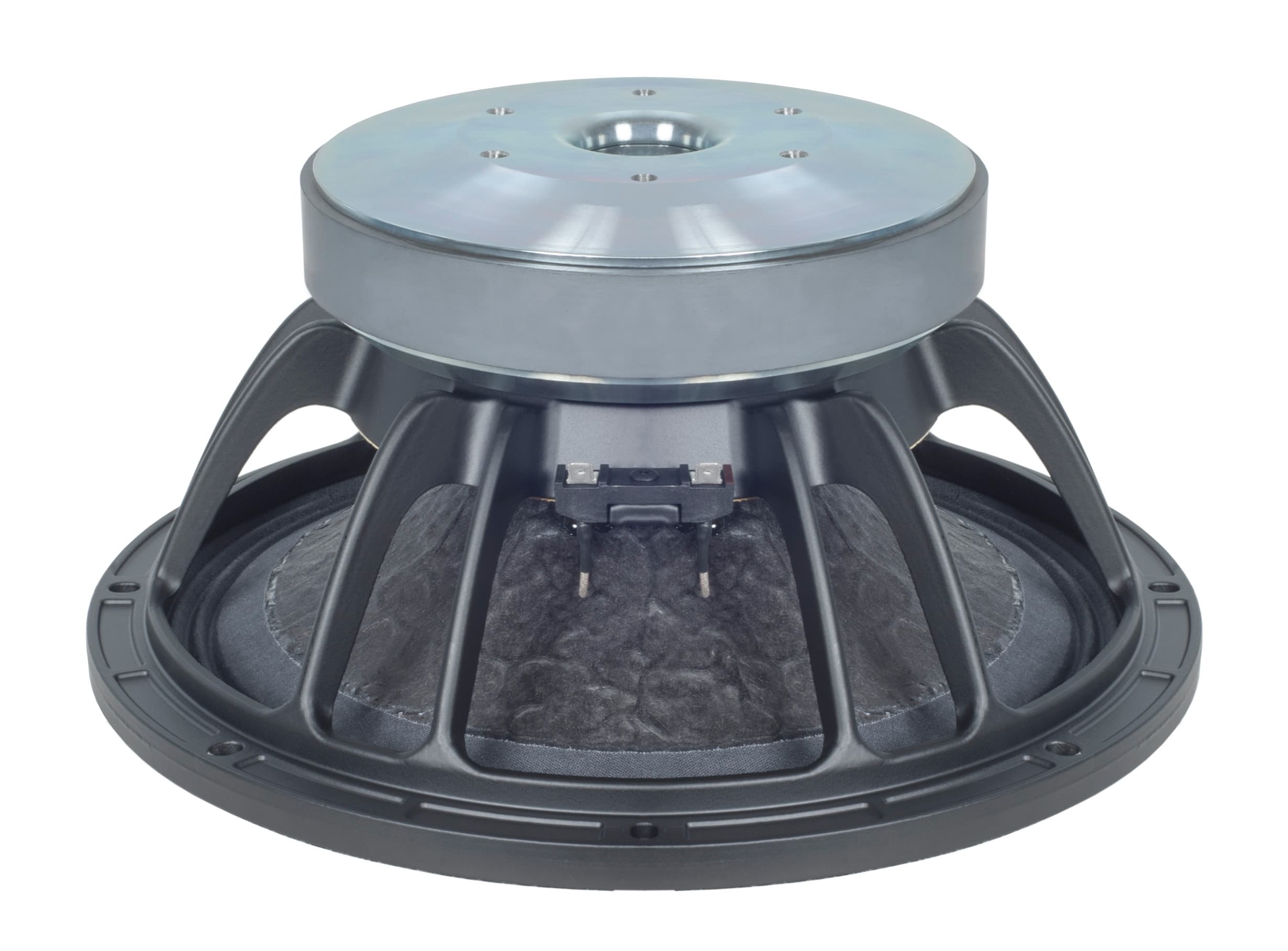

B&C
12FW88
12"
Xmax8mm0%
Qts0.33-3%
BL19.5Tm+7%
Vas45.7L-20%
Qes0.350%
87%
Similarity
£191.59
FaitalPRO
12HP1010
12"
Xmax9.3mm+16%
Qts0.340%
BL19.8Tm+8%
Vas56.5L-1%
Qes0.350%
87%
Similarity

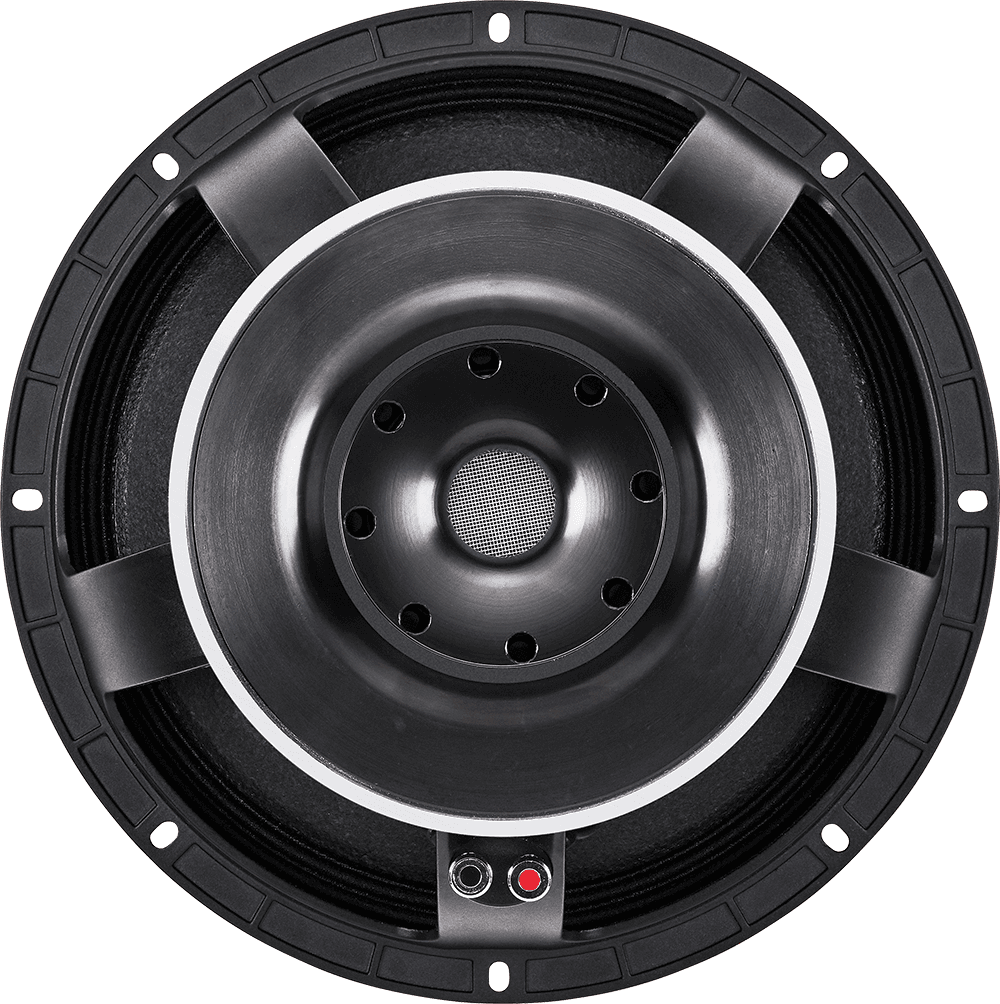

Celestion
CF1230F
12"
Xmax7.5mm-6%
Qts0.32-7%
BL18.3Tm0%
Vas49.6L-13%
Qes0.34-2%
87%
Similarity
£297.09

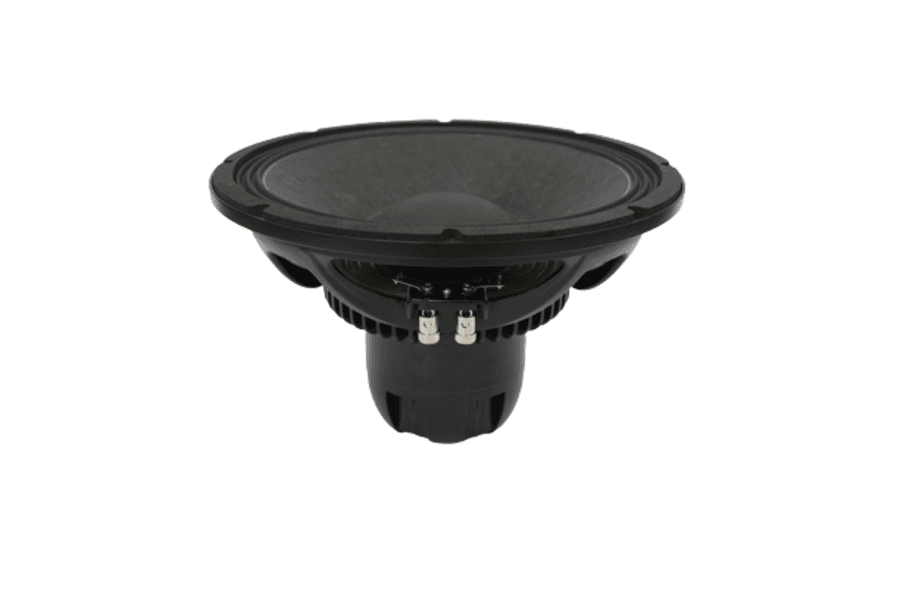

Eighteen Sound
12NTLW3500
12"
Xmax8.3mm+4%
Qts0.33-3%
BL19.5Tm+7%
Vas45L-21%
Qes0.350%
86%
Similarity
£222.00

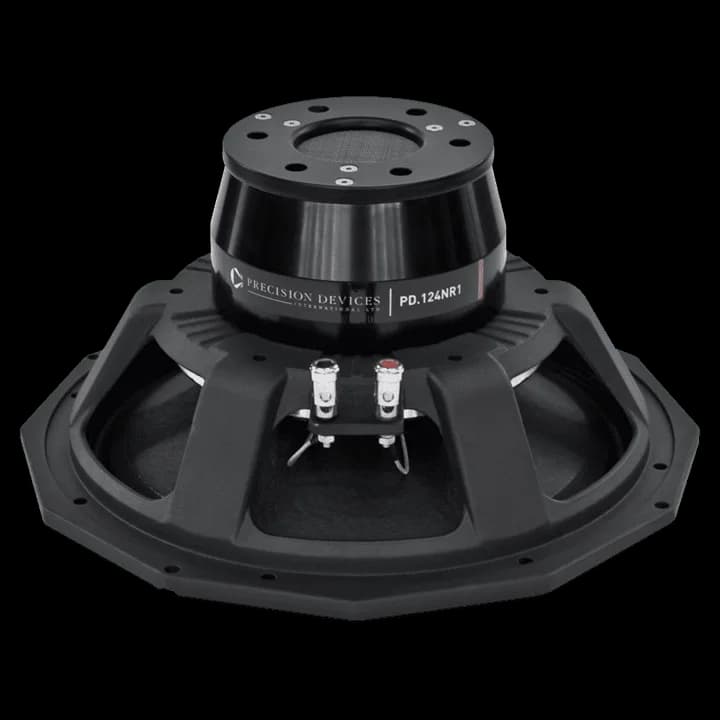

Precision Devices
PD.124NR1
12"
Xmax8.5mm+6%
Qts0.35+3%
BL19.2Tm+5%
Vas49L-14%
Qes0.37+6%
84%
Similarity

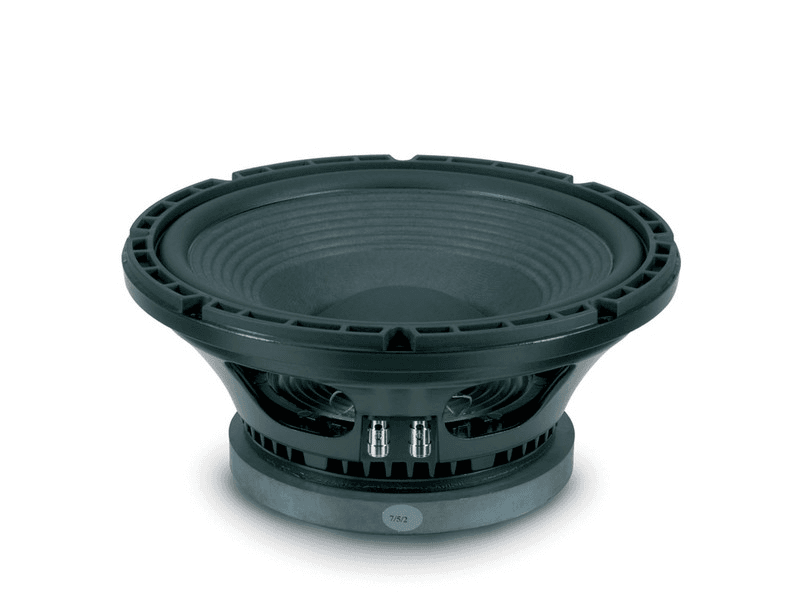

Eighteen Sound
12LW801
12"
Xmax8mm0%
Qts0.33-3%
BL20.3Tm+11%
Vas41L-28%
Qes0.34-3%
83%
Similarity

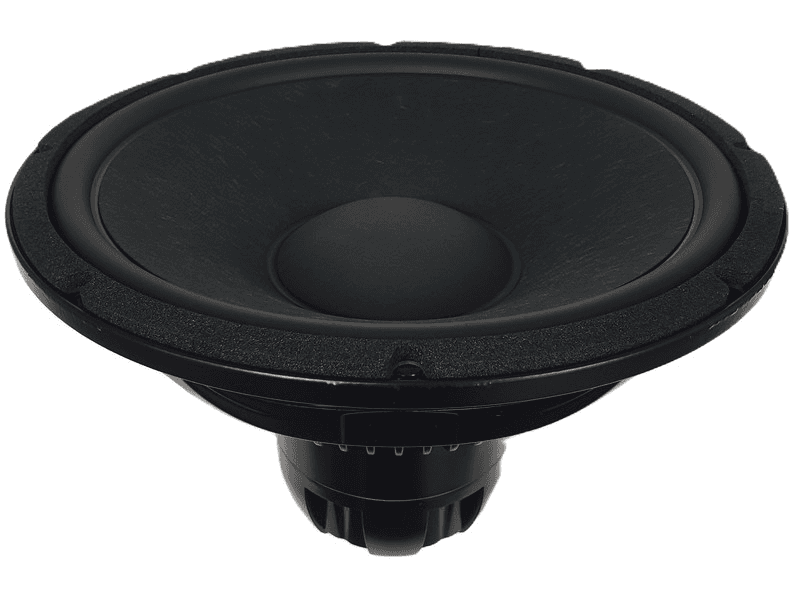

Eighteen Sound
12NTLX3500
12"
Xmax7.9mm-1%
Qts0.33-3%
BL17.1Tm-7%
Vas79.6L+40%
Qes0.350%
83%
Similarity

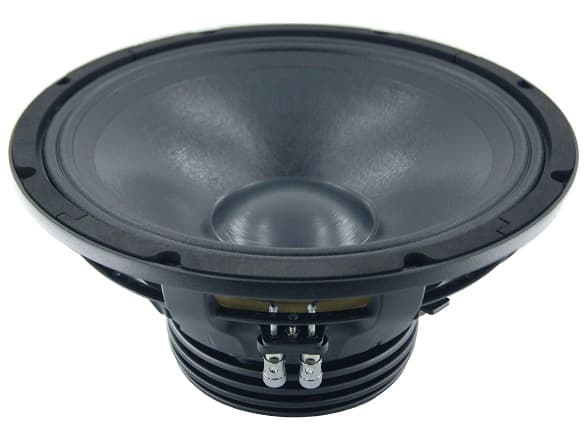

Peerless
NCP-1230R01-08
12"
Xmax7.9mm-1%
Qts0.37+9%
BL18.1Tm-1%
Vas46.3L-19%
Qes0.39+13%
81%
Similarity
£179.00

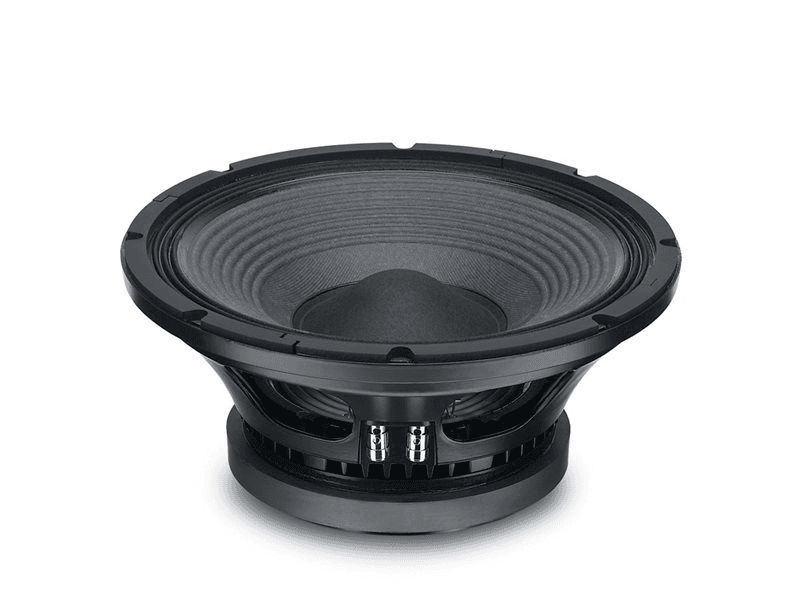

Eighteen Sound
12W700
12"
Xmax6.5mm-19%
Qts0.36+6%
BL17.7Tm-3%
Vas55L-4%
Qes0.37+6%
81%
Similarity
£260.72

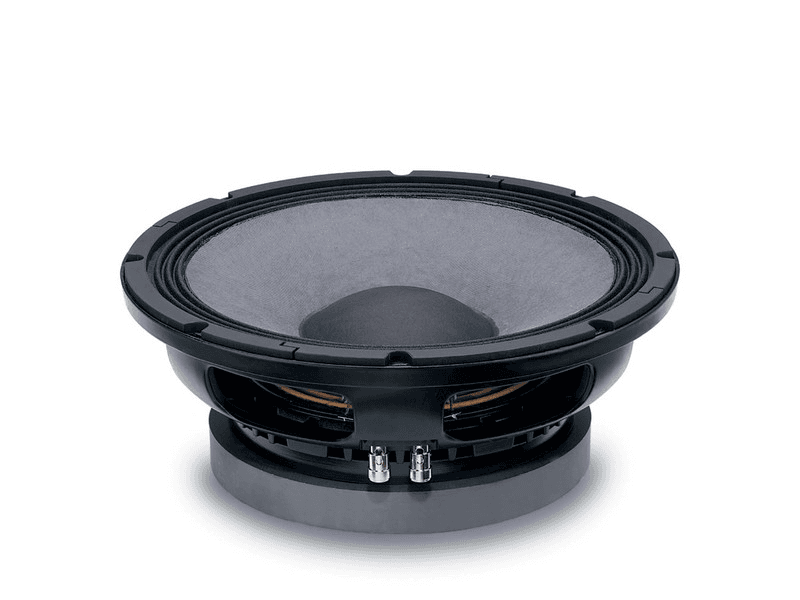

Eighteen Sound
