LF Driver
Beyma
Beyma 106MI108
Beyma 106MI108 is a 6.5" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 128Hz, Qts 0.51, Vas 3.1L, Xmax 3mm, sensitivity 92.8dB, plus 42cm³ Vd and 233 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
250W
Sensitivity
92.8dB
94.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
233
Vented alignment
Vd
42cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,416 selected pixels of 4,416 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,976 selected pixels of 2,976
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs128Hz
Qts0.51
Qes0.55
Qms8.6
Vas3.1L
Re6.0Ω
Le0.20mH
BL10.8Tm
Sd140cm²
Mms14g
Xmax3.0mm
SPL93dB
Power250W
Impedance8Ω
F Low100Hz
F High8000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
106MI108
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£50.51
CIARE
NDI6
6.5"
Xmax3mm0%
Qts0.46-10%
BL10.5Tm-3%
Vas2.5L-19%
Qes0.54-2%
75%
Similarity
£96.40
B&C
6MDN44
6.5"
Xmax3mm0%
Qts0.47-8%
BL14.5Tm+34%
Vas2.8L-10%
Qes0.56+2%
74%
Similarity
£42.73

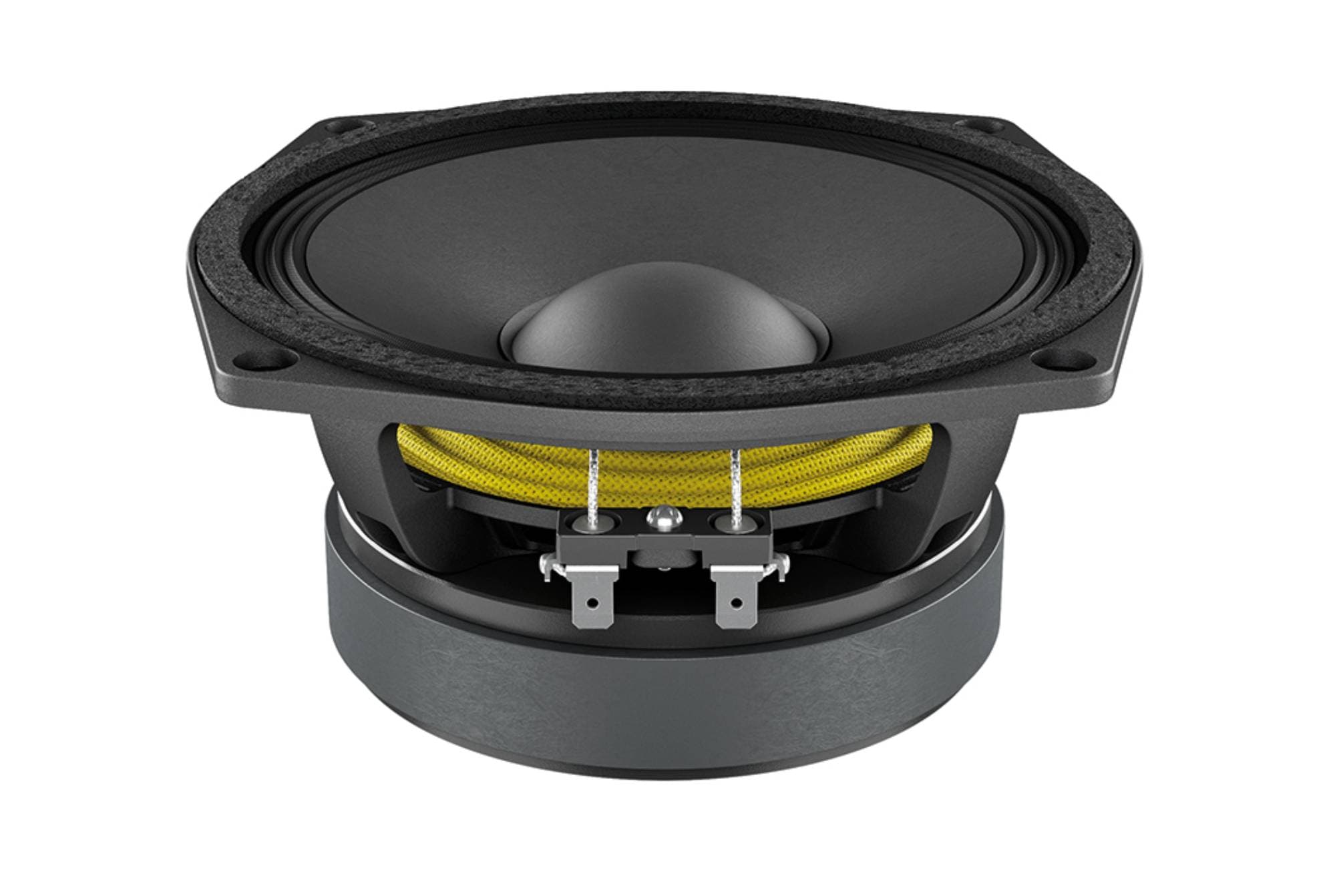

Lavoce
MAF061.50
6.5"
Xmax3.6mm+20%
Qts0.52+2%
BL10.5Tm-2%
Vas1.9L-39%
Qes0.57+4%
70%
Similarity
£81.62

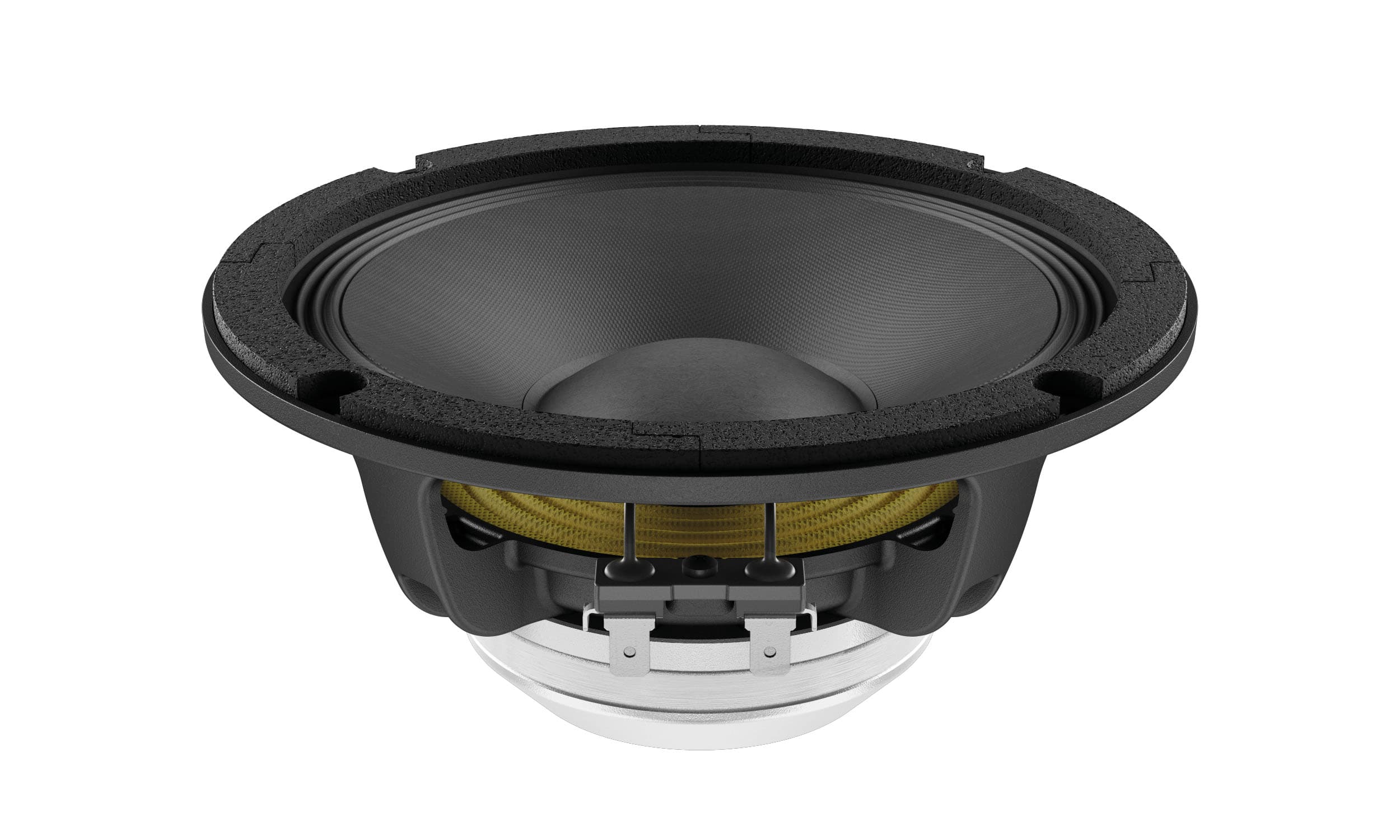

Lavoce
