Overview
LF DriverW series
Visaton
Visaton W 250 S - 8 OHM
Visaton W 250 S - 8 OHM is a 10" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 31Hz, Qts 0.32, Vas 121L, Xmax 7mm, sensitivity 91.7dB, plus 242cm³ Vd and 79 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.19.
Size
10"
Impedance
8Ω
RMS Power
100W
Sensitivity
91.7dB
90.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
79
Either alignment
Vd
242cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence988 selected pixels of 1,734
T/S Parameters
Valid
Fs31Hz
Qts0.32
Qes0.39
Qms1.9
Vas121.0L
Re6.6Ω
Le1.50mH
BL9.2Tm
Sd346cm²
Mms38g
Xmax7.0mm
SPL92dB
Power100W
Impedance8Ω
F High5500Hz
Voice Coil38mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£77.28
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
partsexpress
£85.19
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter250.0mm
Cutout Diameter233.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
W 250 S - 8 OHM
10"
Best current price
£85.19
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
13% cheaper£73.95
Visaton
W 250 S - 4 OHM
10"
Lower price
Xmax7mm0%
Qts0.35+9%
BL8.9Tm-3%
Vas135L+12%
Qes0.43+10%
47%
Similarity
3% cheaper£82.50

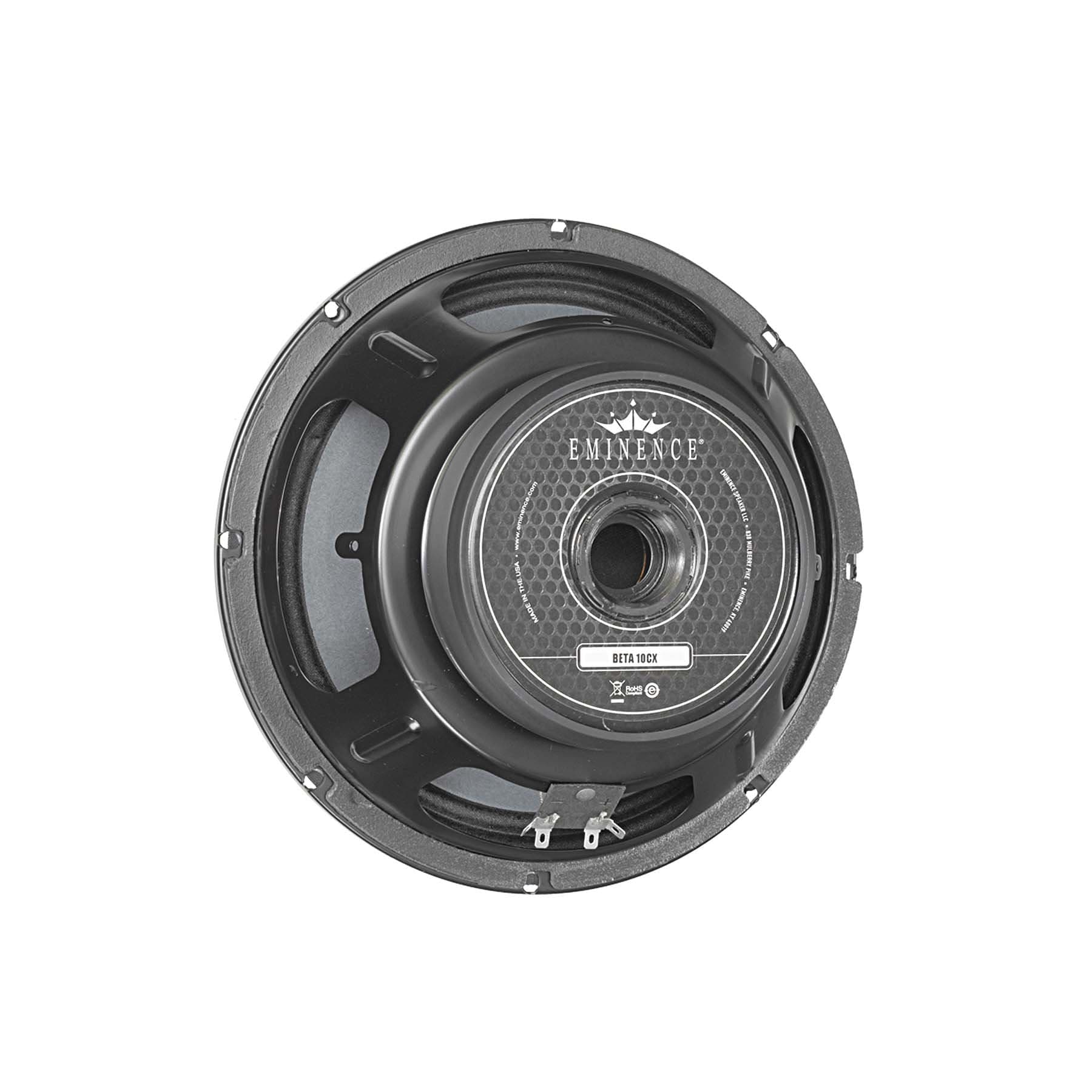

Eminence
BETA 10CX
10"
Lower price
Xmax5mm-29%
Qts0.38+19%
BL10.9Tm+18%
Vas61.1L-50%
Qes0.41+5%
47%
Similarity
4% more£88.74
Dayton Audio
DSA270-8
10"
Higher price
Xmax5.5mm-21%
Qts0.39+22%
BL11.2Tm+22%
Vas88.1L-27%
Qes0.47+21%
72%
Similarity
102% more£171.95

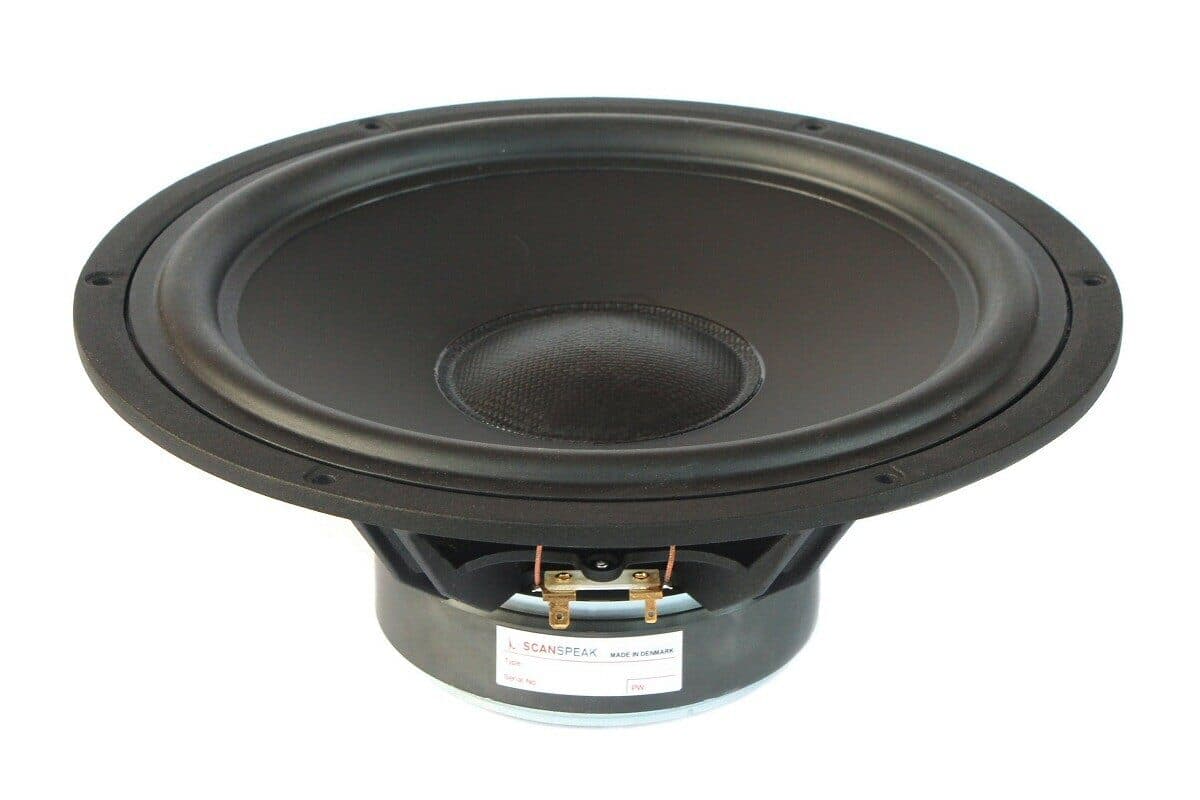

Scanspeak
26W/4534G00
10"
Higher price
Xmax6mm-14%
Qts0.36+12%
BL8.8Tm-4%
Vas156L+29%
Qes0.37-5%
47%
Similarity
331% more£366.95
Scanspeak
26W/8867T00
10"
Higher price
Xmax9mm+29%
Qts0.29-9%
BL11.2Tm+22%
Vas176L+45%
Qes0.31-21%
85%
Similarity
Visaton
W 250 S
10"
Xmax7mm0%
Qts0.35+9%
BL8.9Tm-3%
Vas135L+12%
Qes0.43+10%
78%
Similarity
HiVi
SS10
10"
Xmax7.3mm+4%
Qts0.36+12%
BL10.4Tm+14%
Vas105.7L-13%
Qes0.38-3%
65%
Similarity
Dayton Audio
RS270P-4A
10"
Xmax6mm-14%
Qts0.27-16%
BL10.9Tm+18%
Vas110.5L-9%
Qes0.34-13%
63%
Similarity
Beyma
210BR60V28
10"
Xmax6.5mm-7%
Qts0.39+22%
BL10.9Tm+18%
Vas142L+17%
Qes0.44+13%
Image unavailable
62%
Similarity
Wavecor
WF275BD01
10"
Xmax9mm+29%
Qts0.37+16%
BL8.9Tm-3%
Vas81.5L-33%
Qes0.38-3%
57%
Similarity
Beyma
110CX3FE8
10"
Xmax6.7mm-4%
Qts0.38+19%
BL11.7Tm+27%
Vas63L-48%
Qes0.41+5%
49%
Similarity
Audio Technology
10 A 77 25 10
10"
Xmax8.6mm+23%
Qts0.26-19%
BL11.3Tm+23%
Vas140L+16%
Qes0.29-26%
