Overview
LF Driver
Beyma
Beyma 210BR60V28
Beyma 210BR60V28 is a 10" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 29Hz, Qts 0.39, Vas 142L, Xmax 6.5mm, sensitivity 91dB, plus 247cm³ Vd and 66 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
100W
Sensitivity
91.0dB
92.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
66
Either alignment
Vd
247cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,603 selected pixels of 4,796 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,249 selected pixels of 3,249
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs29Hz
Qts0.39
Qes0.44
Qms3.3
Vas142.0L
Re6.5Ω
Le1.14mH
BL10.9Tm
Sd380cm²
Mms44g
Xmax6.5mm
SPL91dB
Power100W
Impedance8Ω
F Low30Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
210BR60V28
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£170.95
Scanspeak
26W/8534G00
10"
Xmax6mm-8%
Qts0.4+3%
BL10.1Tm-7%
Vas150L+6%
Qes0.42-5%
78%
Similarity
£73.95
Visaton
W 250 S - 4 OHM
10"
Xmax7mm+8%
Qts0.35-10%
BL8.9Tm-18%
Vas135L-5%
Qes0.43-2%
77%
Similarity
£88.74
Dayton Audio
DSA270-8
10"
Xmax5.5mm-15%
Qts0.390%
BL11.2Tm+3%
Vas88.1L-38%
Qes0.47+7%
75%
Similarity
Beyma
110CX3FE8
10"
Xmax6.7mm+3%
Qts0.38-3%
BL11.7Tm+7%
Vas63L-56%
Qes0.41-7%
74%
Similarity
HiVi
SS10
10"
Xmax7.3mm+12%
Qts0.36-8%
BL10.4Tm-4%
Vas105.7L-26%
Qes0.38-14%
72%
Similarity
£170.95
Scanspeak
26W/4534G00
10"
Xmax6mm-8%
Qts0.36-8%
BL8.8Tm-19%
Vas156L+10%
Qes0.37-16%
71%
Similarity
HiVi
W10
10"
Xmax7mm+8%
Qts0.37-5%
BL12.8Tm+17%
Vas81.4L-43%
Qes0.45+2%
70%
Similarity
Dayton Audio
DA270-8
10"
Xmax6.1mm-6%
Qts0.43+10%
BL10.1Tm-7%
Vas108.5L-24%
Qes0.55+25%
69%
Similarity
£251.95

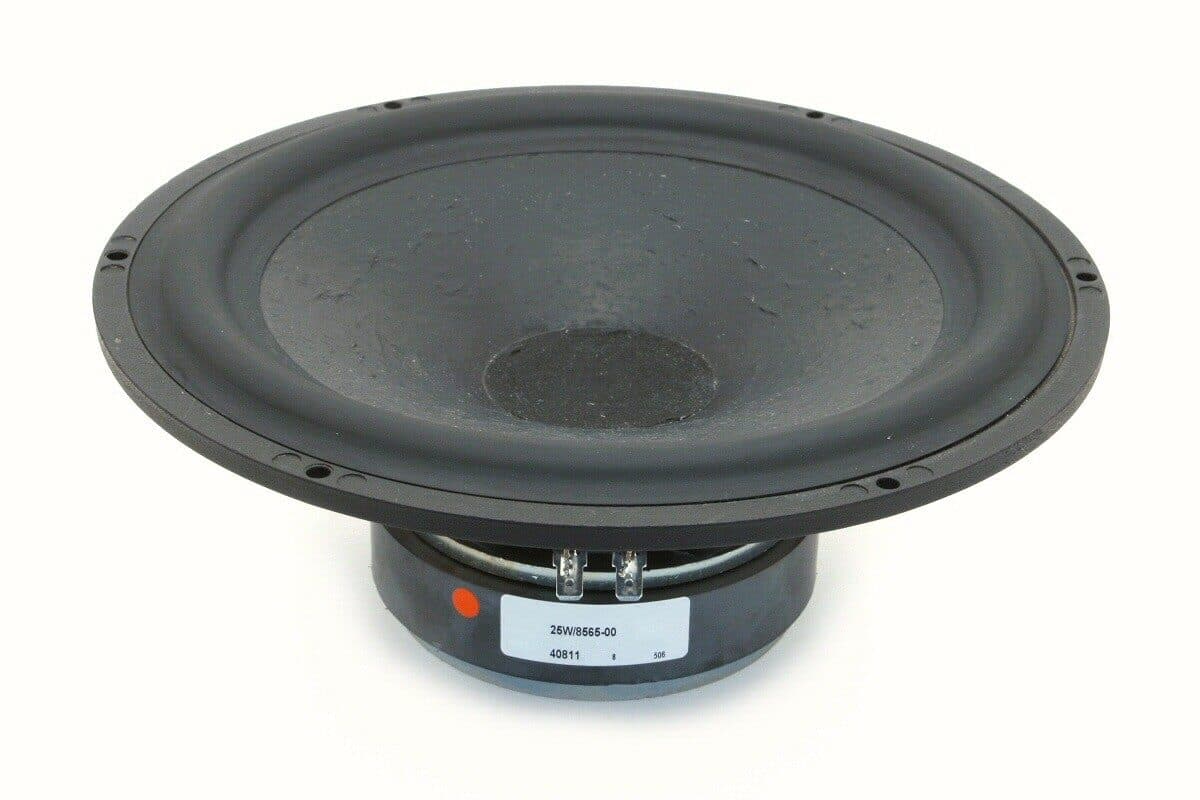

Scanspeak
25W/8565-00
10"
Xmax6.5mm0%
Qts0.41+5%
BL8.2Tm-25%
Vas225L+58%
Qes0.440%
68%
Similarity
£85.19
Visaton
W 250 S
10"
Xmax7mm+8%
Qts0.32-18%
BL9.2Tm-16%
Vas121L-15%
Qes0.39-11%
68%
Similarity
Visaton
W 250 S - 8 OHM
10"
Xmax7mm+8%
Qts0.32-18%
BL9.2Tm-16%
Vas121L-15%
Qes0.39-11%
67%
Similarity
£82.50
Eminence
BETA 10CX
10"
Xmax5mm-23%
Qts0.38-3%
BL10.9Tm0%
Vas61.1L-57%
Qes0.41-7%
