Overview
LF Driver
Dayton Audio
Dayton Audio DA270-8
Dayton Audio DA270-8 is a 10" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 28Hz, Qts 0.43, Vas 108.5L, Xmax 6.1mm, sensitivity 88.3dB, plus 211cm³ Vd and 51 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
80W
Sensitivity
88.3dB
EBP
51
Either alignment
Vd
211cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees240 ptsp1medium
30 degrees240 ptsp1medium
45 degrees240 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 4 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
240 plotted pointsMedium confidence1,696 selected pixels of 1,719 - Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence870 selected pixels of 1,547 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence599 selected pixels of 1,895 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence1,615 selected pixels of 1,615
T/S Parameters
Valid
Fs28Hz
Qts0.43
Qes0.55
Qms1.9
Vas108.5L
Re6.3Ω
Le1.20mH
BL10.1Tm
Sd346cm²
Mms51g
Xmax6.1mm
SPL88dB
Power80W
Impedance8Ω
F Low25Hz
F High6000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter270.0mm
Overall Depth115.0mm
Cutout Diameter227.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
DA270-8
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
£70.25
Dayton Audio
DS270-8
10"
Xmax5.5mm-10%
Qts0.44+2%
BL10.1Tm0%
Vas87.7L-19%
Qes0.54-2%
84%
Similarity
Dayton Audio
SD270A-88
10"
Xmax6mm-2%
Qts0.430%
BL7.8Tm-23%
Vas107.5L-1%
Qes0.5-9%
81%
Similarity
£110.93
Dayton Audio
RS270-8
10"
Xmax6.6mm+8%
Qts0.47+9%
BL10.3Tm+2%
Vas96.5L-11%
Qes0.61+11%
74%
Similarity
£170.95

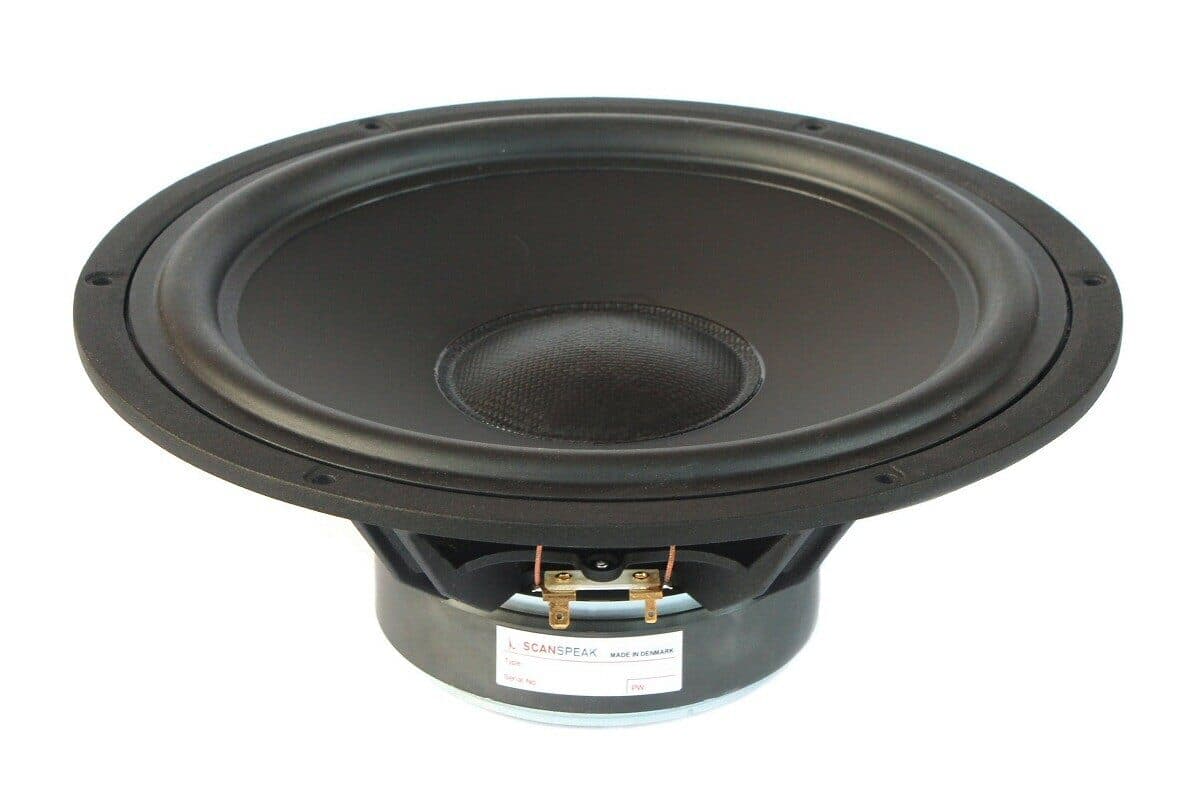

Scanspeak
26W/8534G00
10"
Xmax6mm-2%
Qts0.4-7%
BL10.1Tm0%
Vas150L+38%
Qes0.42-24%
72%
Similarity
£88.74
Dayton Audio
DSA270-8
10"
Xmax5.5mm-10%
Qts0.39-9%
BL11.2Tm+11%
Vas88.1L-19%
Qes0.47-15%
70%
Similarity
Beyma
210BR60V28
10"
Xmax6.5mm+7%
Qts0.39-9%
BL10.9Tm+8%
Vas142L+31%
Qes0.44-20%
68%
Similarity
Monacor
SP-252C
10"
Xmax5mm-18%
Qts0.41-5%
BL8.1Tm-20%
Vas96L-12%
Qes0.47-15%
63%
Similarity
HiVi
SS10
10"
Xmax7.3mm+20%
Qts0.36-16%
BL10.4Tm+3%
Vas105.7L-3%
Qes0.38-31%
60%
Similarity

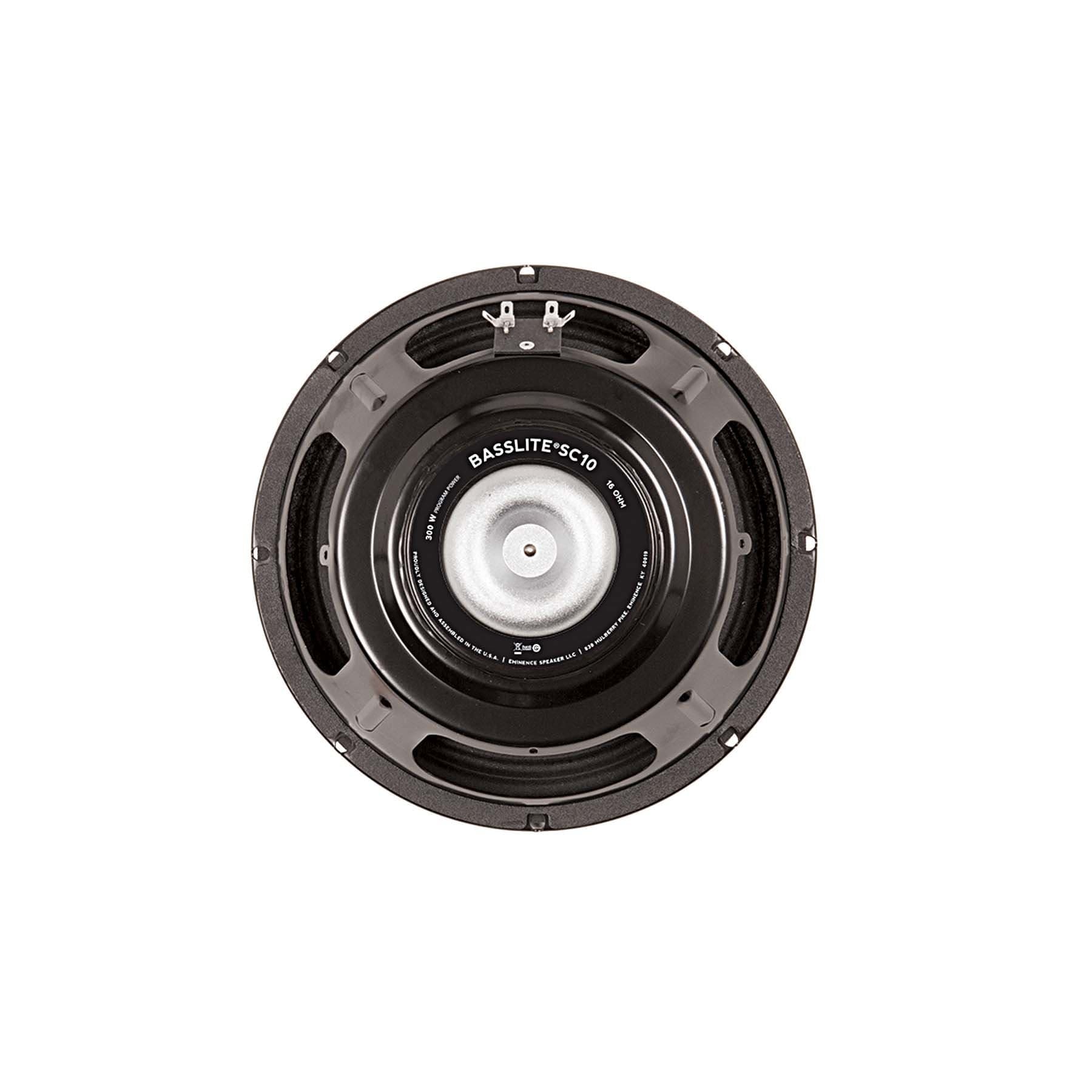

Eminence
