Overview
LF Driver
Tang Band

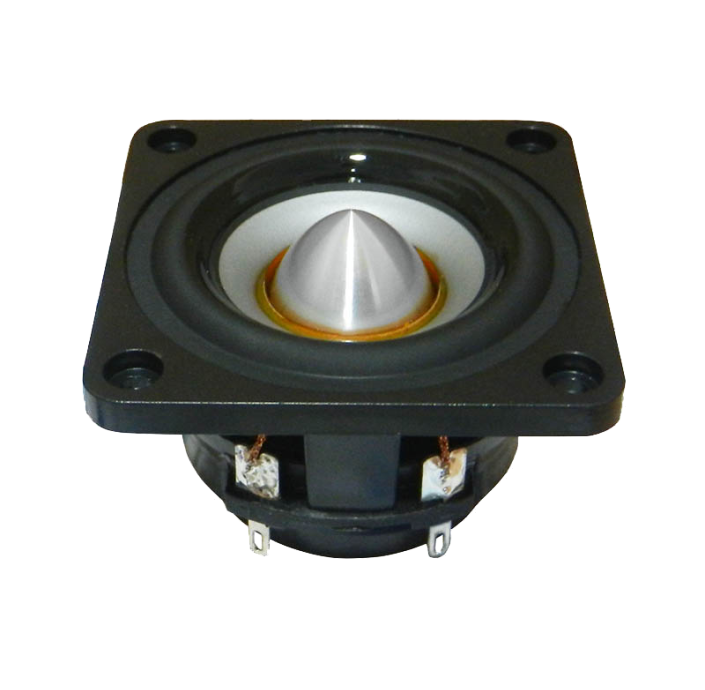

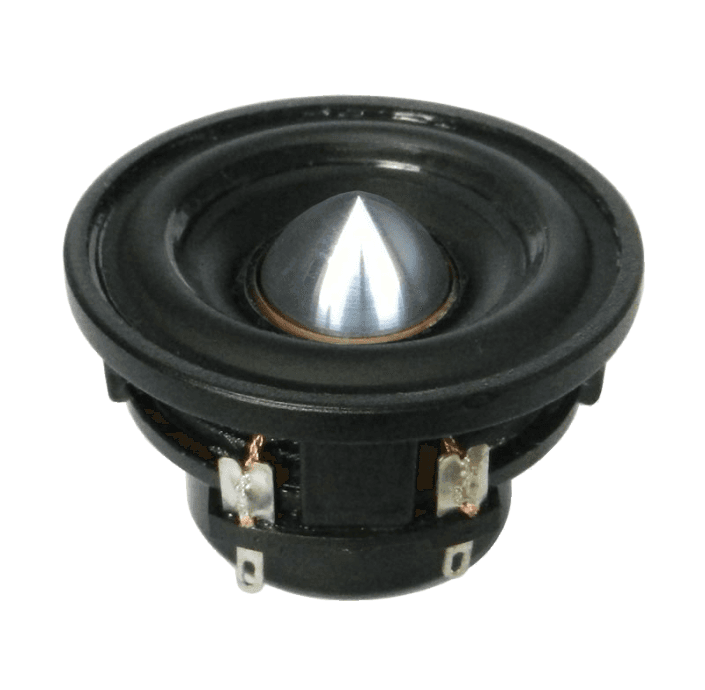

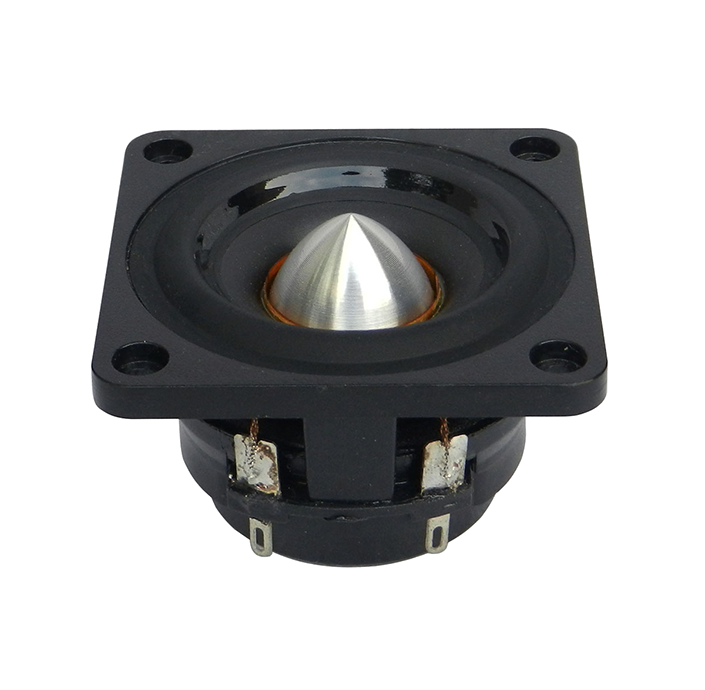

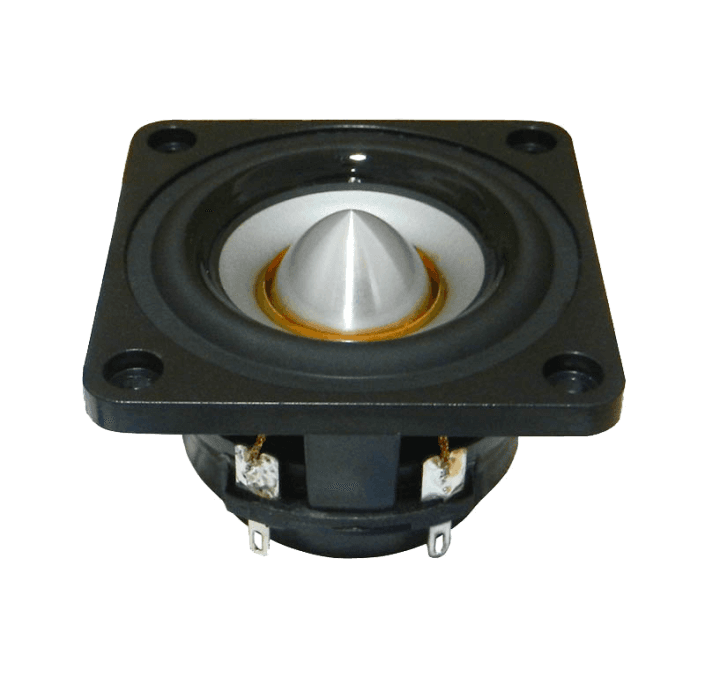

Tang Band W2-802SE
Tang Band W2-802SE is a 2" 6 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 160Hz, Qts 0.36, Vas 0.3L, Xmax 1mm, sensitivity 87dB, plus 1cm³ Vd and 400 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
6Ω
RMS Power
8W
Sensitivity
87.0dB
86.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
400
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,046 selected pixels of 1,282
T/S Parameters
Valid
Fs160Hz
Qts0.36
Qes0.40
Qms3.7
Vas0.3L
Re6.0Ω
Le0.04mH
BL3.5Tm
Sd13cm²
Mms1g
Xmax1.0mm
SPL87dB
Power8W
Impedance6Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
