Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespPeerless FSL-1525R04-04 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFSL series
Peerless

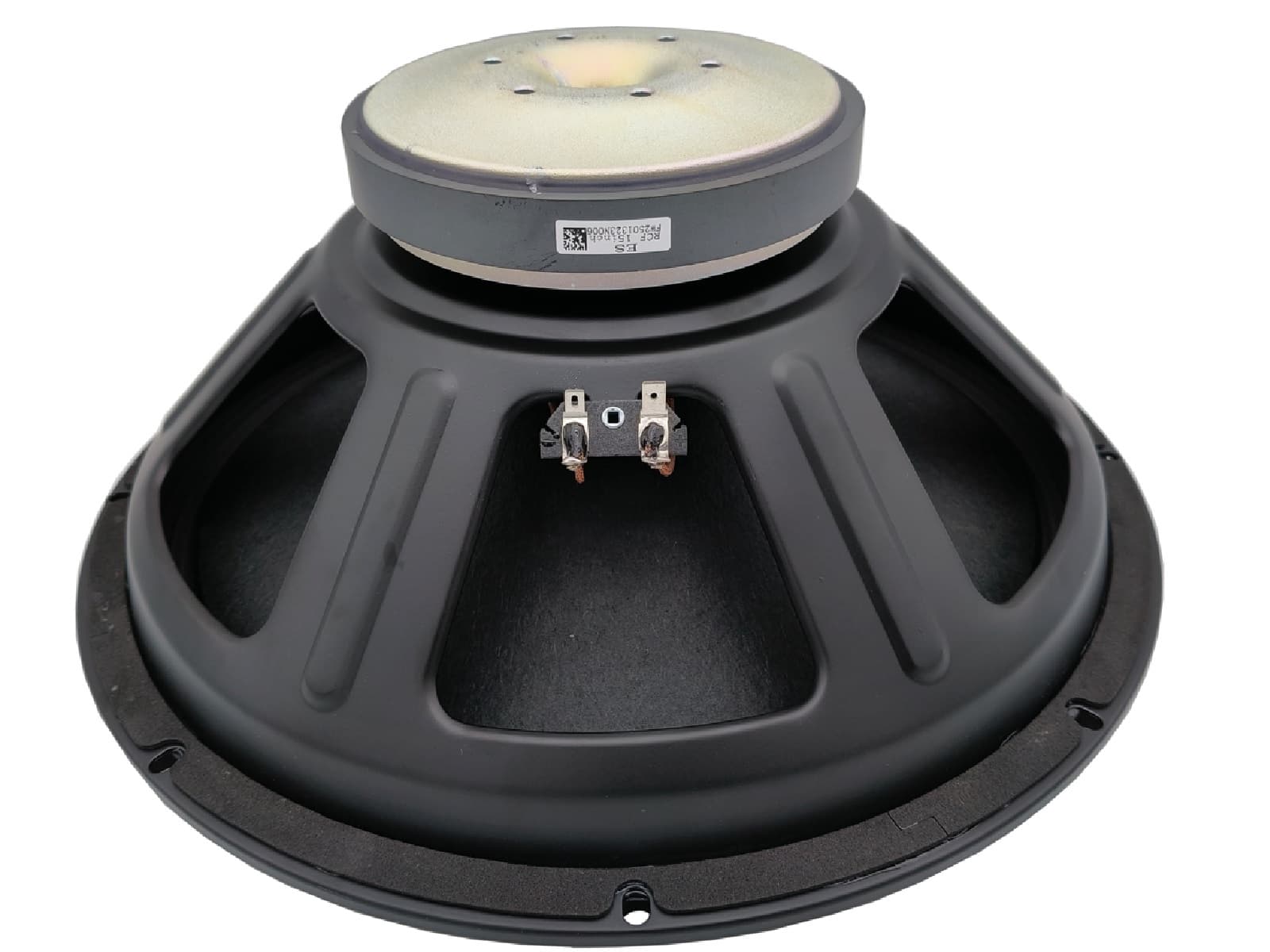

Peerless FSL-1525R04-04
Peerless FSL-1525R04-04 is a 15" 4 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 55Hz, Qts 0.49, Vas 115L, Xmax 5.6mm, sensitivity 97.9dB, plus 476cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
4Ω
RMS Power
250W
Sensitivity
97.9dB
96.5dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
110
Vented alignment
Vd
476cm³
T/S Parameters
Valid
Fs55Hz
Qts0.49
Qes0.50
Qms16.8
Vas115.0L
Re3.4Ω
Le0.47mH
BL13.4Tm
Sd855cm²
Mms77g
Xmax5.6mm
SPL98dB
Power250W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.2kg
