Overview
LF DriverAN series
Monacor

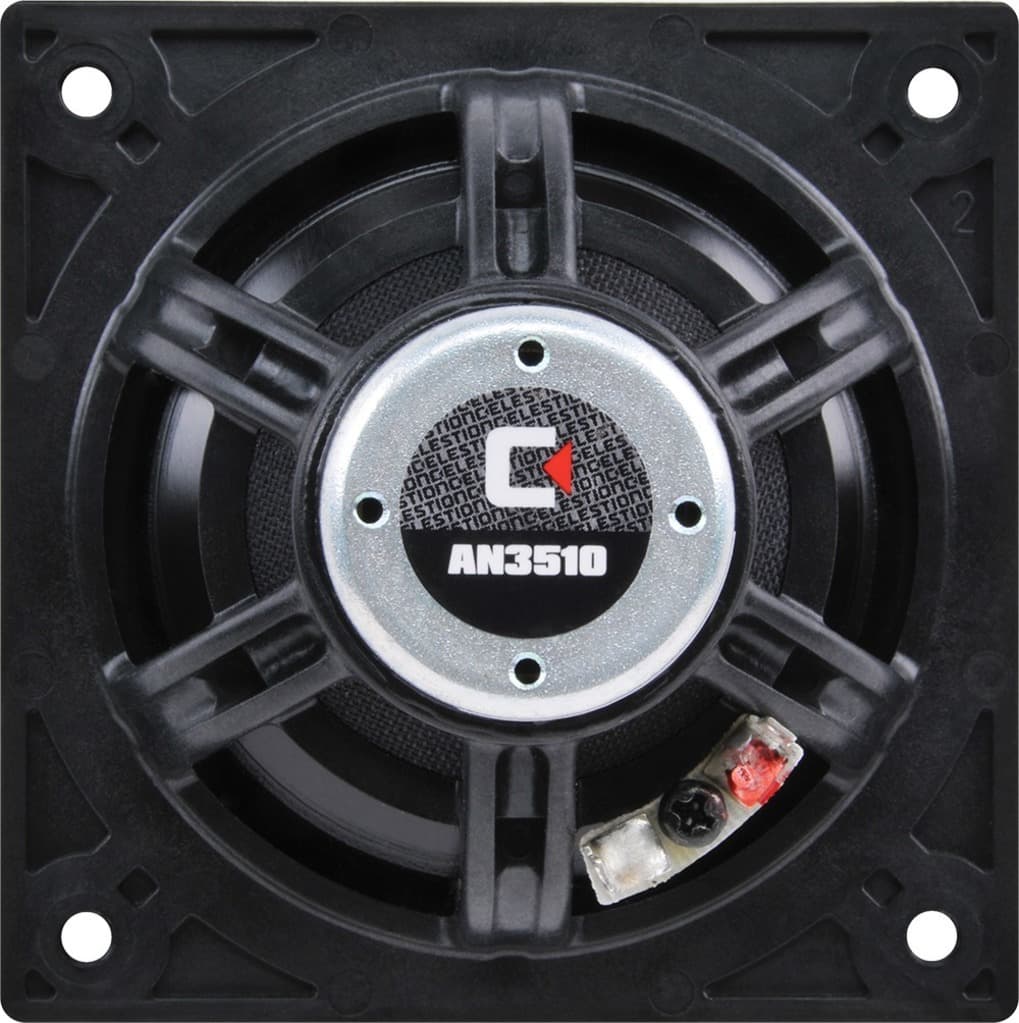

Monacor AN3510/8
Monacor AN3510/8 is a 3" 8 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 113Hz, Qts 0.65, Vas 1.9L, Xmax 2.3mm, sensitivity 87.8dB, plus 9cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
35W
Sensitivity
87.8dB
EBP
153
Vented alignment
Vd
9cm³
T/S Parameters
Valid
Fs113Hz
Qts0.65
Qes0.74
Qms50.1
Vas1.9L
Re5.7Ω
Le0.14mH
BL4.6Tm
Sd38cm²
Mms4g
Xmax2.3mm
SPL88dB
Power35W
Impedance8Ω
F Low98Hz
F High18500Hz
Voice Coil25mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter89.3mm
Overall Depth50.0mm
Cutout Diameter78.8mm
