LF DriverWAF102 series
Lavoce
Lavoce WAF102.51
Lavoce WAF102.51 is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 70Hz, Qts 0.42, Vas 21.4L, Xmax 6.0mm, sensitivity 94.3dB, plus 208cm³ Vd and 159 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £83.47.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
94.3dB
95.5dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
159
Vented alignment
Vd
208cm³
T/S Parameters
Valid
Fs70Hz
Qts0.42
Qes0.44
Qms7.2
Vas21.4L
Re5.7Ω
Le0.90mH
BL15.6Tm
Sd350cm²
Mms43g
Xmax6.0mm
SPL94dB
Power350W
Impedance8Ω
Min Impedance6.5Ω
F Low70Hz
F High4000Hz
Voice Coil65mm
Pricing & availability
Price definitionsPrice movement
Best current price
£83.47
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

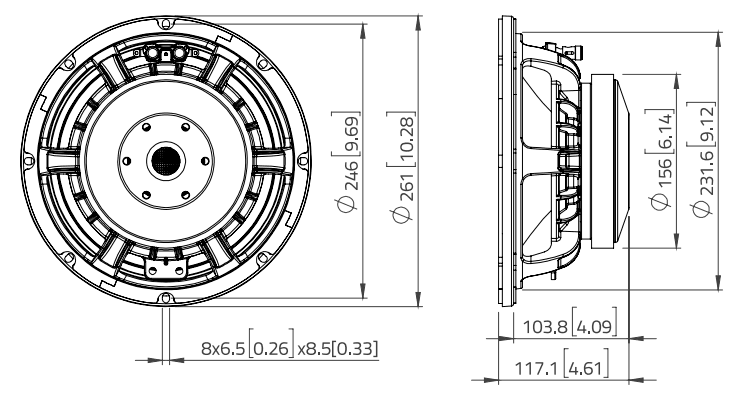

Dimensions & Physical
Weight4.8kg
