Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverKAPPA PRO series
Eminence

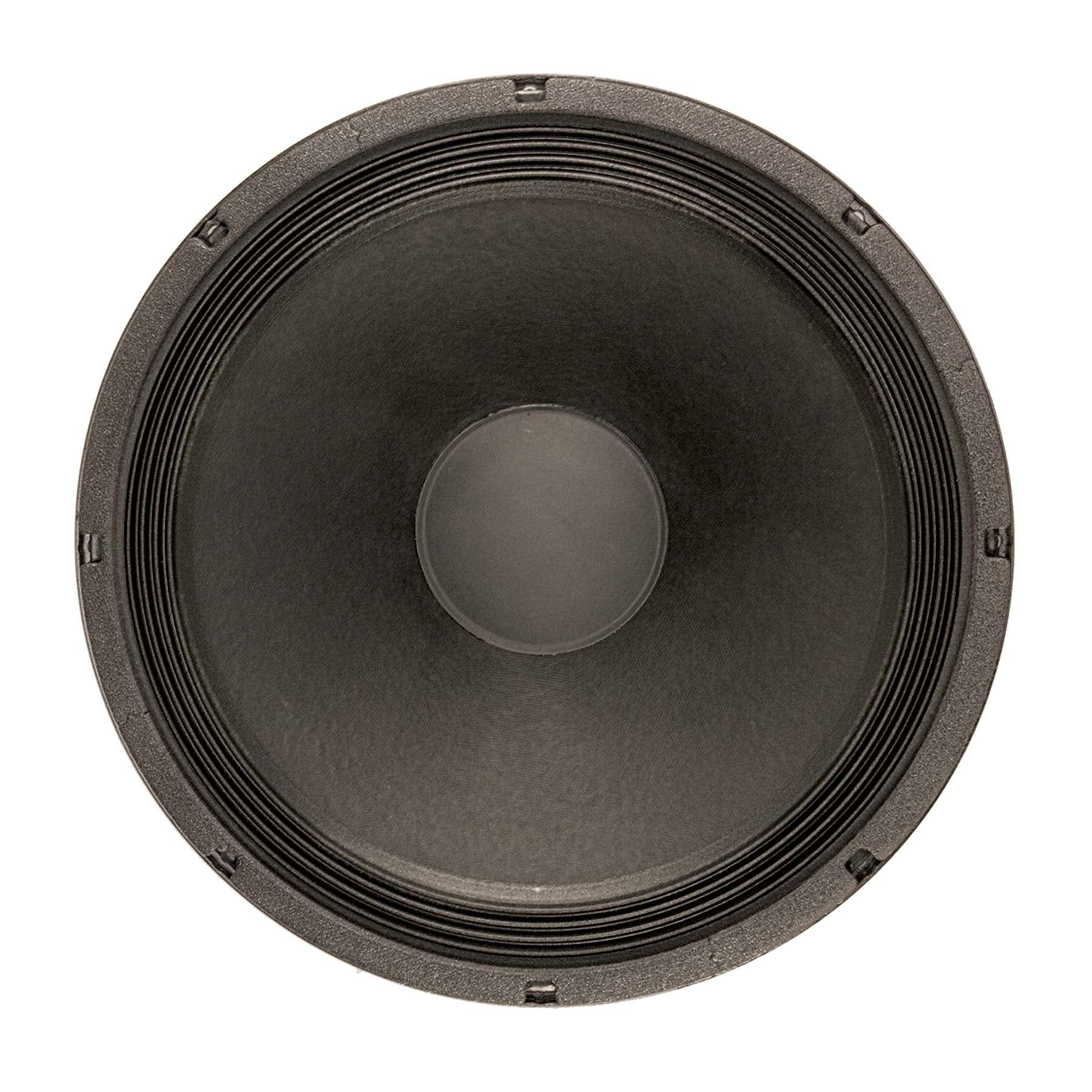

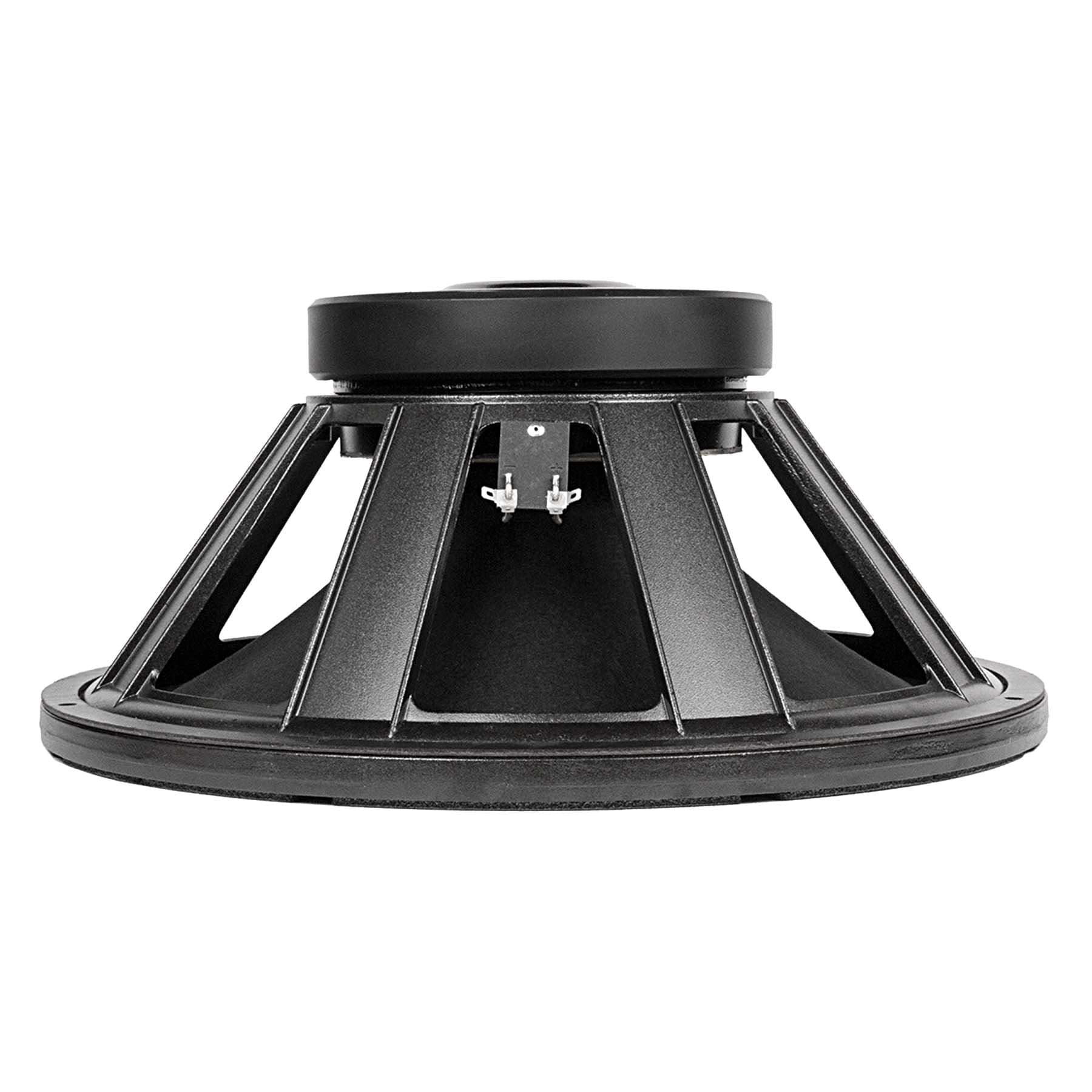

Eminence KAPPA PRO 18LF2
Eminence KAPPA PRO 18LF2 is a 18" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 32Hz, Qts 0.33, Vas 391.6L, Xmax 8mm, sensitivity 97.8dB, plus 927cm³ Vd and 94 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £199.00.
Size
18"
Impedance
8Ω
RMS Power
800W
Sensitivity
97.8dB
EBP
94
Either alignment
Vd
927cm³
T/S Parameters
Valid
Fs32Hz
Qts0.33
Qes0.34
Qms10.7
Vas391.6L
Re5.4Ω
Le1.21mH
BL19.4Tm
Sd1159cm²
Mms119g
Xmax8.0mm
SPL98dB
Power800W
Impedance8Ω
F Low38Hz
F High0Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£199.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.1kg
Diameter457.2mm
Overall Depth207.0mm
Cutout Diameter421.1mm
Bolt Circle Diameter438.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
KAPPA PRO 18LF2
18"
Best current price
£199.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
61%
Similarity
3% more£205.00
B&C
18PS100
18"
Higher price
Xmax8mm0%
Qts0.39+18%
BL22.5Tm+16%
Vas245L-37%
Qes0.41+21%
57%
Similarity
3% more£205.00
B&C
18PS100
18"
Higher price
Xmax7mm-12%
Qts0.4+21%
BL20Tm+3%
Vas251L-36%
Qes0.42+24%
58%
Similarity
8% more£215.75
RCF
LF18G401
18"
Higher price
Xmax9mm+13%
Qts0.29-12%
BL24.6Tm+27%
Vas268L-32%
Qes0.3-12%
78%
Similarity
13% more£225.00
RCF
L18P300
18"
Higher price
Xmax8mm0%
Qts0.330%
BL23.5Tm+21%
Vas226L-42%
Qes0.340%
73%
Similarity
14% more£226.82
FaitalPRO
18FH510
18"
Higher price
Xmax9.3mm+16%
Qts0.29-12%
BL21Tm+8%
Vas411.9L+5%
Qes0.3-12%
59%
Similarity
16% more£229.99
B&C
18PZW100
18"
Higher price
Xmax8mm0%
Qts0.36+9%
BL25.5Tm+32%
Vas186L-53%
Qes0.38+12%
42%
Similarity
16% more£230.00
Celestion
ERPROX18
18"
Higher price
Xmax9.5mm+19%
Qts0.38+15%
BL24.4Tm+26%
Vas188.9L-52%
Qes0.43+27%
54%
Similarity
20% more£238.00
B&C
18PZB100
18"
Higher price
Xmax8mm0%
Qts0.28-15%
BL25Tm+29%
Vas164L-58%
Qes0.29-15%
72%
Similarity
20% more£238.99
B&C
18TBX100
18"
Higher price
Xmax9mm+13%
Qts0.31-6%
BL22Tm+13%
Vas256L-35%
Qes0.33-3%
58%
Similarity
20% more£238.99
B&C
18TBX100
18"
Higher price
Xmax9mm+13%
Qts0.35+6%
BL25.5Tm+32%
Vas212L-46%
Qes0.37+9%
60%
Similarity
23% more£245.00
RCF
L18P400
18"
Higher price
Xmax9mm+13%
Qts0.28-15%
BL24.6Tm+27%
Vas340L-13%
Qes0.29-15%
39%
Similarity
25% more£249.41
FaitalPRO
18HP1042
18"
Higher price
Xmax9mm+13%
Qts0.41+24%
BL24.5Tm+26%
Vas191.9L-51%
Qes0.43+26%
