LF DriverDELTA series
Eminence

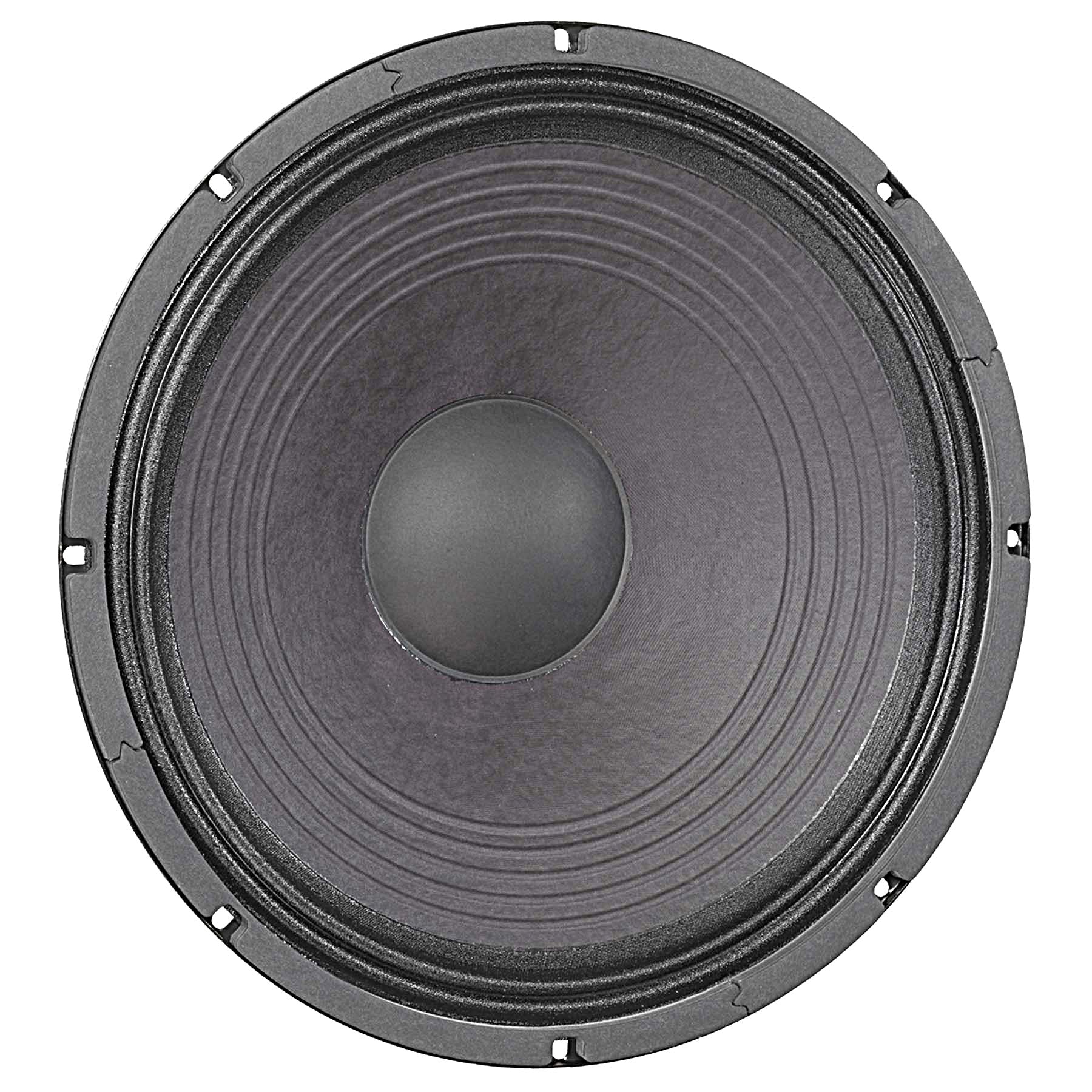

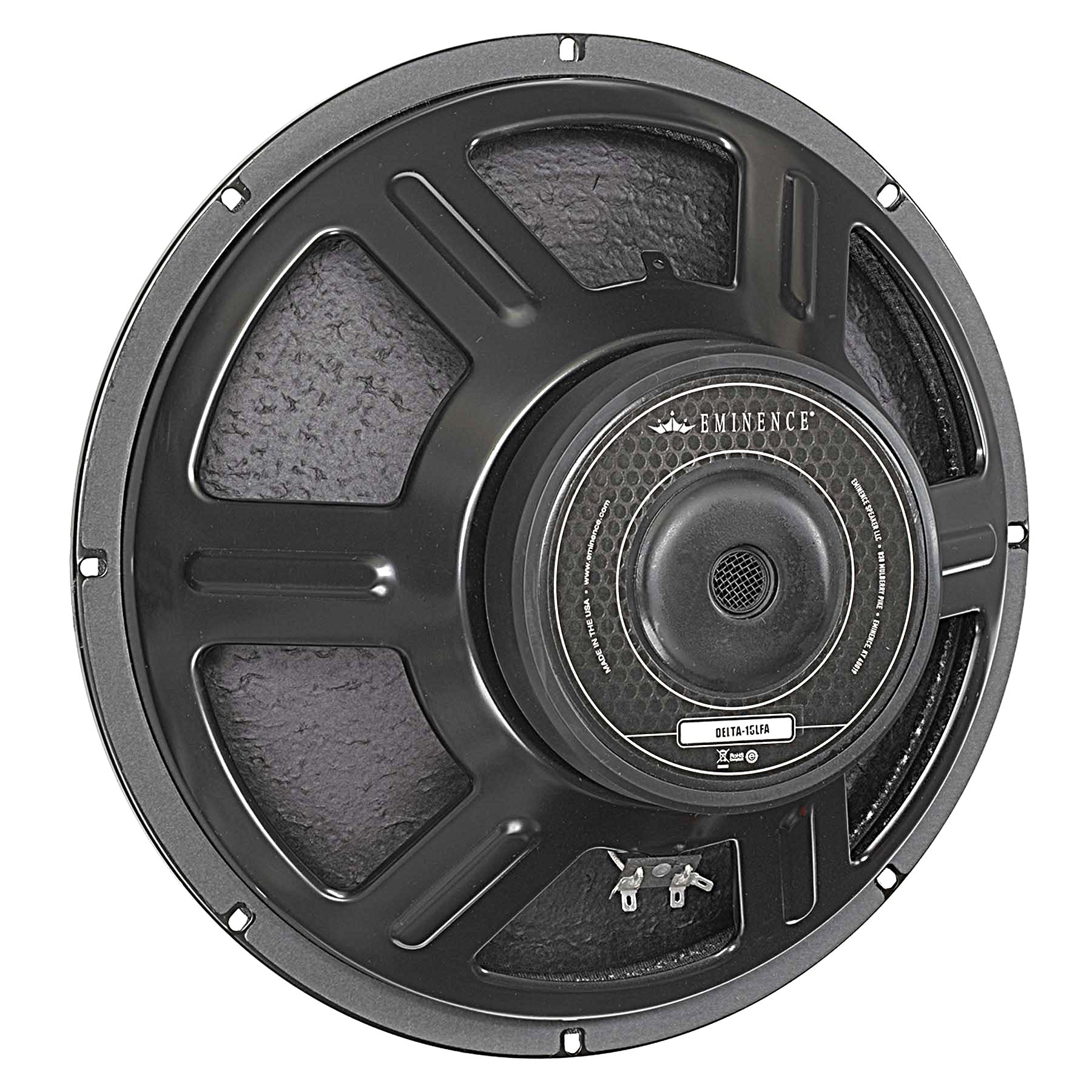

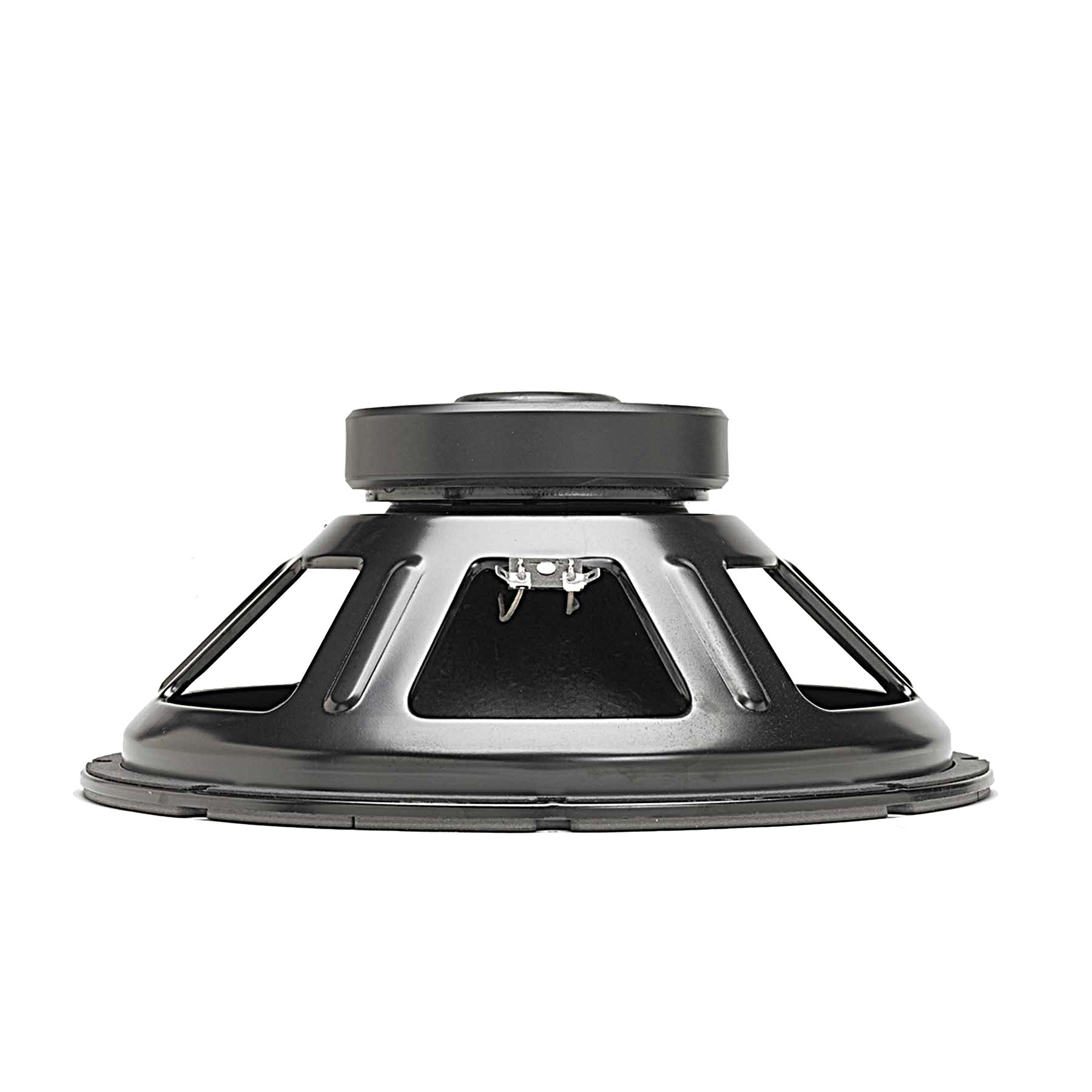

Eminence DELTA 15LFA
Eminence DELTA 15LFA is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 39Hz, Qts 0.48, Vas 241L, Xmax 4.8mm, sensitivity 96.4dB, plus 419cm³ Vd and 75 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £135.00.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
96.4dB
EBP
75
Either alignment
Vd
419cm³
T/S Parameters
Valid
Fs39Hz
Qts0.48
Qes0.52
Qms6.3
Vas241.0L
Re6.1Ω
Le1.37mH
BL14.6Tm
Sd873cm²
Mms75g
Xmax4.8mm
SPL96dB
Power500W
Impedance8Ω
F Low42Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£135.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.8kg
Diameter384.8mm
Overall Depth160.0mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
