Overview
LF Driver
Beyma
Beyma 115CXA4FE8
Beyma 115CXA4FE8 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 40Hz, Qts 0.42, Vas 191L, Xmax 6mm, sensitivity 96.6dB, plus 528cm³ Vd and 93 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.6dB
98.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
93
Either alignment
Vd
528cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response183 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
183 plotted pointsMedium confidence1,160 selected pixels of 8,412
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs40Hz
Qts0.42
Qes0.43
Qms16.4
Vas191.0L
Re6.3Ω
Le0.95mH
BL18.2Tm
Sd880cm²
Mms90g
Xmax6.0mm
SPL97dB
Power400W
Impedance8Ω
F Low35Hz
F High20000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
115CXA4FE8
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£169.00

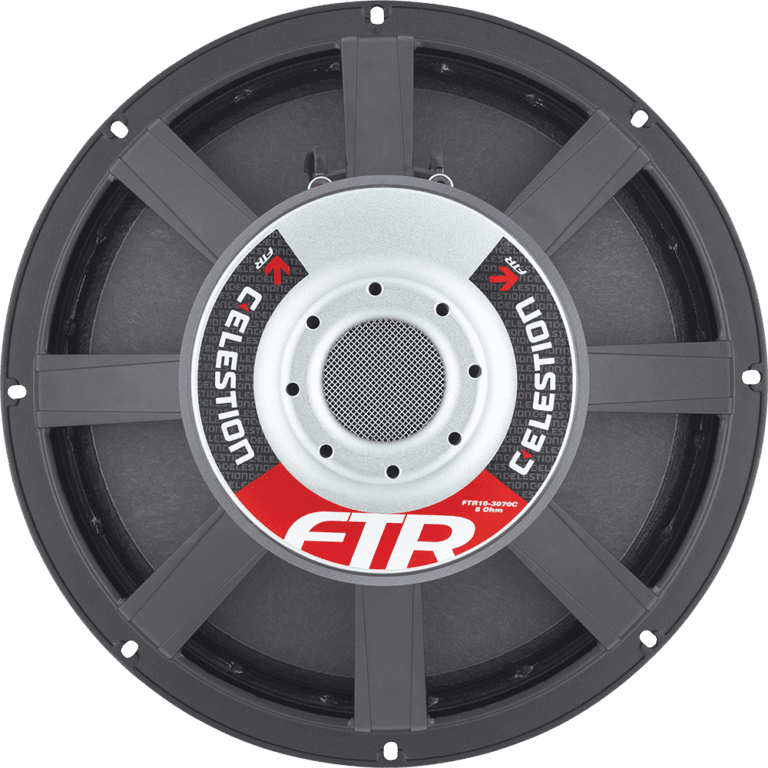

Celestion
FTR15-3070C
15"
Xmax5.5mm-8%
Qts0.38-9%
BL17.3Tm-5%
Vas187.6L-2%
Qes0.430%
86%
Similarity

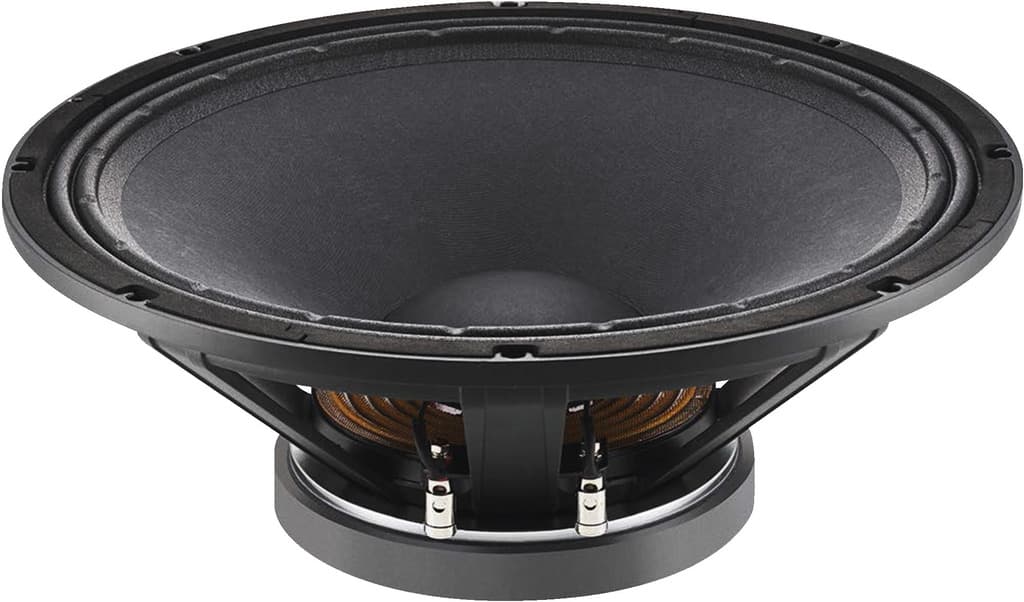

Monacor
FTR15-3070C/8
15"
Xmax5.5mm-8%
Qts0.38-9%
BL17.3Tm-5%
Vas187.6L-2%
Qes0.430%
83%
Similarity
Beyma
15CXA400ND
15"
Xmax6mm0%
Qts0.36-14%
BL19Tm+4%
Vas196L+3%
Qes0.39-9%
81%
Similarity

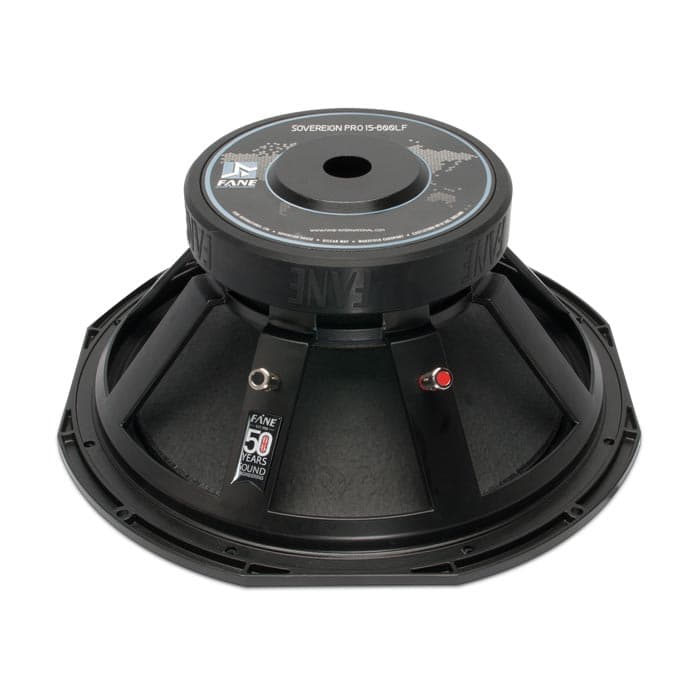

Fane
SOVEREIGN PRO 15-600
15"
Xmax6mm0%
Qts0.35-16%
BL17.5Tm-4%
Vas201L+5%
Qes0.39-9%
81%
Similarity
£162.00

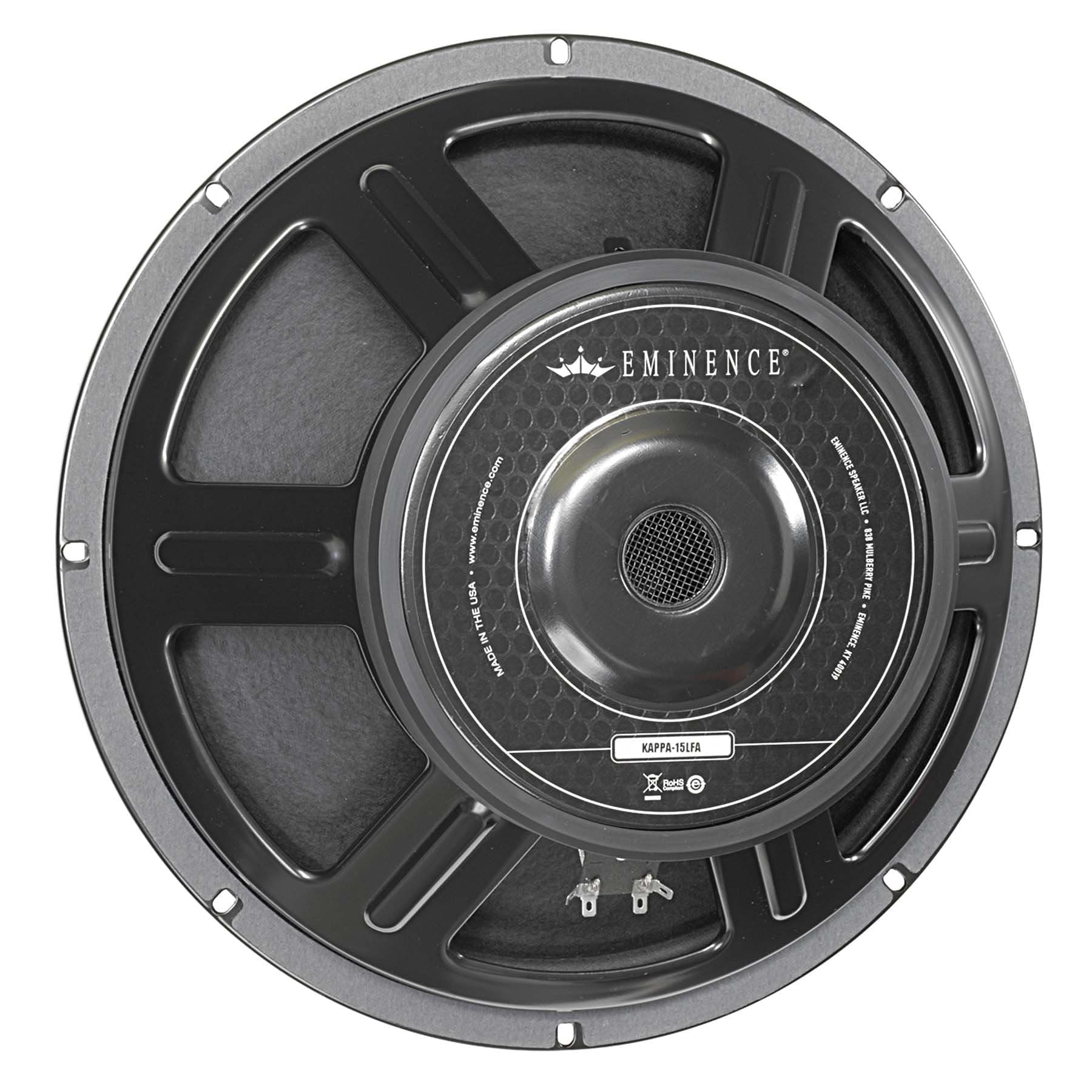

Eminence
KAPPA-15LFA
15"
Xmax5.5mm-8%
Qts0.38-10%
BL18.6Tm+2%
Vas159L-17%
Qes0.41-5%
79%
Similarity
P.Audio
15NT-76MB
15"
Xmax5.2mm-13%
Qts0.43+2%
BL19Tm+5%
Vas133.7L-30%
Qes0.45+5%
78%
Similarity
£249.00

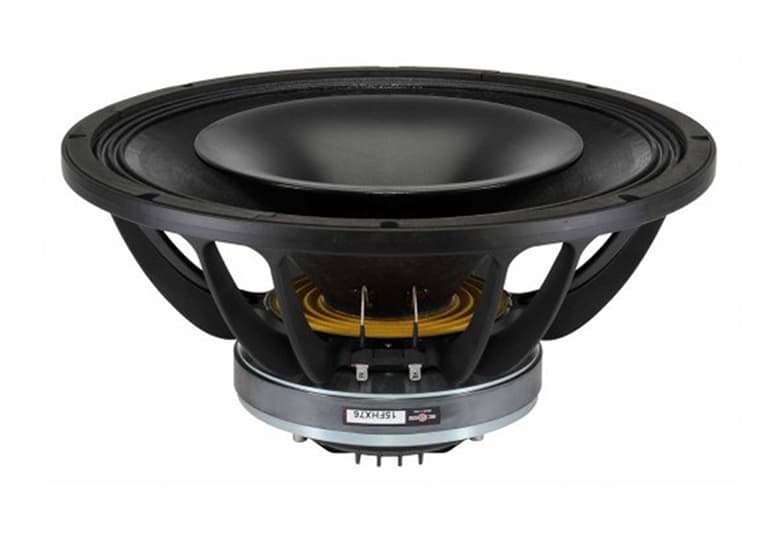

B&C
15FHX76
15"
Xmax7mm+17%
Qts0.43+2%
BL15.5Tm-15%
Vas186L-3%
Qes0.47+9%
77%
Similarity
£197.38
RCF
MB15N301
15"
Xmax6mm0%
Qts0.37-12%
BL19.2Tm+5%
Vas134L-30%
Qes0.39-9%
77%
Similarity

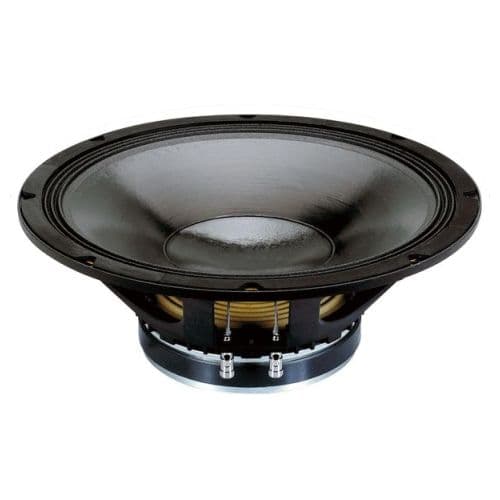

CIARE
PW396
15"
Xmax6.5mm+8%
Qts0.41-2%
BL20.5Tm+13%
Vas129L-32%
Qes0.41-5%
76%
Similarity
P.Audio
15BM-500B-V3
15"
Xmax4.8mm-20%
Qts0.37-12%
BL17.8Tm-2%
Vas183.4L-4%
Qes0.41-5%
76%
Similarity
£454.74

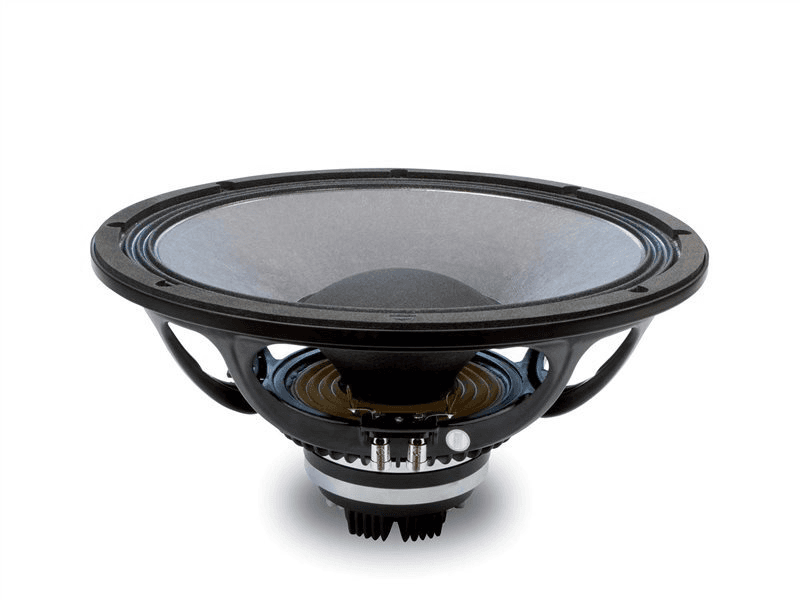

Eighteen Sound
15NCX750
15"
Xmax5.5mm-8%
Qts0.37-12%
BL18.4Tm+1%
Vas141L-26%
Qes0.4-7%
76%
Similarity
£470.84

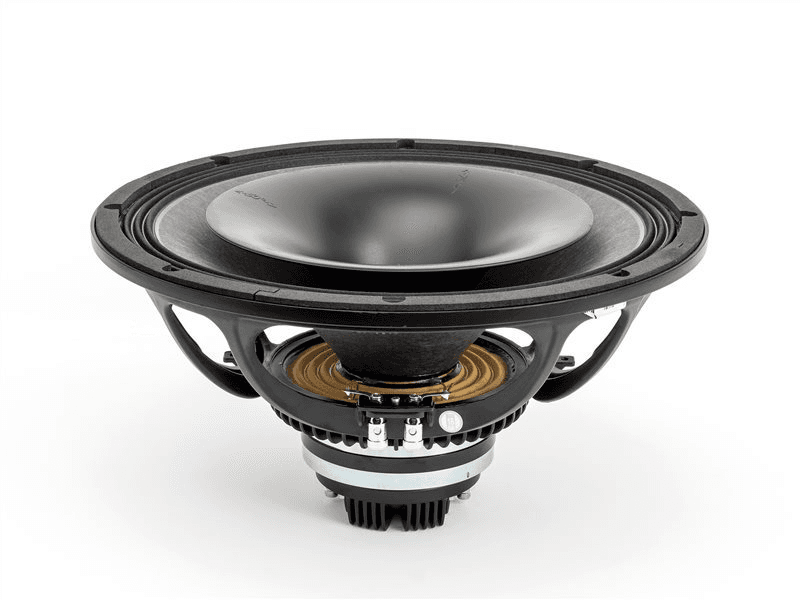

Eighteen Sound
