Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 112P10ND8 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 112P10ND8
Beyma 112P10ND8 is a 12" 8 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 47Hz, Qts 0.26, Vas 49L, Xmax 8mm, sensitivity 94.8dB, plus 440cm³ Vd and 174 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
900W
Sensitivity
94.8dB
96.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
174
Vented alignment
Vd
440cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,357 selected pixels of 4,361 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,175 selected pixels of 3,175
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs47Hz
Qts0.26
Qes0.27
Qms7.9
Vas49.0L
Re5.1Ω
Le2.00mH
BL23.5Tm
Sd550cm²
Mms100g
Xmax8.0mm
SPL95dB
Power900W
Impedance8Ω
F Low50Hz
F High2000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.4kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112P10ND8
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£194.77

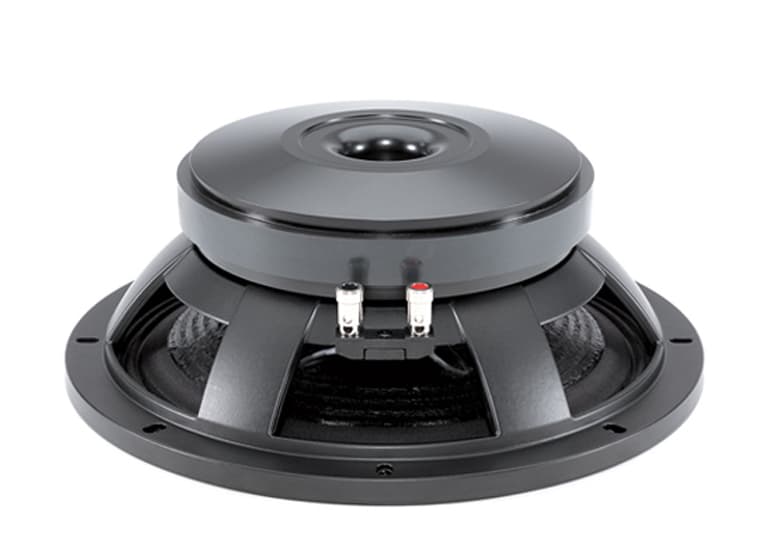

B&C
12PS100
12"
Xmax8mm0%
Qts0.27+4%
BL22.5Tm-4%
Vas47L-4%
Qes0.29+7%
89%
Similarity
£187.93
RCF
MB12X351
12"
Xmax7mm-12%
Qts0.260%
BL22.5Tm-4%
Vas46L-6%
Qes0.270%
88%
Similarity
Sica
12 K 4 PL
12"
Xmax7mm-12%
Qts0.25-4%
BL22.9Tm-3%
Vas47.4L-3%
Qes0.270%
86%
Similarity
£218.40

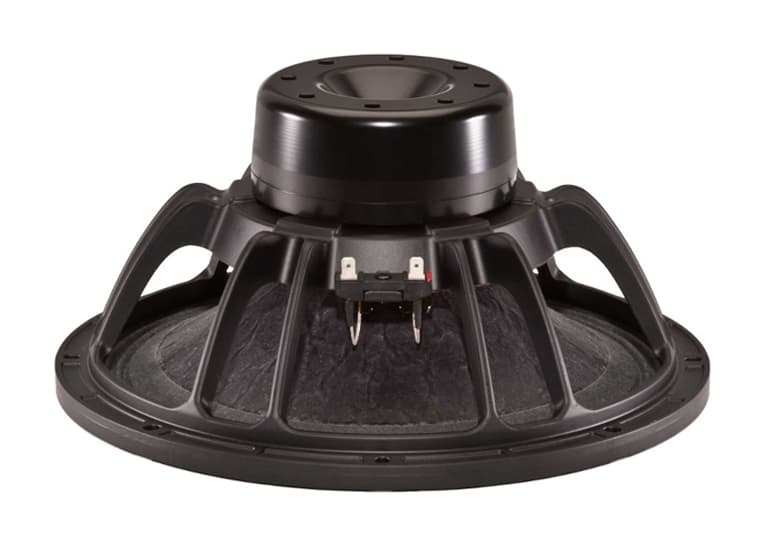

B&C
12NDL88
12"
Xmax8mm0%
Qts0.27+4%
BL19.9Tm-15%
Vas52L+6%
Qes0.29+7%
83%
Similarity
£136.98

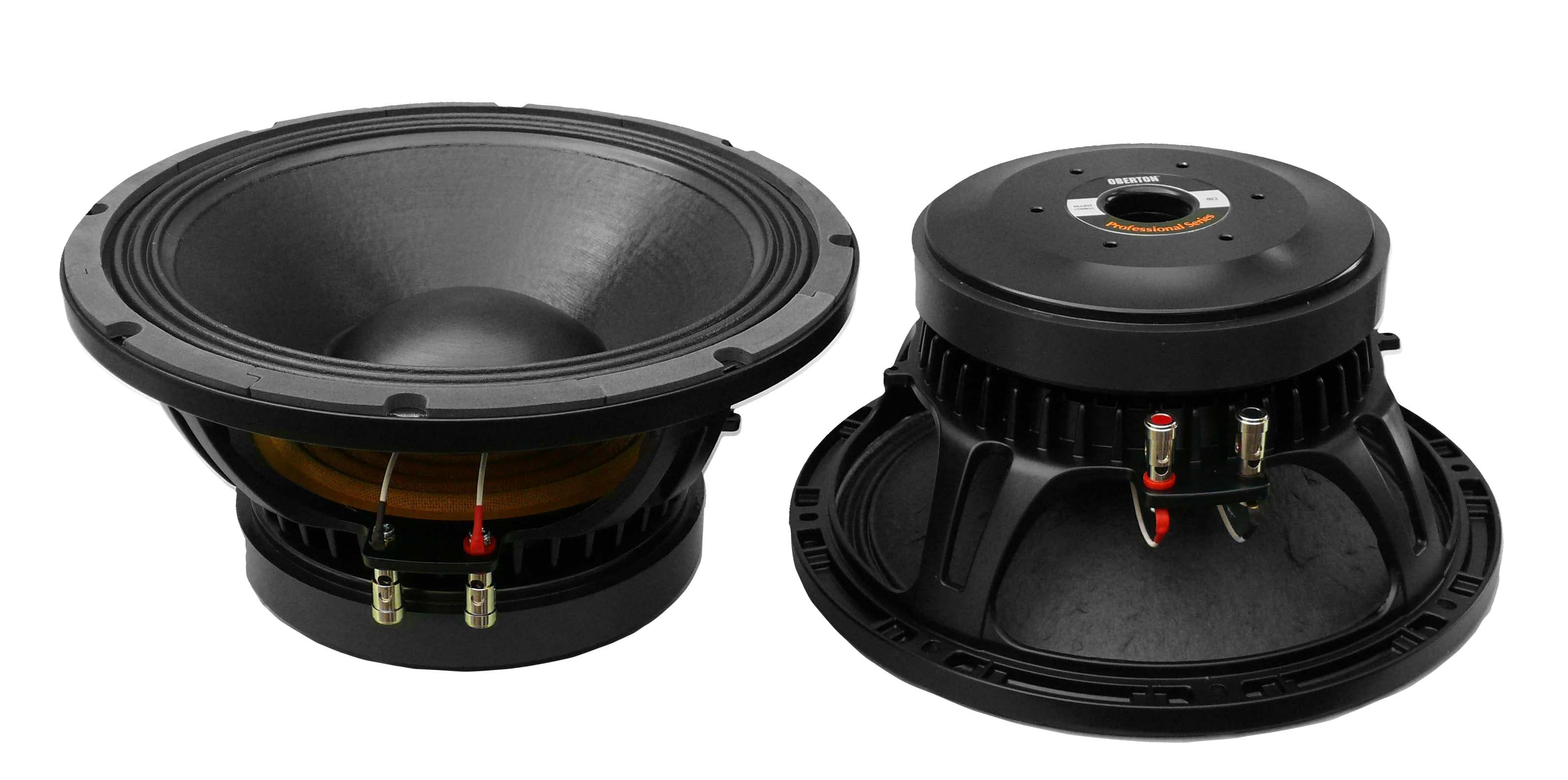

Oberton
