Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 112LX60V28 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 112LX60V28
Beyma 112LX60V28 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 49Hz, Qts 0.38, Vas 43L, Xmax 9mm, sensitivity 93dB, plus 495cm³ Vd and 123 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
93.0dB
96.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
123
Vented alignment
Vd
495cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,460 selected pixels of 4,602 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,927 selected pixels of 3,927
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs49Hz
Qts0.38
Qes0.40
Qms15.3
Vas43.0L
Re5.1Ω
Le2.10mH
BL20.0Tm
Sd550cm²
Mms102g
Xmax9.0mm
SPL93dB
Power700W
Impedance8Ω
F Low35Hz
F High2000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.7kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112LX60V28
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
£172.96
FaitalPRO
12RS550
12"
Xmax9.3mm+3%
Qts0.37-3%
BL20.5Tm+3%
Vas45.4L+6%
Qes0.39-3%
90%
Similarity
£143.50
B&C
12PLB100
12"
Xmax9mm0%
Qts0.37-3%
BL18.4Tm-8%
Vas47L+9%
Qes0.38-5%
85%
Similarity
£147.86
PRV Audio
12W1600
12"
Xmax10.5mm+17%
Qts0.39+3%
BL20.4Tm+2%
Vas47L+9%
Qes0.40%
85%
Similarity
£228.40

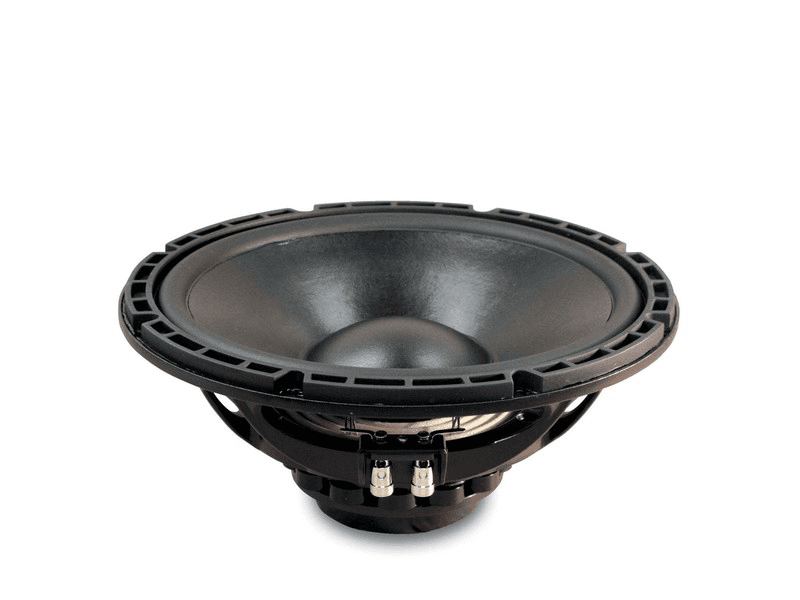

Eighteen Sound
12NW530
12"
Xmax8mm-11%
Qts0.37-3%
BL19.7Tm-2%
Vas36L-16%
Qes0.38-5%
84%
Similarity
Peerless
NCP-1230R01-08
12"
Xmax7.9mm-12%
Qts0.37-3%
BL18.1Tm-9%
Vas46.3L+8%
Qes0.39-2%
83%
Similarity

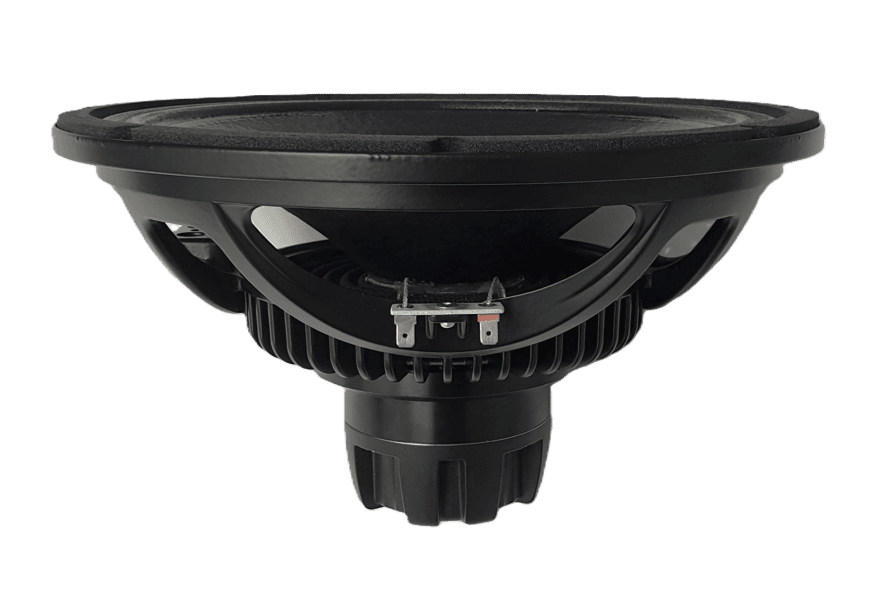

Eighteen Sound
