Overview
LF Driver
Beyma
Beyma 112LEX13ND8
Beyma 112LEX13ND8 is a 12" 8 ohm LF driver rated at 1300W RMS. The validated T/S data includes Fs 45Hz, Qts 0.24, Vas 43L, Xmax 11mm, sensitivity 94dB, plus 605cm³ Vd and 180 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
1300W
Sensitivity
94.0dB
96.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
180
Vented alignment
Vd
605cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,390 selected pixels of 4,972 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,471 selected pixels of 3,471
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs45Hz
Qts0.24
Qes0.25
Qms4.2
Vas43.0L
Re5.0Ω
Le1.30mH
BL26.4Tm
Sd550cm²
Mms125g
Xmax11.0mm
SPL94dB
Power1300W
Impedance8Ω
F Low45Hz
F High1500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
112LEX13ND8
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
92%
Similarity
£247.20
FaitalPRO
12FX600
12"
Xmax9.9mm-10%
Qts0.240%
BL25.3Tm-4%
Vas44.4L+3%
Qes0.250%
81%
Similarity
£247.00

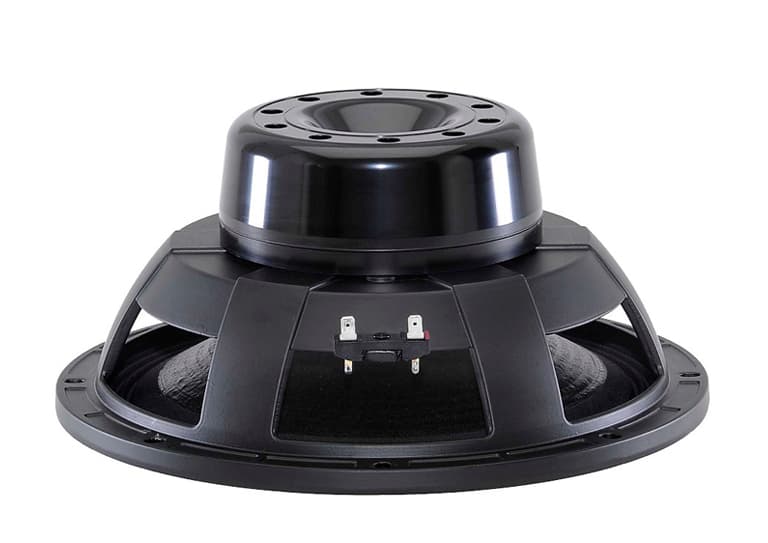

B&C
12NBX100
12"
Xmax10mm-9%
Qts0.22-8%
BL25.6Tm-3%
Vas51L+19%
Qes0.24-4%
78%
Similarity
£209.86

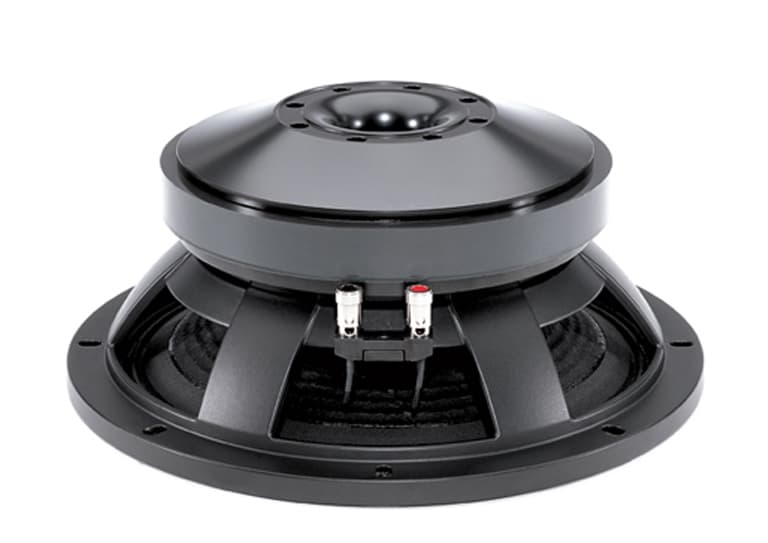

B&C
12TBX100
12"
Xmax9mm-18%
Qts0.23-4%
BL22.9Tm-13%
Vas41.1L-4%
Qes0.24-4%
78%
Similarity
£247.00
B&C
12NBX100
12"
Xmax10mm-9%
Qts0.22-8%
BL23Tm-13%
Vas46.5L+8%
Qes0.23-8%
76%
Similarity
£209.86

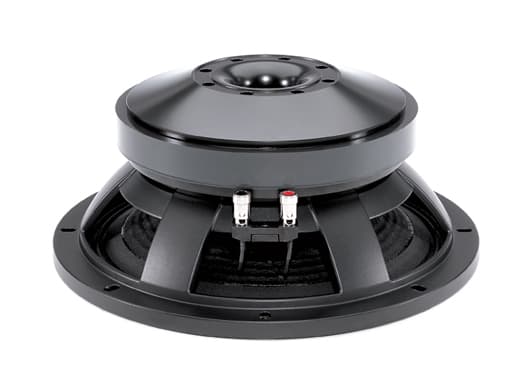

B&C
12TBX100
12"
Xmax9mm-18%
Qts0.26+8%
BL25.5Tm-3%
Vas37.5L-13%
Qes0.27+8%
75%
Similarity

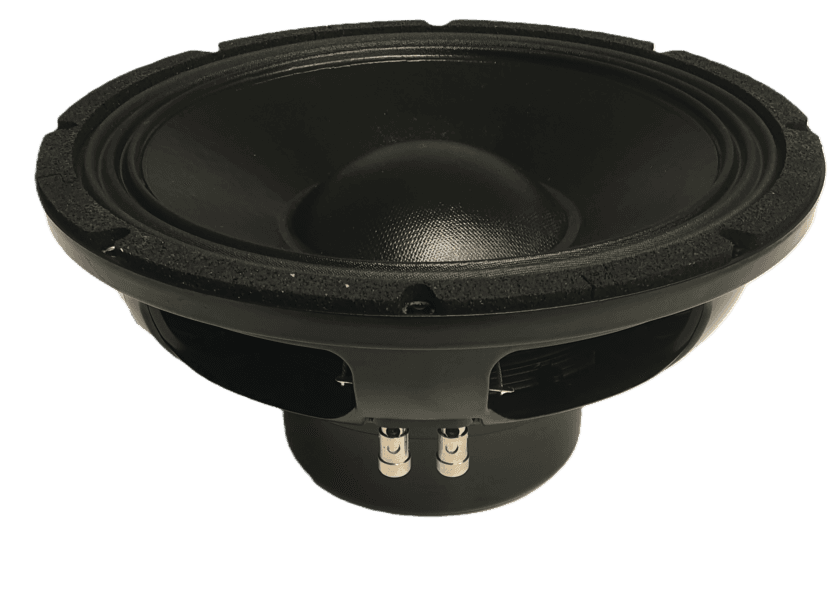

Eighteen Sound
12NLW9410
12"
Xmax11mm0%
Qts0.26+8%
BL21.7Tm-18%
Vas55L+28%
Qes0.27+8%
70%
Similarity

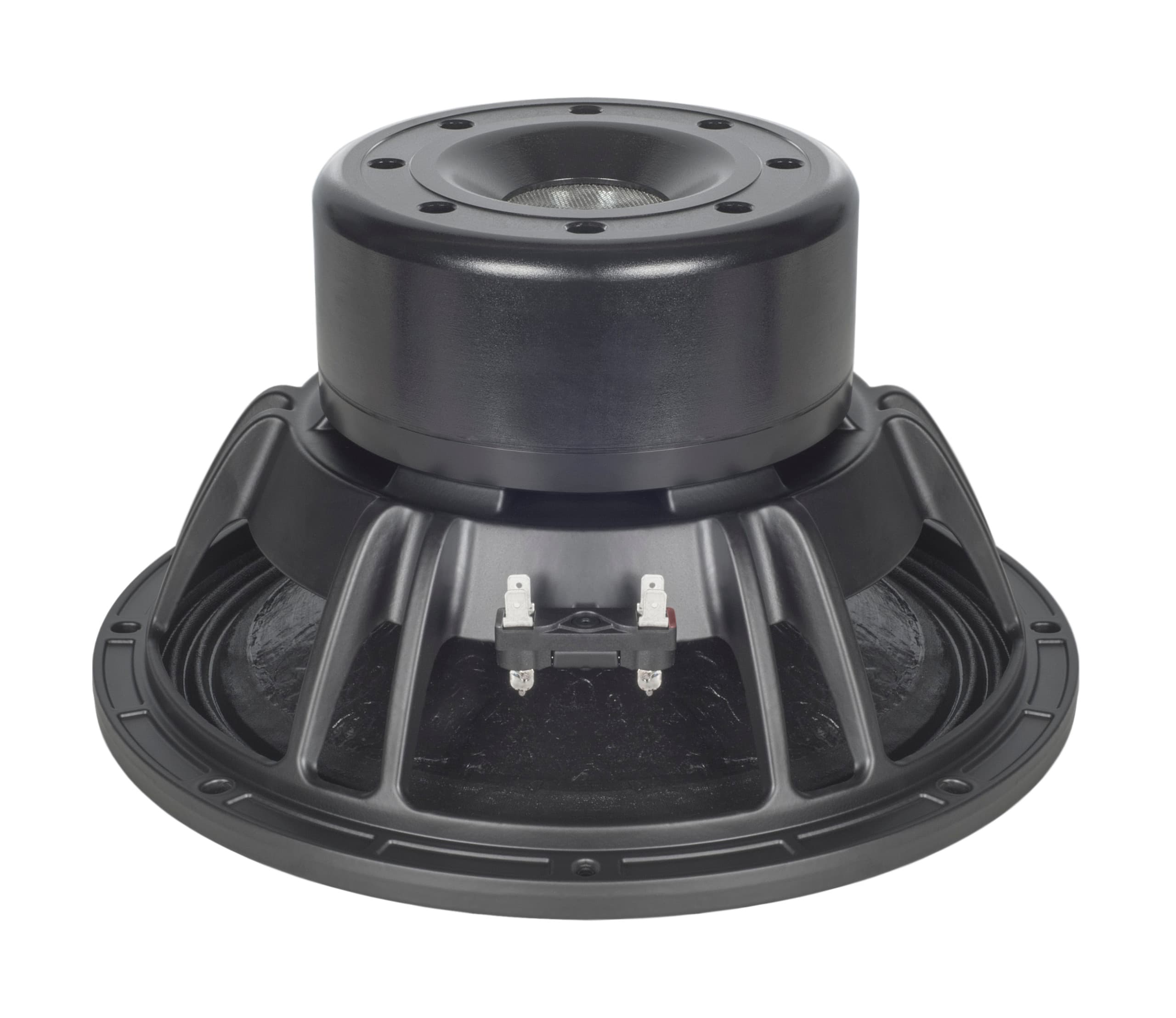

B&C
12SW115
12"
Xmax13.8mm+25%
Qts0.25+4%
BL23.8Tm-10%
Vas33L-23%
Qes0.26+4%
70%
Similarity
£369.80
B&C
12SW115
12"
Xmax13.5mm+23%
Qts0.25+4%
BL30.3Tm+15%
Vas34L-21%
Qes0.26+4%
70%
Similarity
£240.05
FaitalPRO
12HP1020
12"
Xmax9mm-18%
Qts0.27+13%
BL24.3Tm-8%
Vas38.6L-10%
Qes0.28+12%
69%
Similarity
£259.00

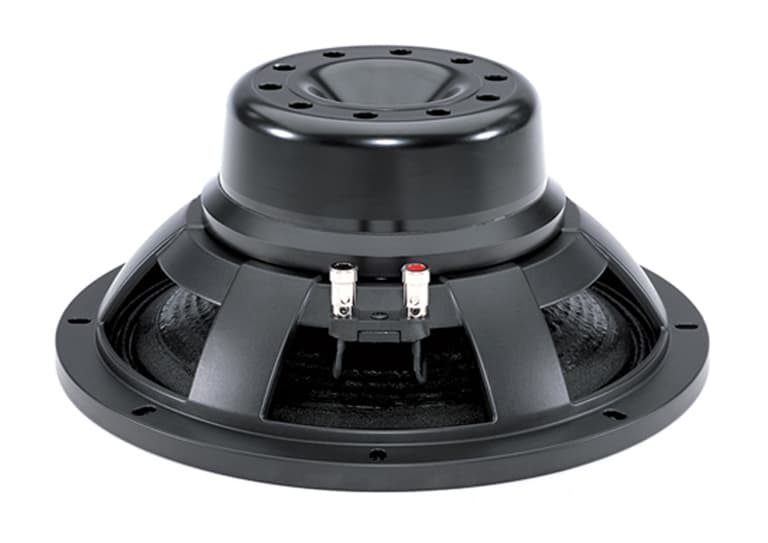

B&C
12NW100
12"
Xmax9mm-18%
Qts0.2-17%
BL28Tm+6%
Vas44L+2%
Qes0.21-16%
68%
Similarity
£465.46

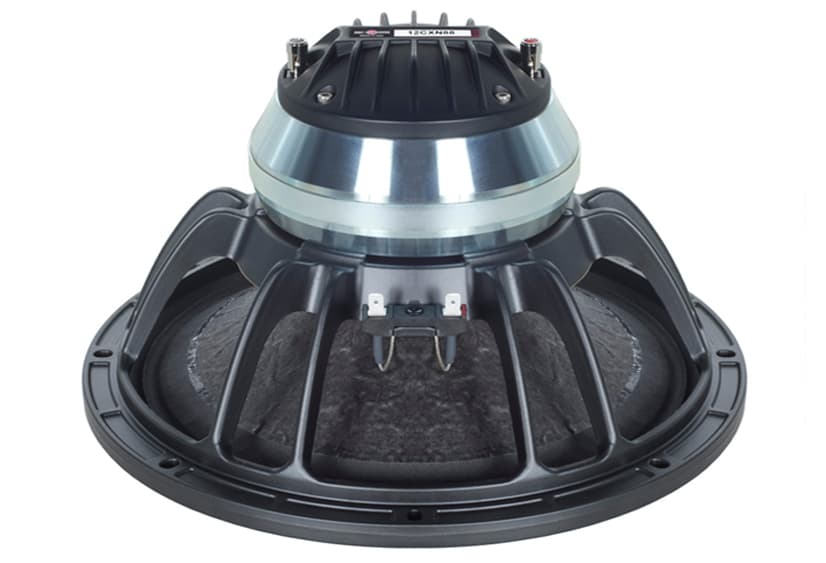

B&C
