Overview
LF Driver
Beyma
Beyma 108G48
Beyma 108G48 is a 8" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 70Hz, Qts 0.36, Vas 17L, Xmax 6.5mm, sensitivity 93.9dB, plus 143cm³ Vd and 184 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.9dB
95.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
184
Vented alignment
Vd
143cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,426 selected pixels of 4,435 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,933 selected pixels of 3,933
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs70Hz
Qts0.36
Qes0.38
Qms6.8
Vas17.0L
Re6.1Ω
Le1.30mH
BL12.2Tm
Sd220cm²
Mms21g
Xmax6.5mm
SPL94dB
Power250W
Impedance8Ω
F Low70Hz
F High6000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
108G48
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£224.00
Eighteen Sound
8CX650
8"
Xmax6mm-8%
Qts0.35-3%
BL12Tm-2%
Vas16.6L-2%
Qes0.37-3%
89%
Similarity

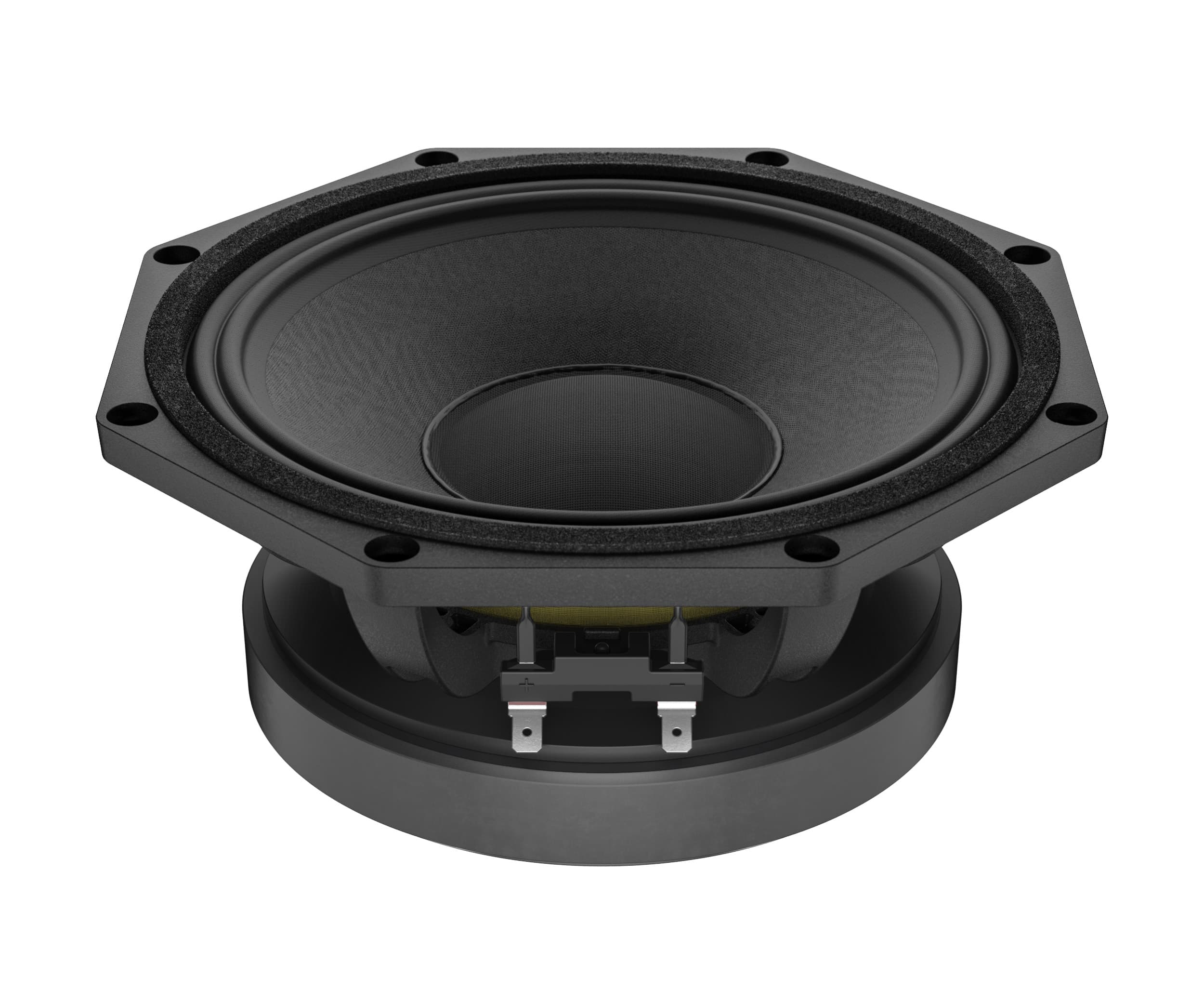

Lavoce
CAF082.00K
8"
Xmax6.7mm+3%
Qts0.34-6%
BL11.7Tm-5%
Vas15.1L-11%
Qes0.380%
86%
Similarity
£178.00
B&C
8FCX51
8"
Xmax6mm-8%
Qts0.34-6%
BL11.5Tm-6%
Vas16L-6%
Qes0.36-5%
85%
Similarity
£152.56
SB Audience
NERO-8MWN400D
8"
Xmax6.7mm+3%
Qts0.38+6%
BL11.9Tm-2%
Vas13.9L-18%
Qes0.41+8%
85%
Similarity
£103.00
B&C
8NDL51
8"
Xmax7mm+8%
Qts0.37+3%
BL12.4Tm+2%
Vas14L-18%
Qes0.41+8%
85%
Similarity
£110.00
B&C
8BG51
8"
Xmax6.5mm0%
Qts0.4+11%
BL11.8Tm-3%
Vas18L+6%
Qes0.42+11%
85%
Similarity
£151.61

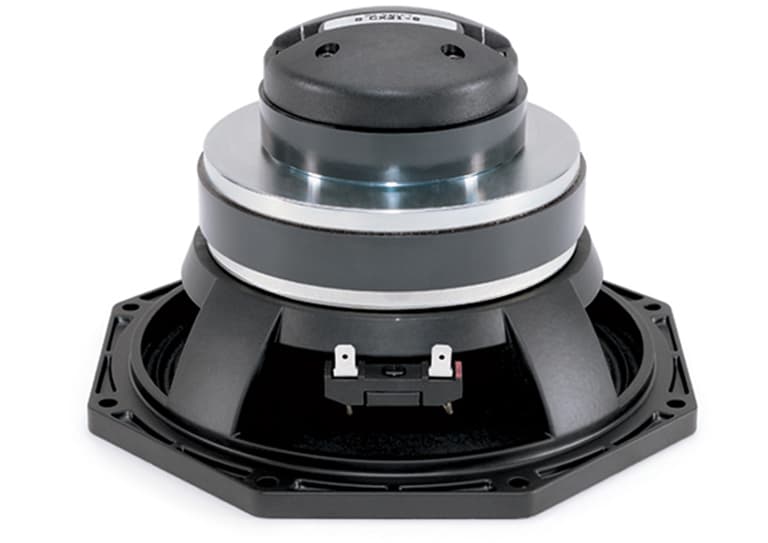

B&C
8CX21
8"
Xmax5.5mm-15%
Qts0.360%
BL11.5Tm-6%
Vas15L-12%
Qes0.39+3%
84%
Similarity
£71.42
Lavoce
WAF082.00
8"
Xmax6.3mm-3%
Qts0.37+3%
BL12.5Tm+3%
Vas11.9L-30%
Qes0.41+8%
82%
Similarity
£73.79
FaitalPRO
8PR200
8"
Xmax8.2mm+25%
Qts0.37+3%
BL11.5Tm-6%
Vas16.9L-1%
Qes0.380%
81%
Similarity
Monacor
CF0820BMB/8
8"
Xmax7.3mm+12%
Qts0.37+2%
BL11.9Tm-2%
Vas22.4L+32%
Qes0.39+4%
81%
Similarity
£85.00
Celestion
CF0820BMB
8"
Xmax7.3mm+12%
Qts0.37+2%
BL11.9Tm-2%
Vas22.4L+32%
Qes0.39+4%
81%
Similarity
£106.30
B&C
8FG51
8"
Xmax6.5mm0%
Qts0.32-11%
BL12.9Tm+6%
Vas20L+18%
Qes0.34-11%
