Overview
LF DriverWF series
Visaton

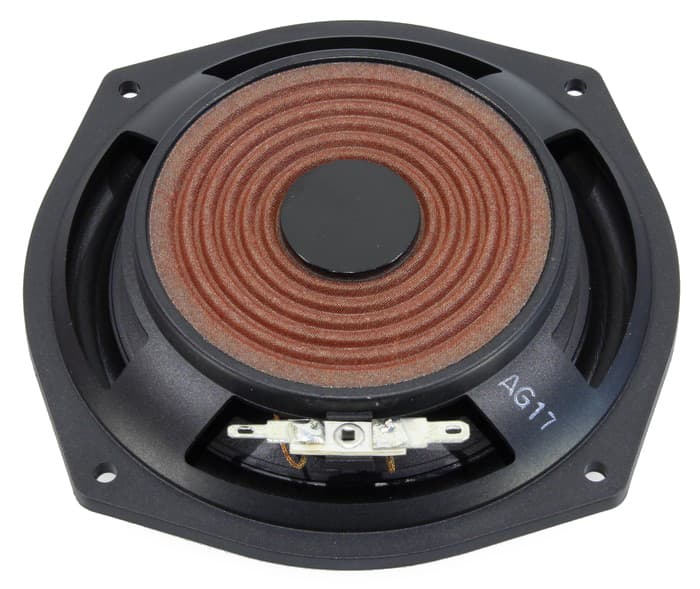

Visaton WF 130 ND - 8 Ohm
Visaton WF 130 ND - 8 Ohm is a 5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 46Hz, Qts 0.69, Vas 10.6L, Xmax 8.1mm, sensitivity 82.7dB, plus 76cm³ Vd and 52 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
40W
Sensitivity
82.7dB
84.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
52
Either alignment
Vd
76cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence391 selected pixels of 391
T/S Parameters
Valid
Fs46Hz
Qts0.69
Qes0.89
Qms3.0
Vas10.6L
Re6.7Ω
Le0.76mH
BL5.4Tm
Sd94cm²
Mms12g
Xmax8.1mm
SPL83dB
Power40W
Impedance8Ω
F High10000Hz
Voice Coil26mm
Flux Density1.17T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter130.0mm
Cutout Diameter123.0mm
