LF DriverB series
Visaton

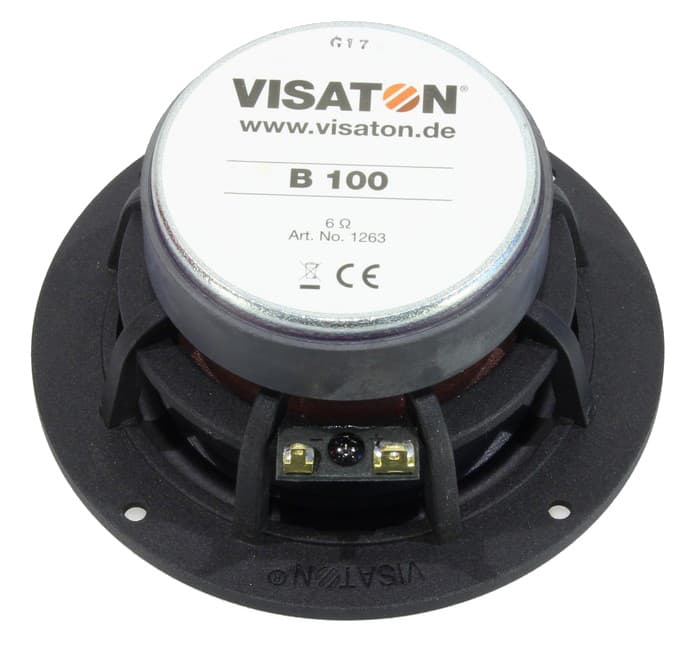

Visaton B 100 - 6 Ohm
Visaton B 100 - 6 Ohm is a 4" 6 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 75Hz, Qts 0.52, Vas 5.3L, Xmax 7mm, sensitivity 88.2dB, plus 38cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
6Ω
RMS Power
30W
Sensitivity
88.2dB
EBP
139
Vented alignment
Vd
38cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,041 selected pixels of 1,589 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
230 plotted pointsMedium confidence362 selected pixels of 416
T/S Parameters
Valid
Fs75Hz
Qts0.52
Qes0.54
Qms10.1
Vas5.3L
Re5.8Ω
Le0.36mH
BL4.1Tm
Sd54cm²
Mms3g
Xmax7.0mm
SPL88dB
Power30W
Impedance6Ω
F High20000Hz
Voice Coil26mm
Flux Density1.29T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
Diameter100.0mm
Cutout Diameter101.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
B 100 - 6 Ohm
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
£65.90

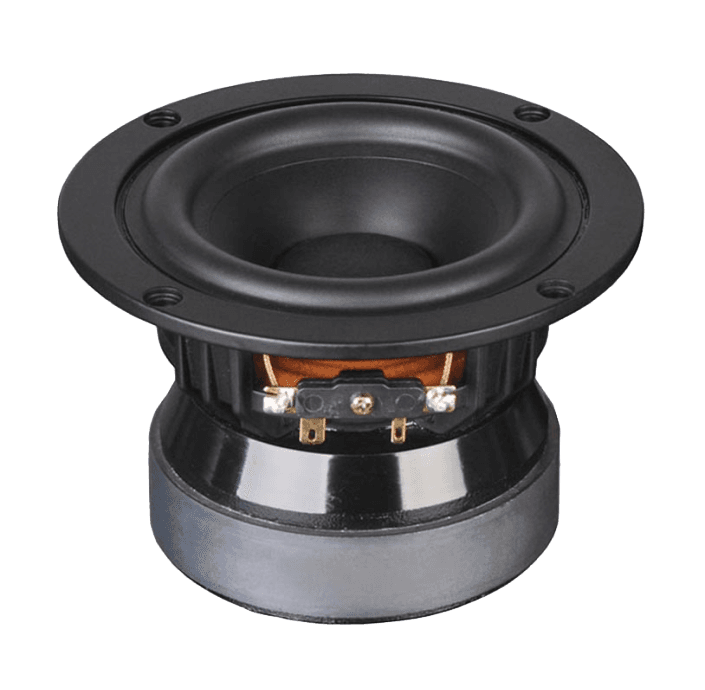

Tang Band
