Overview
LF DriverSC series
Visaton

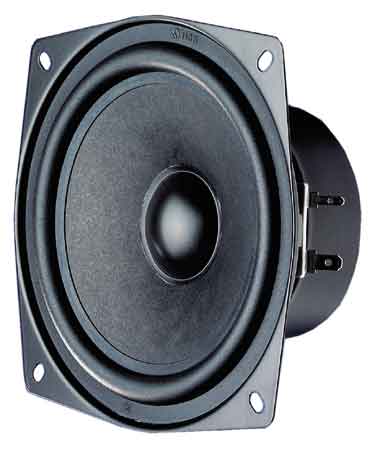

Visaton SC 13 - 8 OHM
Visaton SC 13 - 8 OHM is a 5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 78Hz, Qts 0.71, Vas 7.4L, Xmax 7.5mm, sensitivity 87.8dB, plus 59cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
40W
Sensitivity
87.8dB
90.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
83
Either alignment
Vd
59cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence695 selected pixels of 1,073
T/S Parameters
Valid
Fs78Hz
Qts0.71
Qes0.94
Qms3.0
Vas7.4L
Re7.2Ω
Le0.70mH
BL4.2Tm
Sd79cm²
Mms5g
Xmax7.5mm
SPL88dB
Power40W
Impedance8Ω
F High13000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.6kg
Diameter130.0mm
Cutout Diameter113.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
SC 13 - 8 OHM
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
SC 13
5"
Xmax7.5mm0%
Qts0.710%
BL4.2Tm0%
Vas7.4L0%
Qes0.940%
66%
Similarity
£104.00

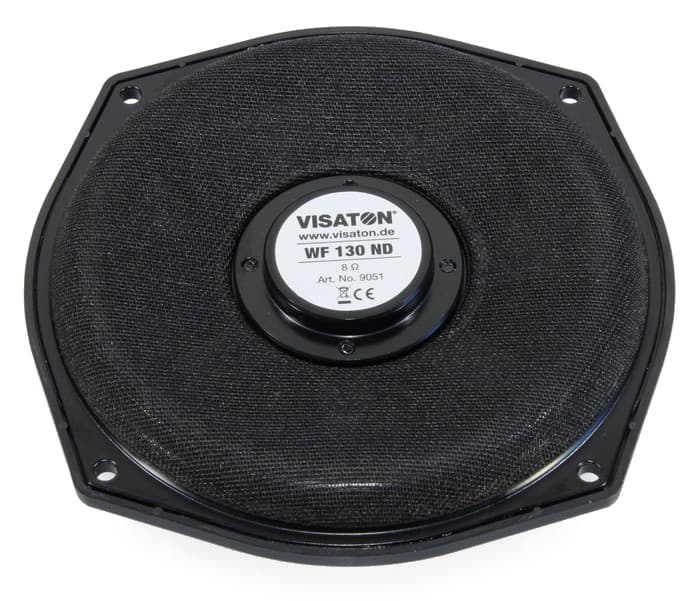

Visaton
