LF DriverW series
Visaton

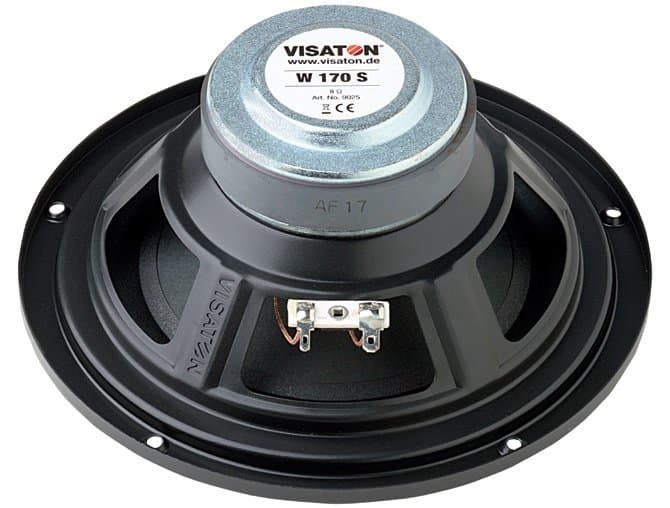

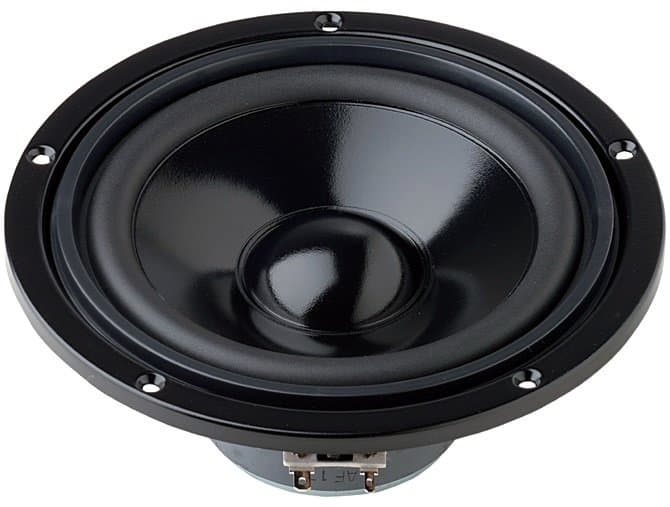

Visaton W 170 S - 8 OHM
Visaton W 170 S - 8 OHM is a 6.5" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 36Hz, Qts 0.52, Vas 38L, Xmax 10mm, sensitivity 86.3dB, plus 129cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
50W
Sensitivity
86.3dB
EBP
55
Either alignment
Vd
129cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence470 selected pixels of 1,382 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence682 selected pixels of 682
T/S Parameters
Valid
Fs36Hz
Qts0.52
Qes0.66
Qms2.4
Vas38.0L
Re5.9Ω
Le1.20mH
BL5.4Tm
Sd129cm²
Mms13g
Xmax10.0mm
SPL86dB
Power50W
Impedance8Ω
F High8000Hz
Voice Coil25mm
Flux Density1.00T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.1kg
Diameter170.0mm
Cutout Diameter148.0mm
