LF DriverPAW series
Visaton

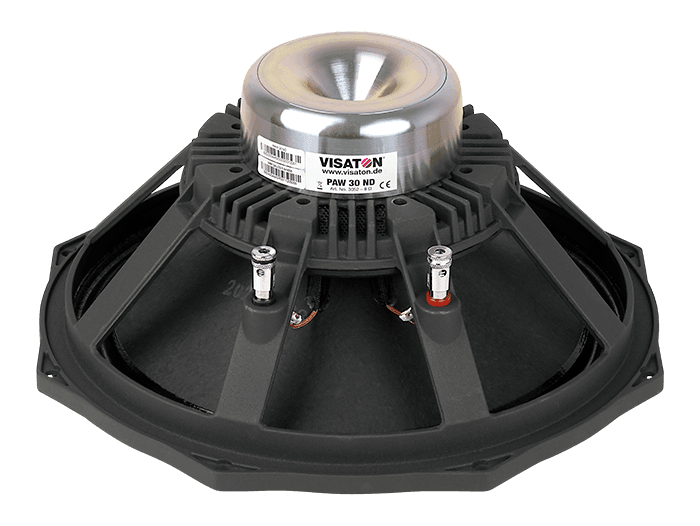

Visaton PAW 30 ND - 8 OHM
Visaton PAW 30 ND - 8 OHM is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 52Hz, Qts 0.46, Vas 55.4L, Xmax 9mm, sensitivity 93.9dB, plus 485cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
93.9dB
EBP
102
Vented alignment
Vd
485cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence669 selected pixels of 2,029 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence778 selected pixels of 778
T/S Parameters
Valid
Fs52Hz
Qts0.46
Qes0.51
Qms4.8
Vas55.4L
Re5.7Ω
Le0.38mH
BL15.4Tm
Sd539cm²
Mms63g
Xmax9.0mm
SPL94dB
Power400W
Impedance8Ω
F High5500Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter300.0mm
Cutout Diameter286.0mm
