Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespVisaton FRS 5 - 8 OHM 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFRS series
Visaton

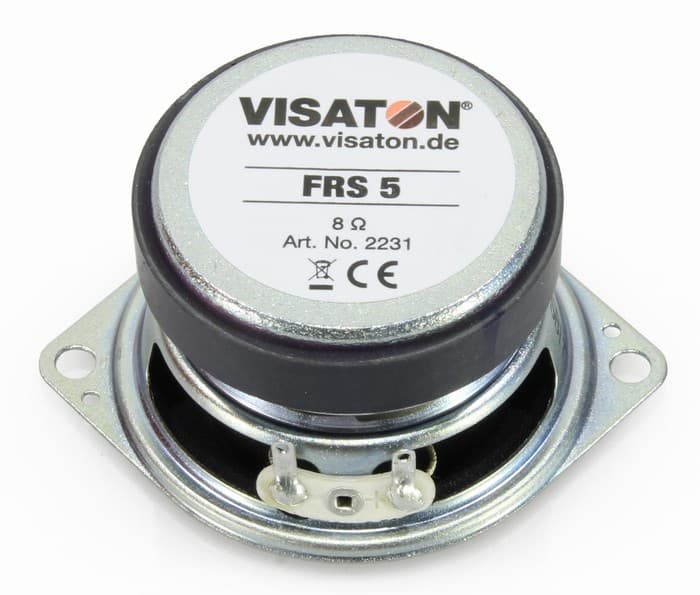

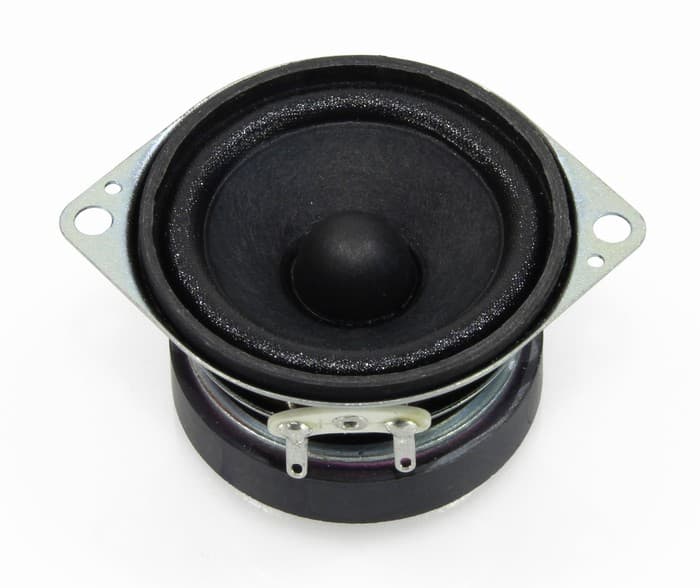

Visaton FRS 5 - 8 OHM
Visaton FRS 5 - 8 OHM is a 2" 8 ohm LF driver rated at 5W RMS. The validated T/S data includes Fs 270Hz, Qts 1.15, Vas 0.2L, Xmax 2mm, sensitivity 84.4dB, plus 2cm³ Vd and 149 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £10.60.
Size
2"
Impedance
8Ω
RMS Power
5W
Sensitivity
84.4dB
EBP
149
Vented alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence644 selected pixels of 1,343
T/S Parameters
Valid
Fs270Hz
Qts1.15
Qes1.81
Qms3.2
Vas0.2L
Re7.2Ω
Le0.20mH
BL1.6Tm
Sd12cm²
Mms1g
Xmax2.0mm
SPL84dB
Power5W
Impedance8Ω
F Low150Hz
F High20000Hz
Voice Coil14mm
Flux Density0.95T
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
partsexpress
£10.60
inc VAT·16 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter50.0mm
Cutout Diameter46.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FRS 5 - 8 OHM
2"
Best current price
£10.60
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
60%
Similarity
3% cheaper£10.26
Visaton
FRWS 5 - 4 OHM
2"
Lower price
Xmax2mm0%
Qts1.24+8%
BL1.1Tm-31%
Vas0.2L+25%
Qes2.5+38%
100%
Similarity
Visaton
FRS 5
2"
Xmax2mm0%
Qts1.150%
BL1.6Tm0%
Vas0.2L0%
Qes1.810%
74%
Similarity
Dayton Audio
CE53N-4
2"
Xmax2mm0%
Qts1-13%
BL1.7Tm+7%
Vas0.1L-6%
Qes1.3-28%
61%
Similarity

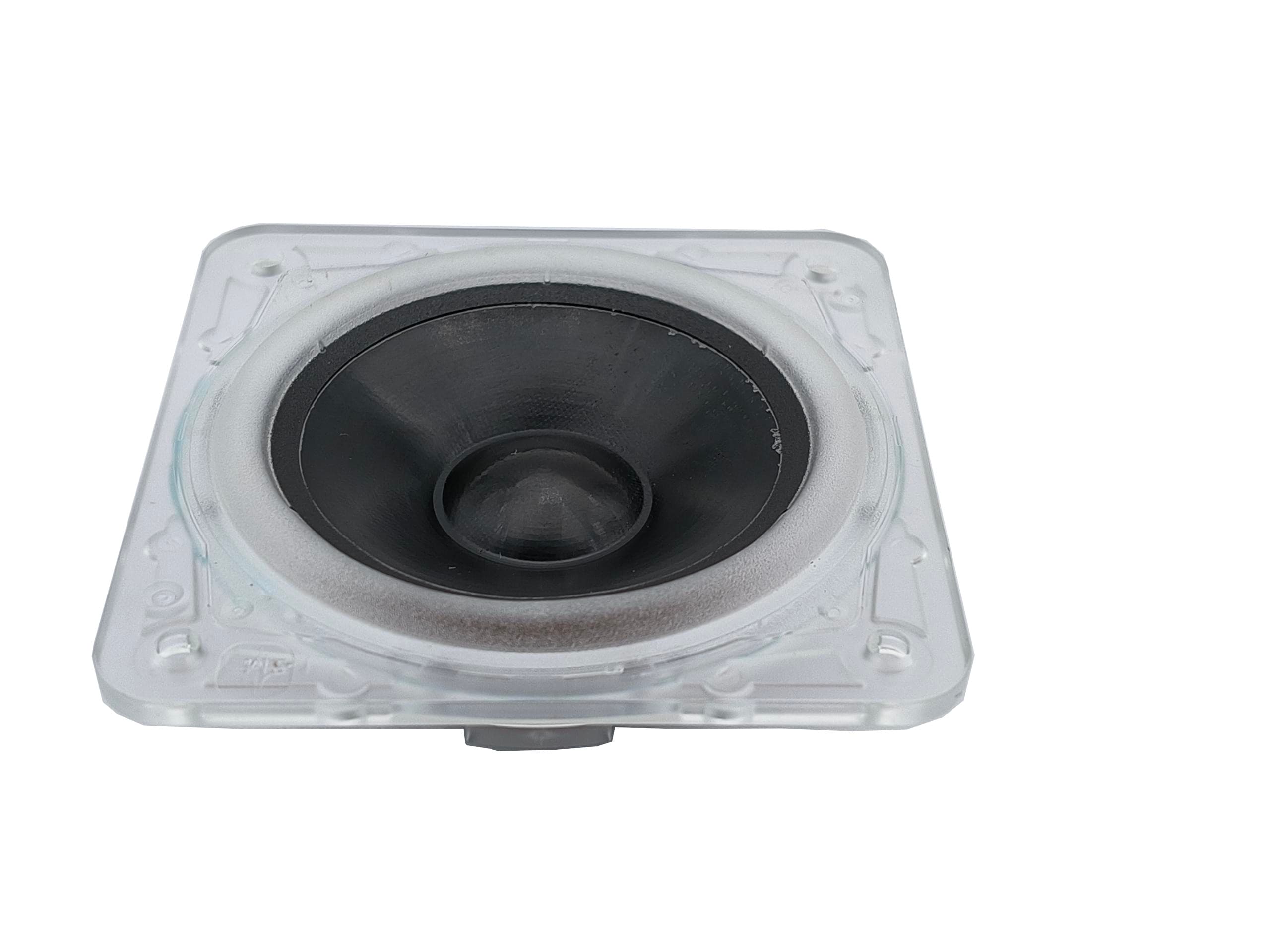

Peerless
HVS-60N18GG01-04
2.5"
Xmax2.2mm+9%
Qts1.3+13%
BL1.8Tm+12%
Vas0.3L+60%
Qes1.84+2%
53%
Similarity
Peerless
HVS-60N18PG02-04
2.5"
Xmax1.6mm-21%
Qts1.1-4%
BL1.9Tm+17%
Vas0.2L+49%
Qes1.5-17%
