Overview
LF DriverFRWS series
Visaton

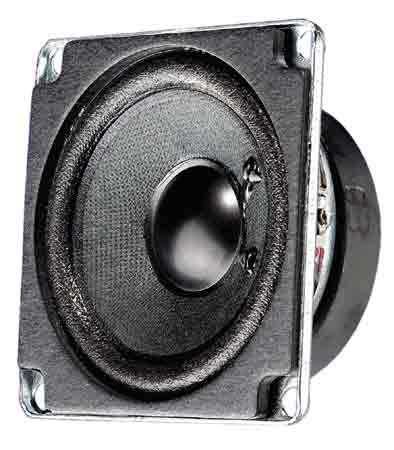

Visaton FRWS 5 - 4 OHM
Visaton FRWS 5 - 4 OHM is a 2" 4 ohm LF driver rated at 4W RMS. The validated T/S data includes Fs 250Hz, Qts 1.24, Vas 0.2L, Xmax 2mm, sensitivity 83dB, plus 2cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £10.26.
Size
2"
Impedance
4Ω
RMS Power
4W
Sensitivity
83.0dB
84.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
100
Either alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence471 selected pixels of 974
T/S Parameters
Valid
Fs250Hz
Qts1.24
Qes2.50
Qms2.5
Vas0.2L
Re3.6Ω
Le0.08mH
BL1.1Tm
Sd12cm²
Mms1g
Xmax2.0mm
SPL83dB
Power4W
Impedance4Ω
F Low150Hz
F High20000Hz
Xover250Hz
Voice Coil14mm
Flux Density0.75T
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
partsexpress
£10.26
inc VAT·3 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter50.0mm
Cutout Diameter45.0mm
