Overview
LF DriverHVS series
Peerless

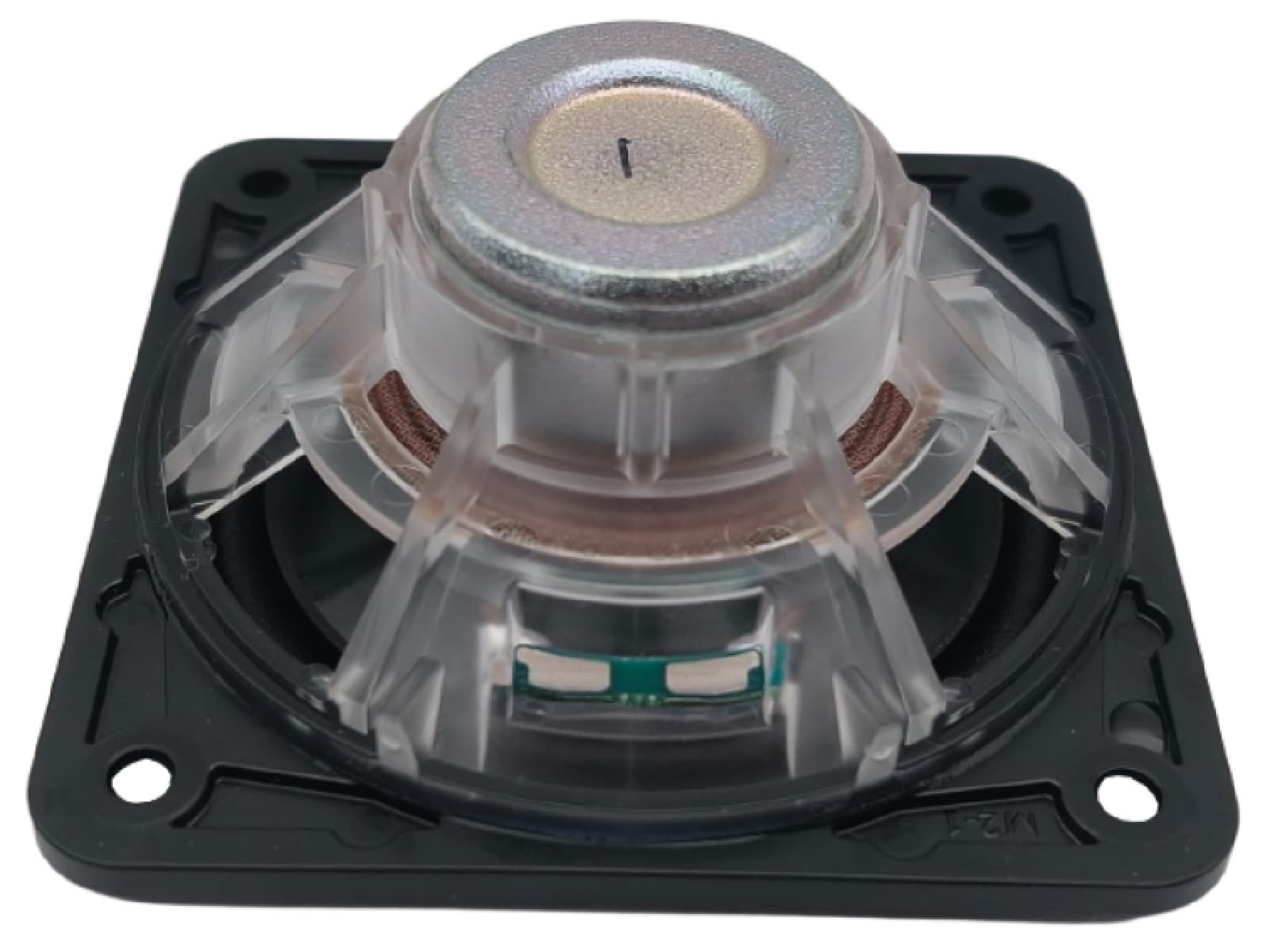

Peerless HVS-60N18PG02-04
Peerless HVS-60N18PG02-04 is a 2.5" 4 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 220Hz, Qts 1.10, Vas 0.2L, Xmax 1.6mm, sensitivity 84.3dB, plus 3cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.5"
Impedance
4Ω
RMS Power
8W
Sensitivity
84.3dB
EBP
147
Vented alignment
Vd
3cm³
T/S Parameters
Valid
Fs220Hz
Qts1.10
Qes1.50
Qms4.9
Vas0.2L
Re3.2Ω
Le0.05mH
BL1.9Tm
Sd19cm²
Mms1g
Xmax1.6mm
SPL84dB
Power8W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight50.0kg
