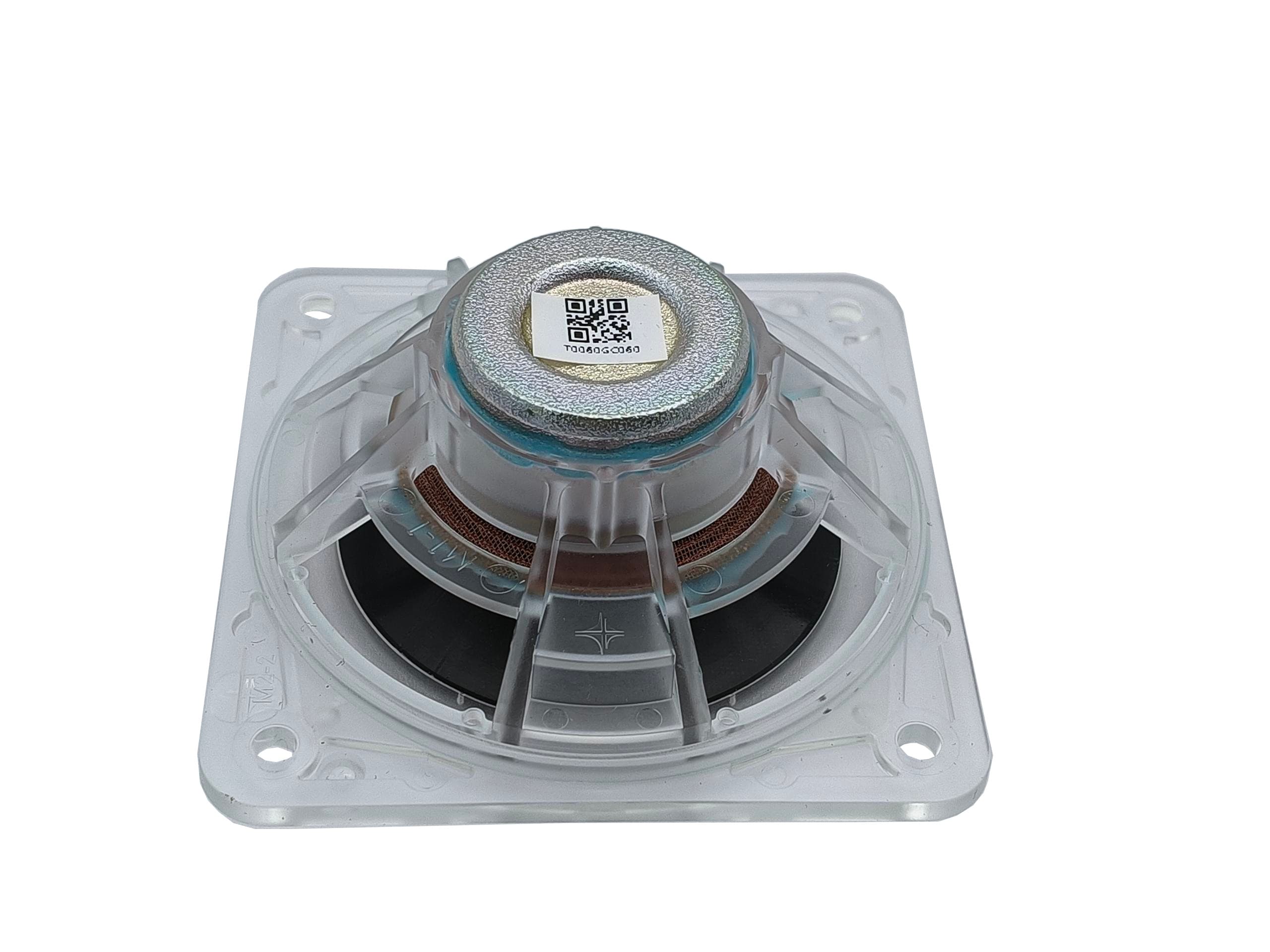

Peerless HVS-60N18GG01-04 4Ω
4 Ω
No current price
- Fs
- 190Hz
- Xmax
- 2.2mm
- SPL
- 82dB
- Pe
- 5W
- BL
- 1.8T·m
- Vd
- 4cm³
- Qts
- 1.30
- Vas
- 0.26L
Peerless HVS-60N18GG01-04 is a 2.5-inch 4 ohm LF driver rated at 5 W RMS. The validated T/S data includes Fs 190 Hz, Qts 1.30, Vas 0.26 L, Xmax 2.2 mm, sensitivity 81.8 dB, plus 4 cm³ Vd and 103 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 190Hz
- Qts
- 1.30
- Qes
- 1.84
- Qms
- 4.3
- Vas
- 0.26L
- Re
- 3.4Ω
- Le
- 0.09mH
Motor and cone
- BL
- 1.8T·m
- Sd
- 19cm²
- Mms
- 1g
- Xmax
- 2.2mm
- Vd †
- 4cm³
Power and response
- Sensitivity †
- 81.8dB
- Manufacturer sensitivity
- 81.5dB
- Power
- 5W
- Impedance
- 4Ω
- EBP †
- 103 · Leans vented
Size and mounting
- Weight
- 45kg
Other published values
- Cms
- 0.48mm/N
- Power Peak
- 20000
† Calculated by bits from the published values
What this validation status means
Everything else Peerless lists
LF · Primary · 2.519685039370079″
- BL
- 1.8T·m
- Fs
- 190Hz
- Le
- 0.09mH
- Re
- 3.4Ω
- Sd
- 19cm²
- Cms
- 0.48mm/N
- Mms
- 1g
- Qes
- 1.84
- Qms
- 4.3
- Qts
- 1.30
- SPL
- 81.5dB
- Vas
- 0.26L
- Xmax
- 2.2mm
- Power
- 5W
- Impedance
- 4Ω
- Power Peak
- 20000
- Weight
- 45kg
02
Compare
Same-size drivers, compared with the HVS-60N18GG01-04. Clear differences are green when better and red when worse.
This driverHVS-60N18GG01-04
Best price
–
Fs
190 Hz
Qts
1.30
Vas
0.26 L
BL
1.8 T·m
Xmax
2.2 mm
Sensitivity
81.8 dB
Power
5 W
VisatonSC 4.9 FL
£9.41Fs220 Hz +16%, worse
Qts1.31 –
Vas0.43 L +68%, worse
BL2.0 T·m +11%, better
Xmax1 mm −54%, worse
Sensitivity85 dB +3.2, better
VisatonFR 87
£10.21Fs137 Hz −28%, better
Qts1.25 −4%
Vas1.3 L +408%, worse
BL2.1 T·m +17%, better
Xmax2 mm −8%
Sensitivity85.3 dB +3.5, better
VisatonFR 8
£10.21Fs150 Hz −21%, better
Qts1.05 −19%, better
Vas0.6 L +134%, worse
BL2.1 T·m +17%, better
Xmax2 mm −8%
Sensitivity84 dB +2.2, better
VisatonFR 8 JS
£10.35Fs130 Hz −32%, better
Qts1.24 −5%
Vas0.8 L +228%, worse
BL2.8 T·m +55%, better
Xmax2 mm −8%
Sensitivity82.3 dB +0.5
VisatonFRWS 5
£10.48Fs250 Hz +32%, worse
Qts1.24 −5%
Vas0.2 L −22%, better
BL1.1 T·m −39%, worse
Xmax2 mm −8%
Sensitivity83 dB +1.2
VisatonFRS 5
£10.83Fs270 Hz +42%, worse
Qts1.15 −12%, better
Vas0.16 L −38%, better
BL1.6 T·m −11%, worse
Xmax2 mm −8%
Sensitivity84.4 dB +2.6, better
VisatonFRS 7 S
£11.40Fs150 Hz −21%, better
Qts1.46 +12%, worse
Vas0.9 L +252%, worse
BL1.8 T·m –
Xmax1.5 mm −31%, worse
Sensitivity83.8 dB +2, better
VisatonFRS 7
£11.79Fs220 Hz +16%, worse
Qts1.22 −6%
Vas0.3 L +17%, worse
BL1.7 T·m −5%
Xmax1.5 mm −31%, worse
Sensitivity84.2 dB +2.4, better
Dayton AudioCE53N-4
£11.79Fs197 Hz +4%
Qts1 −23%, better
Vas0.15 L −41%, better
BL1.7 T·m −4%
Xmax2 mm −8%
Sensitivity81.5 dB –
FaitalPRO3FE26
£15.02Fs150 Hz −21%, better
Qts1.08 −17%, better
Vas0.9 L +252%, worse
BL3.9 T·m +118%, better
Xmax2 mm −8%
Sensitivity84.9 dB +3.1, better
CIAREPA065
£16.05Fs154 Hz −19%, better
Qts1.30 –
Vas0.7 L +173%, worse
BL1.9 T·m +4%
Xmax1 mm −54%, worse
Sensitivity83.3 dB +1.5
HiViB2S
£16.81Fs152 Hz −20%, better
Qts1.20 −8%
Vas0.2 L −22%, better
BL2.5 T·m +40%, better
Xmax1.5 mm −31%, worse
Sensitivity78.6 dB −3.2, worse
VisatonSL 713
£17.56Fs180 Hz −5%
Qts1.70 +31%, worse
Vas1.5 L +486%, worse
BL1.9 T·m +6%
Xmax2 mm −8%
Sensitivity88 dB +6.2, better
CIAREHM087
£19.43Fs270 Hz +42%, worse
Qts1.39 +7%
Vas0.2 L −22%, better
BL4.1 T·m +131%, better
Xmax2.1 mm −4%
Sensitivity84.9 dB +3.1, better

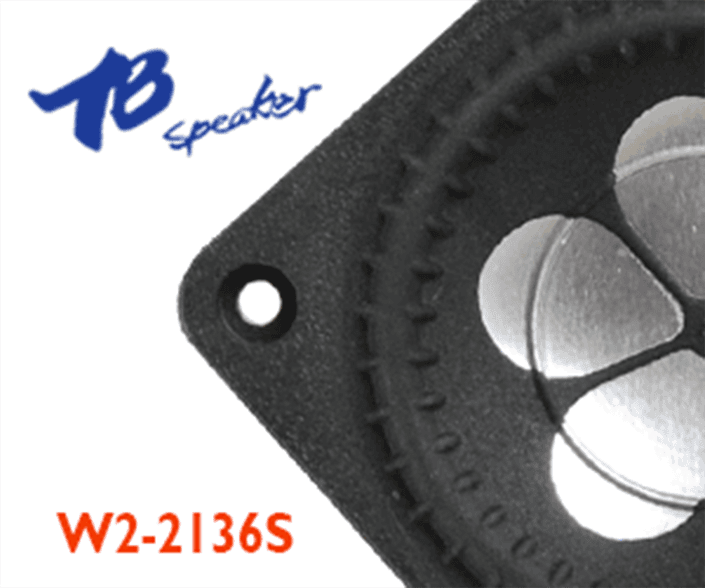

Tang BandW2-2136S
£34.00Fs120 Hz −37%, better
Qts0.31 −76%, better
Vas0.26 L –
BL3.7 T·m +107%, better
Xmax2 mm −8%
Sensitivity82.6 dB +0.8
VisatonFRS 5 - 8 OHM
No current priceFs270 Hz +42%, worse
Qts1.15 −12%, better
Vas0.16 L −38%, better
BL1.6 T·m −11%, worse
Xmax2 mm −8%
Sensitivity84.4 dB +2.6, better
VisatonFRS 7 - 8 Ohm
No current priceFs250 Hz +32%, worse
Qts1.28 –
Vas0.3 L +17%, worse
BL2.1 T·m +17%, better
Xmax1.5 mm −31%, worse
Sensitivity85.6 dB +3.8, better
PeerlessHVS-60N18PG02-04
No current priceFs220 Hz +16%, worse
Qts1.10 −15%, better
Vas0.24 L −7%
BL1.9 T·m +5%
Xmax1.6 mm −28%, worse
Sensitivity84.3 dB +2.5, better
VisatonFR 87 - 4 OHM
No current priceFs137 Hz −28%, better
Qts1.25 −4%
Vas1.3 L +408%, worse
BL2.1 T·m +17%, better
Xmax2 mm −8%
Sensitivity85.3 dB +3.5, better
Dayton AudioCE4876-8
No current priceFs203 Hz +7%
Qts1.42 +9%
Vas0.37 L +45%, worse
BL2.9 T·m +64%, better
Xmax2.2 mm –
Sensitivity84.6 dB +2.8, better
VisatonFR 8 JS - 8 Ohm
No current priceFs130 Hz −32%, better
Qts1.24 −5%
Vas0.8 L +228%, worse
BL2.8 T·m +55%, better
Xmax2 mm −8%
Sensitivity82.3 dB +0.5
PeerlessHVS-60N18PG01-04
No current priceFs200 Hz +5%
Qts0.90 −31%, better
Vas0.24 L −4%
BL2.2 T·m +24%, better
Xmax2.2 mm –
Sensitivity84.1 dB +2.3, better
VisatonFRWS 5 - 4 OHM
No current priceFs250 Hz +32%, worse
Qts1.24 −5%
Vas0.2 L −22%, better
BL1.1 T·m −39%, worse
Xmax2 mm −8%
Sensitivity83 dB +1.2
VisatonFRS 7 S - 8 OHM
No current priceFs150 Hz −21%, better
Qts1.46 +12%, worse
Vas0.9 L +252%, worse
BL1.8 T·m –
Xmax1.5 mm −31%, worse
Sensitivity83.8 dB +2, better
VisatonSL 713 - 4 OHM
No current priceFs180 Hz −5%
Qts1.70 +31%, worse
Vas1.5 L +486%, worse
BL1.9 T·m +6%
Xmax2 mm −8%
Sensitivity88 dB +6.2, better
VisatonSC 4.9 FL - 8 Ohm
No current priceFs220 Hz +16%, worse
Qts1.31 –
Vas0.43 L +68%, worse
BL2.0 T·m +11%, better
Xmax1 mm −54%, worse
Sensitivity85 dB +3.2, better
Dayton AudioCE40P-8
No current priceFs228 Hz +20%, worse
Qts1.17 −10%, better
Vas0.01 L −96%, better
BL2.0 T·m +11%, better
Xmax1.2 mm −45%, worse
Sensitivity70.6 dB −11.2, worse
VisatonFR 8 - 4 OHM
No current priceFs150 Hz −21%, better
Qts1.05 −19%, better
Vas0.6 L +134%, worse
BL2.1 T·m +17%, better
Xmax2 mm −8%
Sensitivity84 dB +2.2, better
REDCATTTWIGGY35
No current priceFs145 Hz −24%, better
Qts1.25 −4%
Vas0.6 L +134%, worse
BL3.7 T·m +107%, better
Xmax0.25 mm −89%, worse
Sensitivity82.2 dB –
