Overview
LF DriverFR series
Visaton

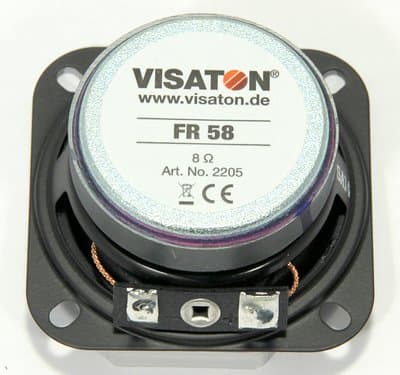

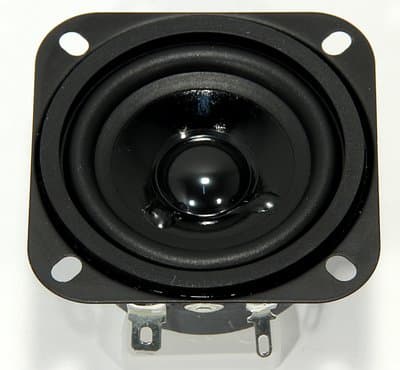

Visaton FR 58 - 8 Ohm
Visaton FR 58 - 8 Ohm is a 2.5" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 190Hz, Qts 0.98, Vas 0.2L, Xmax 2.5mm, sensitivity 80.8dB, plus 3cm³ Vd and 116 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.5"
Impedance
8Ω
RMS Power
10W
Sensitivity
80.8dB
EBP
116
Vented alignment
Vd
3cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence741 selected pixels of 1,792
T/S Parameters
Valid
Fs190Hz
Qts0.98
Qes1.64
Qms2.4
Vas0.2L
Re7.3Ω
Le0.15mH
BL2.3Tm
Sd13cm²
Mms1g
Xmax2.5mm
SPL81dB
Power10W
Impedance8Ω
F Low120Hz
F High20000Hz
Voice Coil14mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£8.55
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter58.0mm
Cutout Diameter57.0mm
