Peerless HVS-60N18PG01-04 4Ω
4 Ω
No current price
- Fs
- 200Hz
- Xmax
- 2.2mm
- SPL
- 84dB
- Pe
- 5W
- BL
- 2.2T·m
- Vd
- 4cm³
- Qts
- 0.90
- Vas
- 0.24L

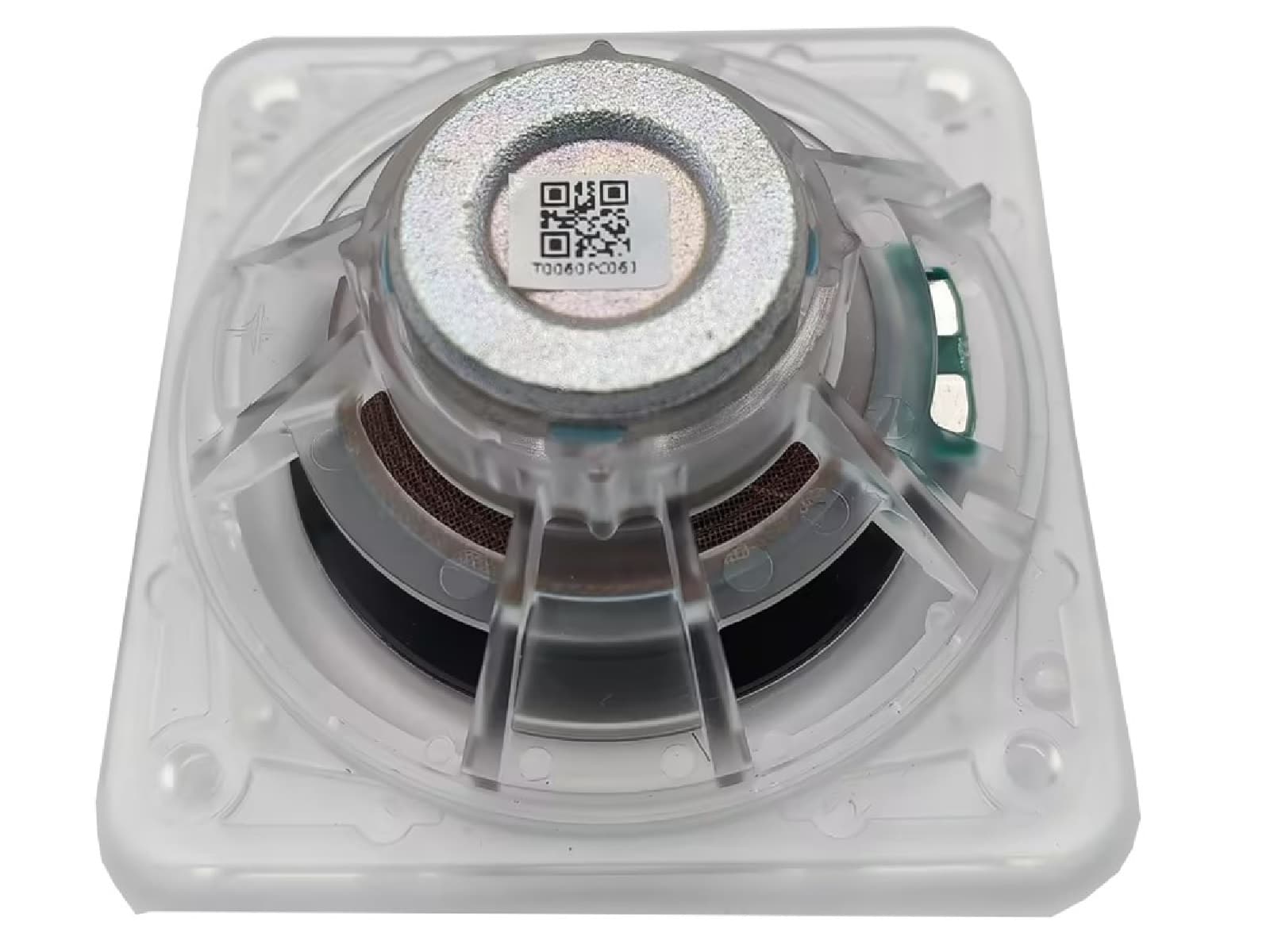

Peerless HVS-60N18PG01-04 is a 2.5-inch 4 ohm LF driver rated at 5 W RMS. The validated T/S data includes Fs 200 Hz, Qts 0.90, Vas 0.24 L, Xmax 2.2 mm, sensitivity 84.1 dB, plus 4 cm³ Vd and 164 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 200Hz
- Qts
- 0.90
- Qes
- 1.22
- Qms
- 3.5
- Vas
- 0.24L
- Re
- 3.4Ω
- Le
- 0.08mH
Motor and cone
- BL
- 2.2T·m
- Sd
- 19cm²
- Mms
- 1g
- Xmax
- 2.2mm
- Vd †
- 4cm³
Power and response
- Sensitivity †
- 84.1dB
- Manufacturer sensitivity
- 84.6dB
- Power
- 5W
- Impedance
- 4Ω
- EBP †
- 164 · Leans vented
Size and mounting
- Weight
- 50kg
Other published values
- Cms
- 0.46mm/N
- Power Peak
- 20000
† Calculated by bits from the published values
What this validation status means
Everything else Peerless lists
LF · Primary · 2.519685039370079″
- BL
- 2.2T·m
- Fs
- 200Hz
- Le
- 0.08mH
- Re
- 3.4Ω
- Sd
- 19cm²
- Cms
- 0.46mm/N
- Mms
- 1g
- Qes
- 1.22
- Qms
- 3.5
- Qts
- 0.90
- SPL
- 84.6dB
- Vas
- 0.24L
- Xmax
- 2.2mm
- Power
- 5W
- Impedance
- 4Ω
- Power Peak
- 20000
- Weight
- 50kg
