Overview
LF DriverHVS series
Peerless

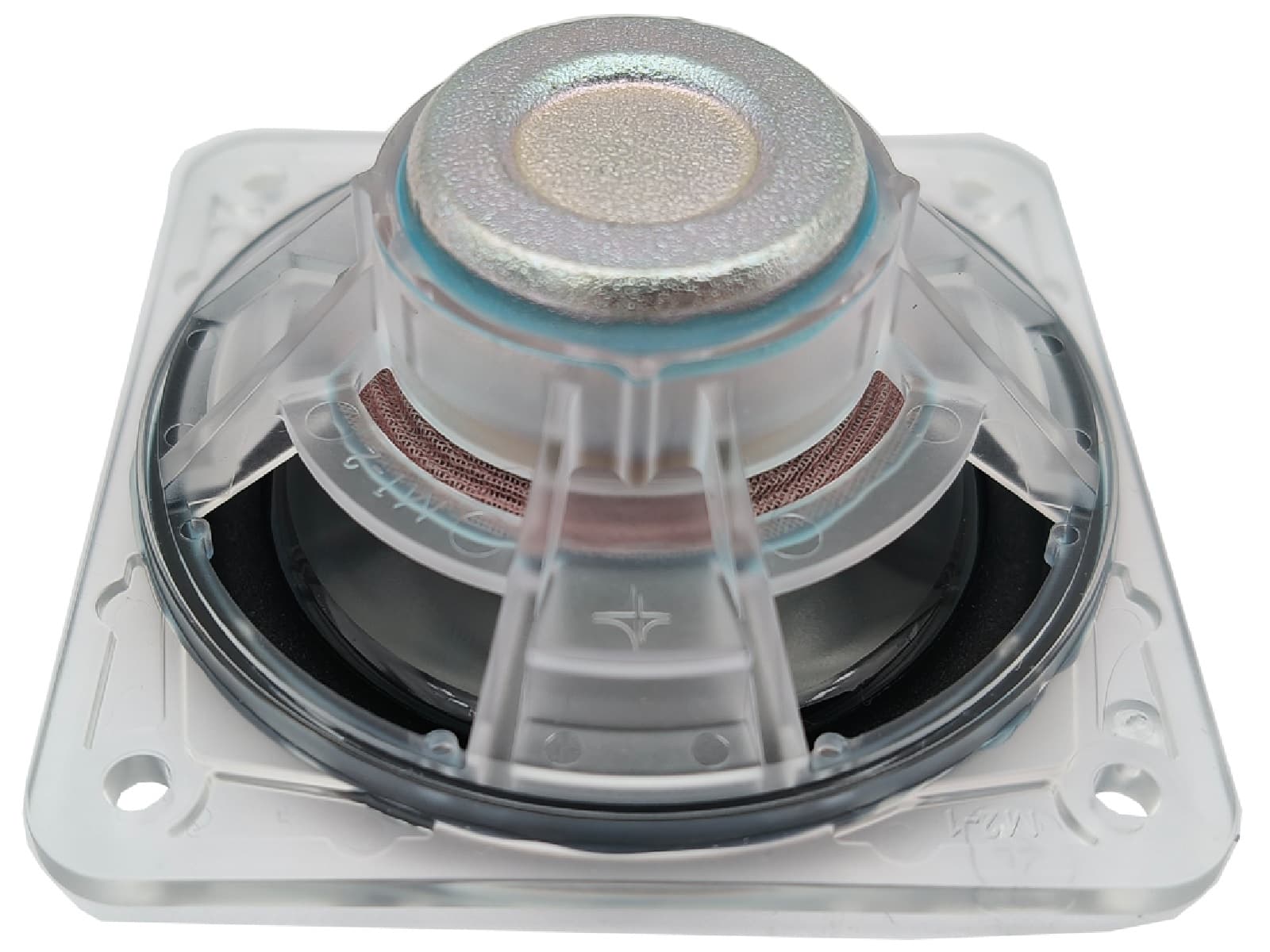

Peerless HVS-60N18PA00-04
Peerless HVS-60N18PA00-04 is a 2.5" 4 ohm LF driver rated at 4W RMS. The validated T/S data includes Fs 140Hz, Qts 0.85, Vas 0.4L, Xmax 2.2mm, sensitivity 82dB, plus 4cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.5"
Impedance
4Ω
RMS Power
4W
Sensitivity
82.0dB
EBP
136
Vented alignment
Vd
4cm³
T/S Parameters
Valid
Fs140Hz
Qts0.85
Qes1.03
Qms4.8
Vas0.4L
Re3.4Ω
Le0.09mH
BL2.3Tm
Sd20cm²
Mms2g
Xmax2.2mm
SPL82dB
Power4W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight51.0kg
