Overview
LF DriverFRS series
Visaton
Visaton FRS 5 X - 8 Ohm
Visaton FRS 5 X - 8 Ohm is a 2" 8 ohm LF driver rated at 5W RMS. The validated T/S data includes Fs 190Hz, Qts 0.70, Vas 0.2L, Xmax 2mm, sensitivity 84.6dB, plus 3cm³ Vd and 216 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
5W
Sensitivity
84.6dB
86.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
216
Vented alignment
Vd
3cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence706 selected pixels of 1,889
T/S Parameters
Valid
Fs190Hz
Qts0.70
Qes0.88
Qms3.5
Vas0.2L
Re7.7Ω
BL2.7Tm
Sd13cm²
Mms1g
Xmax2.0mm
SPL85dB
Power5W
Impedance8Ω
F Low120Hz
F High20000Hz
Voice Coil14mm
Pricing & availability
Price definitionsVendor offers
1 vendorpartsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£11.39
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter50.0mm
Cutout Diameter46.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FRS 5 X - 8 Ohm
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity

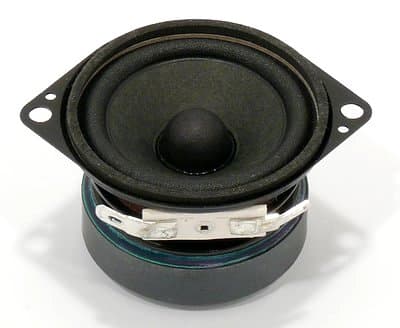

Visaton
FRS 5 XTS - 8 Ohm
2"
Xmax2mm0%
Qts0.70%
BL2.7Tm0%
Vas0.2L0%
Qes0.880%
64%
Similarity
£18.06

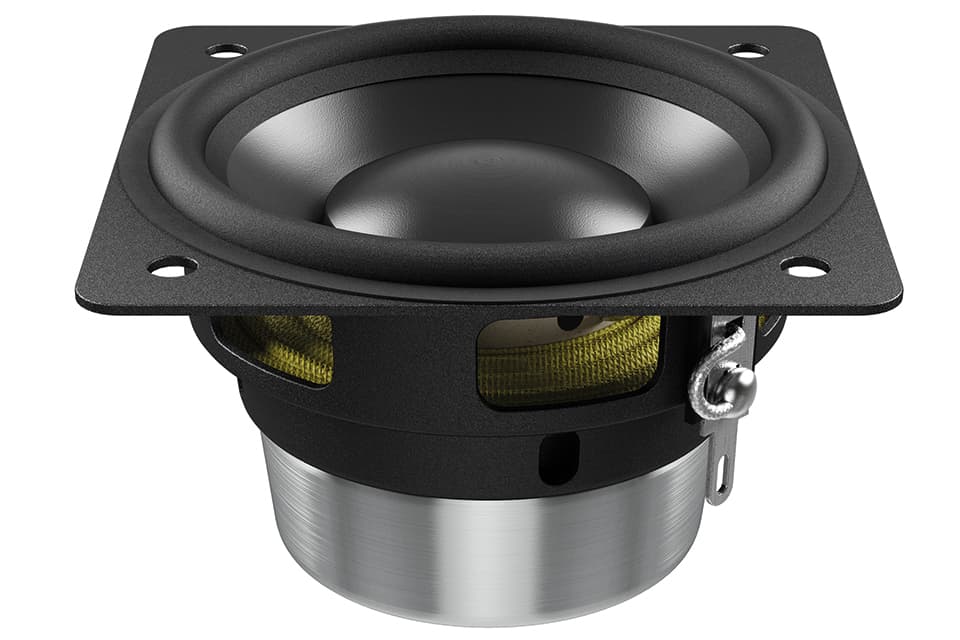

Lavoce
FSN021.02
2"
Xmax2.3mm+15%
Qts0.68-3%
BL3.4Tm+29%
Vas0.3L+30%
Qes0.77-12%
63%
Similarity
£14.46

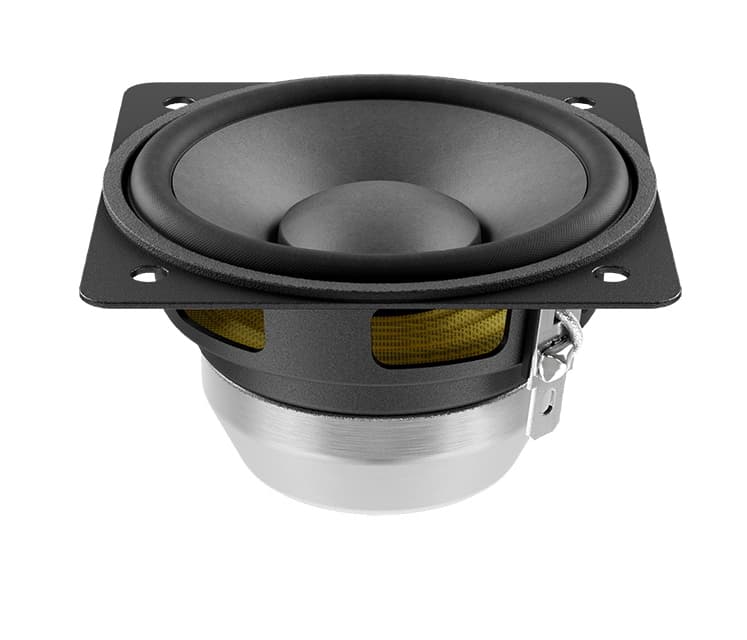

Lavoce
