LF DriverFRS series
Visaton
Visaton FRS 10 WP - 8 OHM
Visaton FRS 10 WP - 8 OHM is a 4" 8 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 190Hz, Qts 0.98, Vas 1.9L, Xmax 3mm, sensitivity 92.7dB, plus 17cm³ Vd and 170 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
25W
Sensitivity
92.7dB
90.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
170
Vented alignment
Vd
17cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence645 selected pixels of 1,150
T/S Parameters
Valid
Fs190Hz
Qts0.98
Qes1.12
Qms7.6
Vas1.9L
Re6.4Ω
Le0.40mH
BL4.3Tm
Sd57cm²
Mms3g
Xmax3.0mm
SPL93dB
Power25W
Impedance8Ω
F Low90Hz
F High19000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsVendor offers
1 vendorpartsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£46.93
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter100.0mm
Cutout Diameter92.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FRS 10 WP - 8 OHM
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
Visaton
FRS 10 WP
4"
Xmax3mm0%
Qts0.91-7%
BL3.8Tm-12%
Vas2L+5%
Qes1.02-9%
85%
Similarity
Visaton
FRS 10 WP - 4 OHM
4"
Xmax3mm0%
Qts0.91-7%
BL3.8Tm-12%
Vas2L+5%
Qes1.02-9%
70%
Similarity
£9.60
Dayton Audio
PCS115-4
4"
Xmax2.8mm-8%
Qts0.79-19%
BL3.6Tm-16%
Vas1.8L-7%
Qes1.05-6%
70%
Similarity
£16.00
FaitalPRO
4FE35
4"
Xmax2.7mm-9%
Qts0.83-15%
BL3.9Tm-9%
Vas2.4L+26%
Qes1.04-7%
69%
Similarity
£12.18
Lavoce
FSF041.00
4"
Xmax2.2mm-27%
Qts0.85-13%
BL4.3Tm-1%
Vas1.6L-17%
Qes1.07-4%
65%
Similarity

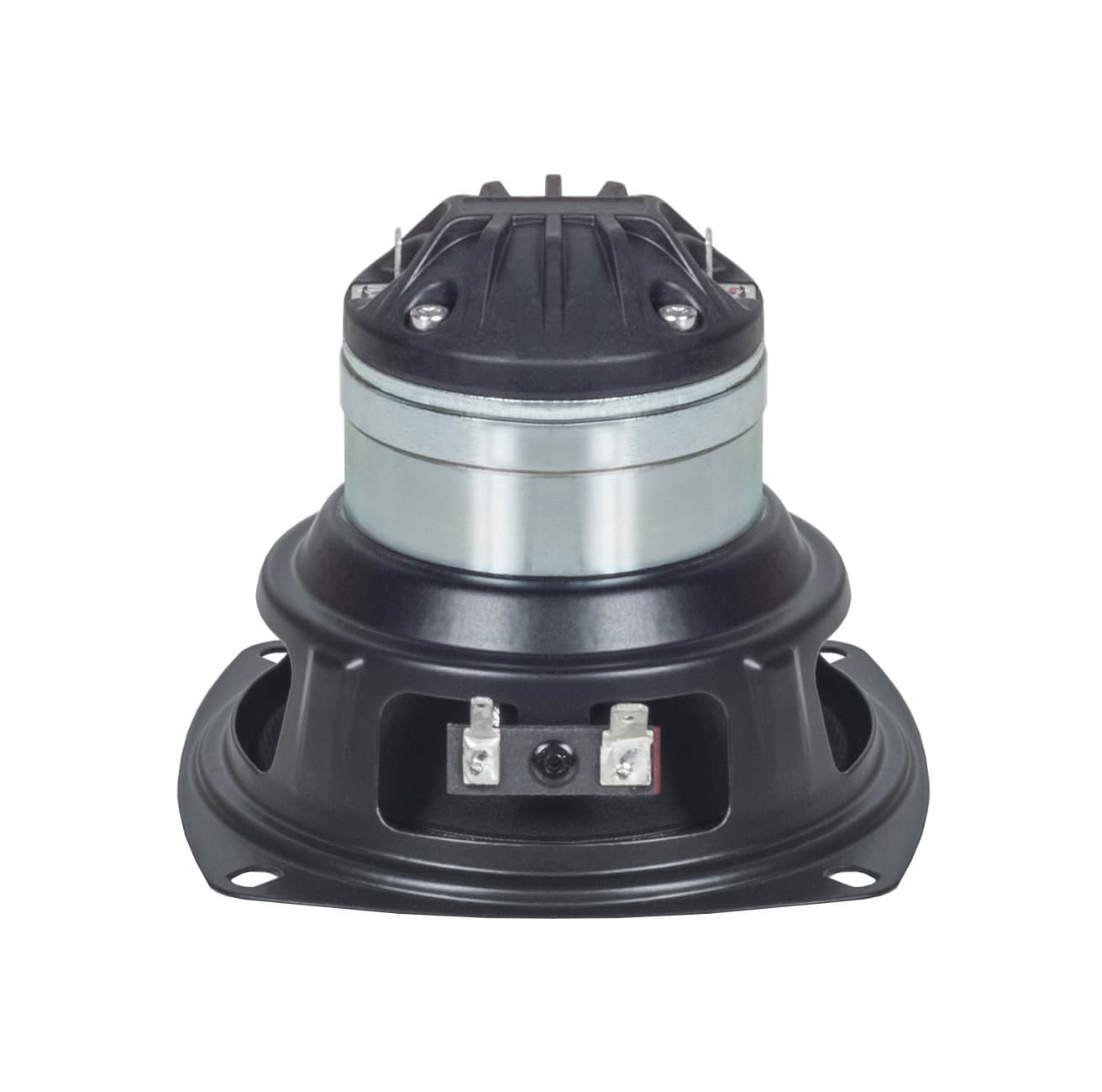

B&C
