Overview
LF DriverBG series
Visaton

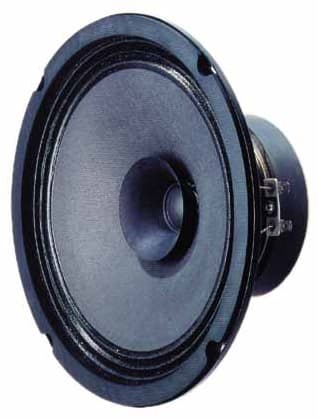

Visaton BG 20 - 8 OHM
Visaton BG 20 - 8 OHM is a 8" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 38Hz, Qts 0.44, Vas 110L, Xmax 6mm, sensitivity 92.8dB, plus 128cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
40W
Sensitivity
92.8dB
EBP
75
Either alignment
Vd
128cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence853 selected pixels of 1,559
T/S Parameters
Valid
Fs38Hz
Qts0.44
Qes0.51
Qms3.5
Vas110.0L
Re6.2Ω
Le0.80mH
BL6.1Tm
Sd214cm²
Mms10g
Xmax6.0mm
SPL93dB
Power40W
Impedance8Ω
F High18000Hz
Voice Coil25mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter200.0mm
Cutout Diameter184.0mm
