Overview
LF Driver
Tang Band

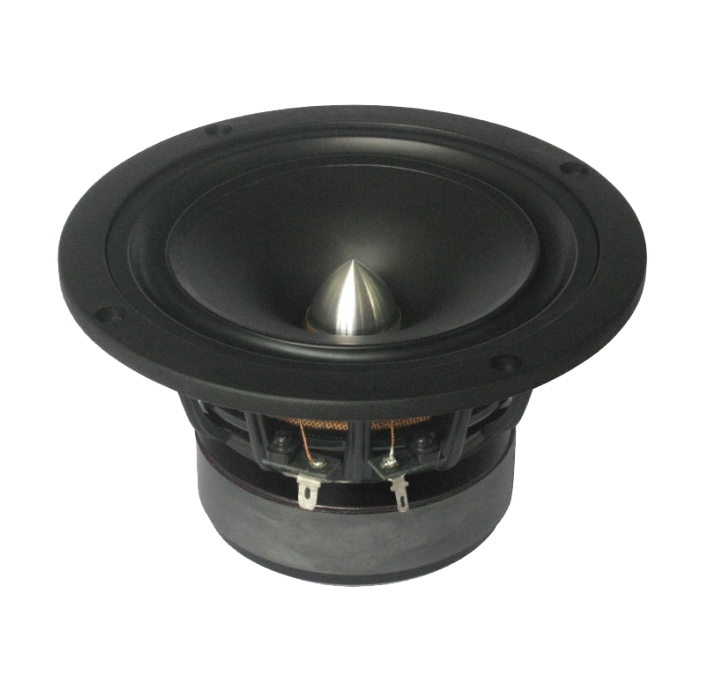

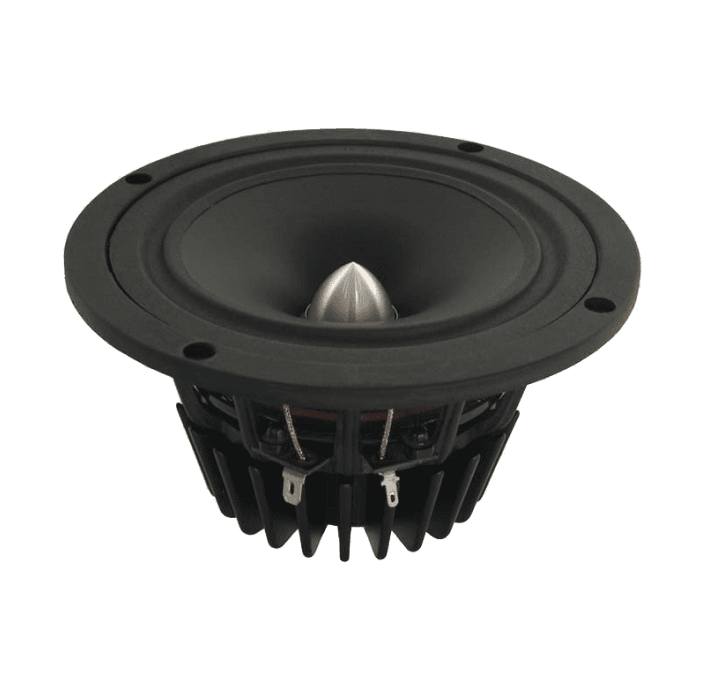

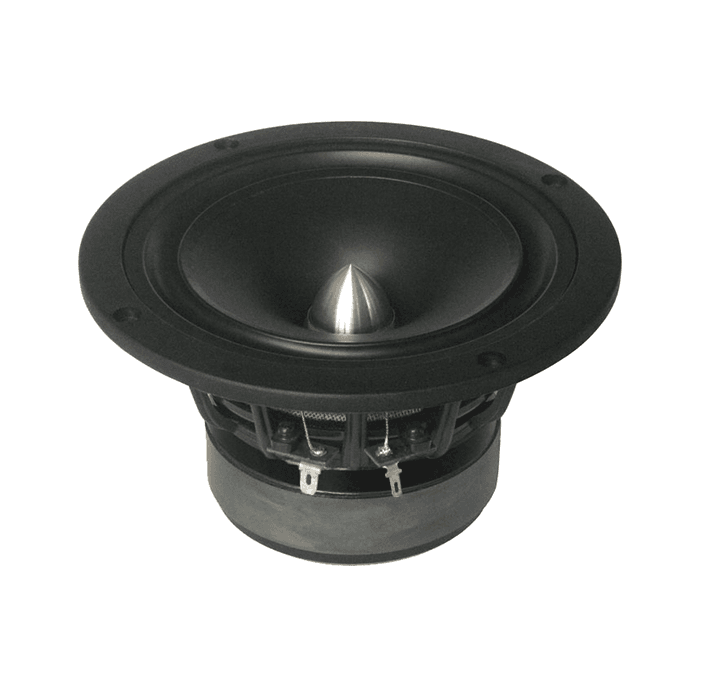

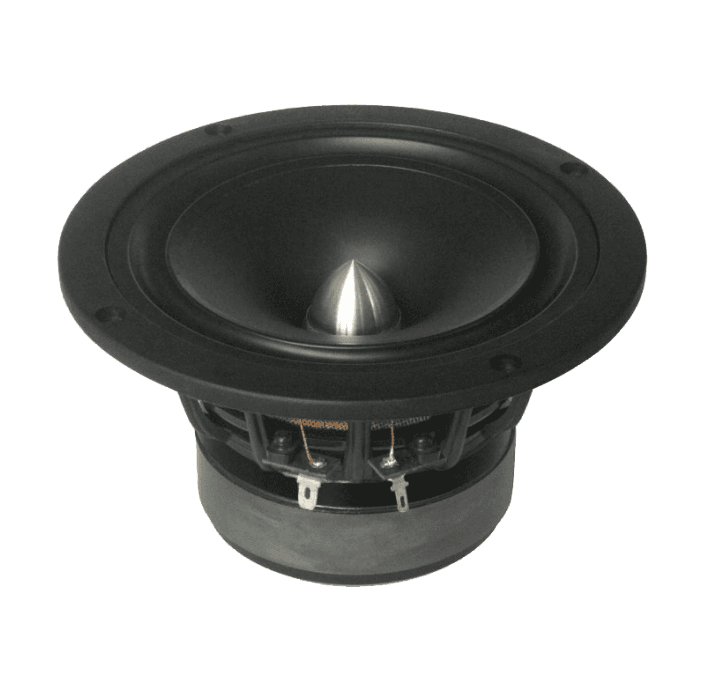

Tang Band W5-1880
Tang Band W5-1880 is a 5" 6.3 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 48Hz, Qts 0.32, Vas 26.5L, Xmax 5mm, sensitivity 90.9dB, plus 47cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
6.3Ω
RMS Power
30W
Sensitivity
90.9dB
88.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
126
Vented alignment
Vd
47cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence625 selected pixels of 1,205 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,093 selected pixels of 2,093
T/S Parameters
Valid
Fs48Hz
Qts0.32
Qes0.38
Qms1.8
Vas26.5L
Re6.3Ω
Le0.02mH
BL5.5Tm
Sd94cm²
Mms7g
Xmax5.0mm
SPL91dB
Power30W
Impedance6Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
