Overview
LF Driver
Tang Band

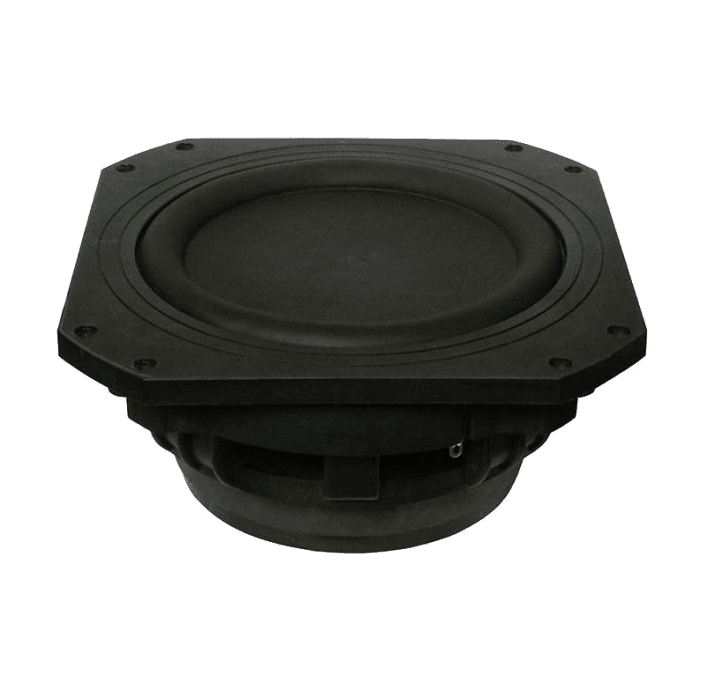

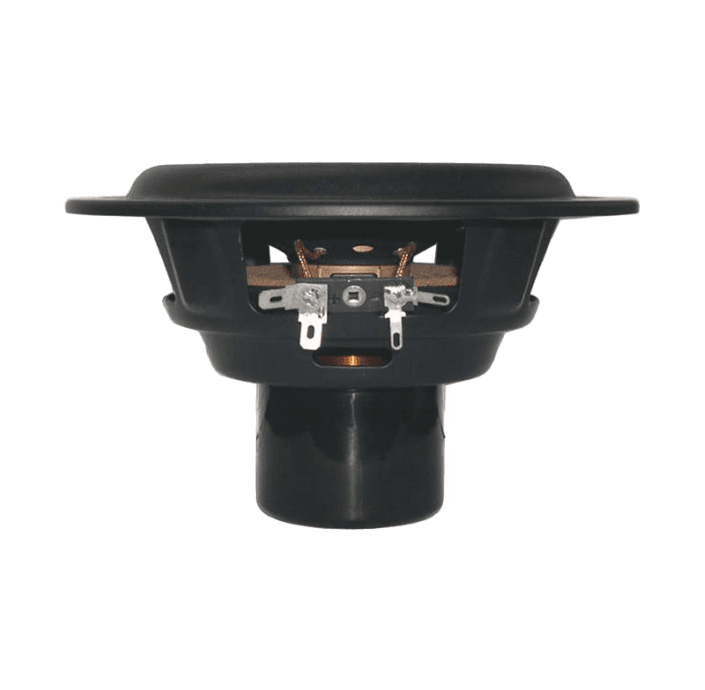

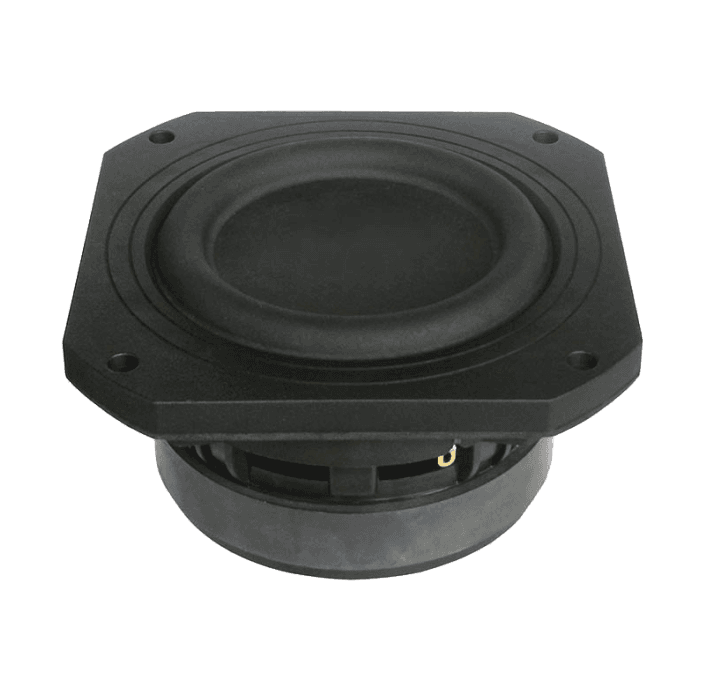

Tang Band W5-1138SM
Tang Band W5-1138SM is a 5" 3.4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 45Hz, Qts 0.50, Vas 4.9L, Xmax 9.3mm, sensitivity 80.6dB, plus 87cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
3.4Ω
RMS Power
30W
Sensitivity
80.6dB
82.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
73
Either alignment
Vd
87cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,077 selected pixels of 1,289 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,331 selected pixels of 2,425
T/S Parameters
Valid
Fs45Hz
Qts0.50
Qes0.62
Qms2.6
Vas4.9L
Re3.4Ω
Le0.17mH
BL6.6Tm
Sd94cm²
Mms25g
Xmax9.3mm
SPL81dB
Power30W
Impedance3Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
