Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing RMS power
Oberton DISCONTINUED PRODUCT 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverDiscontinued series
Oberton
Oberton DISCONTINUED PRODUCT
Oberton DISCONTINUED PRODUCT is a 15" 8 ohm LF driver. The validated T/S data includes Fs 40Hz, Qts 0.31, Vas 108.5L, Xmax 12mm, sensitivity 95.3dB, plus 996cm³ Vd and 124 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
Sensitivity
95.3dB
100.0dBmanufacturer; using T/S-derived value (4.7dB delta).
EBP
124
Vented alignment
Vd
996cm³
T/S Parameters
Valid
Fs40Hz
Qts0.31
Qes0.32
Qms7.8
Vas108.5L
Re5.2Ω
Le1.36mH
BL23.9Tm
Sd830cm²
Mms142g
Xmax12.0mm
SPL95dB
Impedance8Ω
Min Impedance6.5Ω
F Low39Hz
F High2000Hz
Voice Coil100mm
Flux Density1.25T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

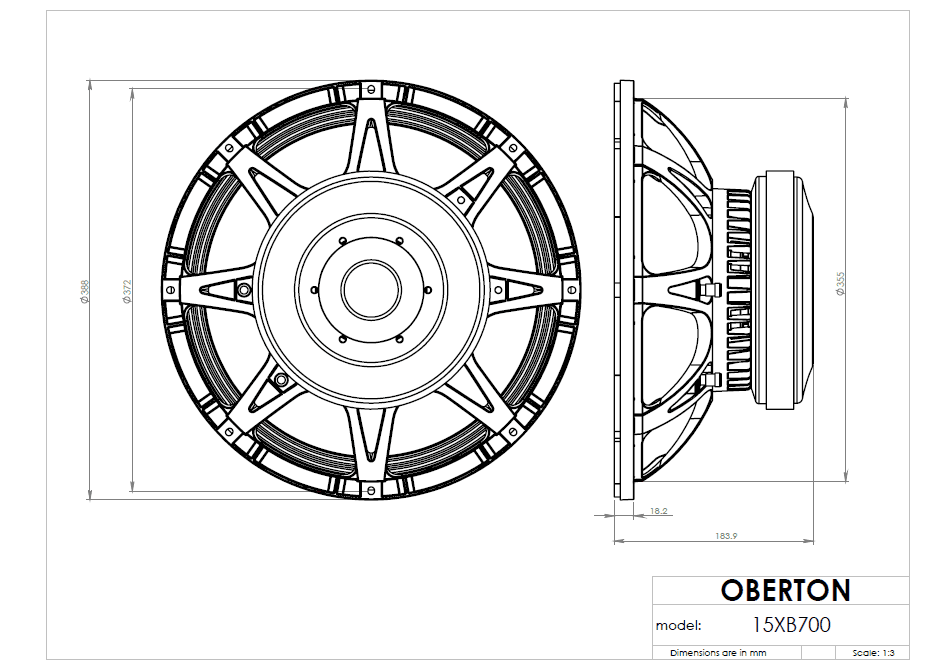

Dimensions & Physical
Weight12.8kg
Diameter388.0mm
Overall Depth186.5mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
DISCONTINUED PRODUCT
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Oberton
15XB1201
15"
Xmax12mm0%
Qts0.310%
BL23.9Tm0%
Vas108.5L0%
Qes0.320%
94%
Similarity
£293.57
FaitalPRO
15HP1060
15"
Xmax12.4mm+4%
Qts0.31+1%
BL24.8Tm+4%
Vas100.3L-8%
Qes0.320%
93%
Similarity
Oberton
15NXB1201
15"
Xmax12mm0%
Qts0.32+5%
BL23.6Tm-1%
Vas111.9L+3%
Qes0.34+5%
91%
Similarity
Celestion
CF1540HD
15"
Xmax10.5mm-12%
Qts0.3-1%
BL24.4Tm+2%
Vas108.3L0%
Qes0.32+1%
91%
Similarity
Monacor
CF1540HD/8
15"
Xmax10.5mm-12%
Qts0.3-1%
BL24.4Tm+2%
Vas108.3L0%
Qes0.32+1%
91%
Similarity
£329.84
B&C
15SW100
15"
Xmax12.5mm+4%
Qts0.31+1%
BL25.6Tm+7%
Vas110L+1%
Qes0.34+6%
90%
Similarity
£246.65
B&C
15TBW100
15"
Xmax12mm0%
Qts0.31+1%
BL26.4Tm+10%
Vas96L-12%
Qes0.33+3%
87%
Similarity
£202.50
Lavoce
WAF154.00
15"
Xmax12.1mm+1%
Qts0.29-6%
BL27.4Tm+14%
Vas109.7L+1%
Qes0.31-3%
84%
Similarity
£272.34
Beyma
15LEX1600FE
15"
Xmax13mm+8%
Qts0.33+7%
BL25.8Tm+8%
Vas106L-2%
Qes0.34+6%
84%
Similarity
Beyma
15LEX1200ND
15"
Xmax11mm-8%
Qts0.3-3%
BL26.4Tm+10%
Vas127L+17%
Qes0.320%
84%
Similarity
£264.30
FaitalPRO
15HP1030
15"
Xmax12.4mm+4%
Qts0.34+10%
BL24.3Tm+1%
Vas95L-12%
Qes0.35+9%
83%
Similarity
£249.00
B&C
15TBW100
15"
Xmax12mm0%
Qts0.28-9%
BL22.6Tm-6%
Vas88L-19%
Qes0.3-7%
